418 COG
6. Also includes four 146GB HDDs, four short-wave SFP modules, four DS4000 Host Bus Adapters and four
5m LC-LC Fibre Channel cables.
7. Also includes two short-wave SFP modules, two DS4000 Host Bus Adapters and two 5m LC-LC Fibre
Channel cables.
8. Also includes four short-wave SFP modules, four DS4000 Host Bus Adapters and four 5m LC-LC Fibre
Channel cables.
Notes:
1.
Adding host and expansion ports requires upgrading to dual controllers.
2. A maximum of two expansion units can be connected to the DS400. Additional expansion ports provide
redundancy and workload distribution across SCSI channels.
Table 104. Additional Features
1700-1RS 1700-1ES 1700-2RD 1700-2ED
Host Partitions (std/max) - - - -
Host Ports (std/max) 2/4 1 2/4 1 4/4 4/4
Max Redundant Host Connections - - 2 2
Expansion Ports (std/max) 2/4 1, 2 2/4 1, 2 4/4 2 4/4 2
Redundant Drive Loops (std/max) - - 2/2 2/2
Note: DS400 Supports short-wave connections on host and expansion ports. Long-wave connections are supported
on host ports only.

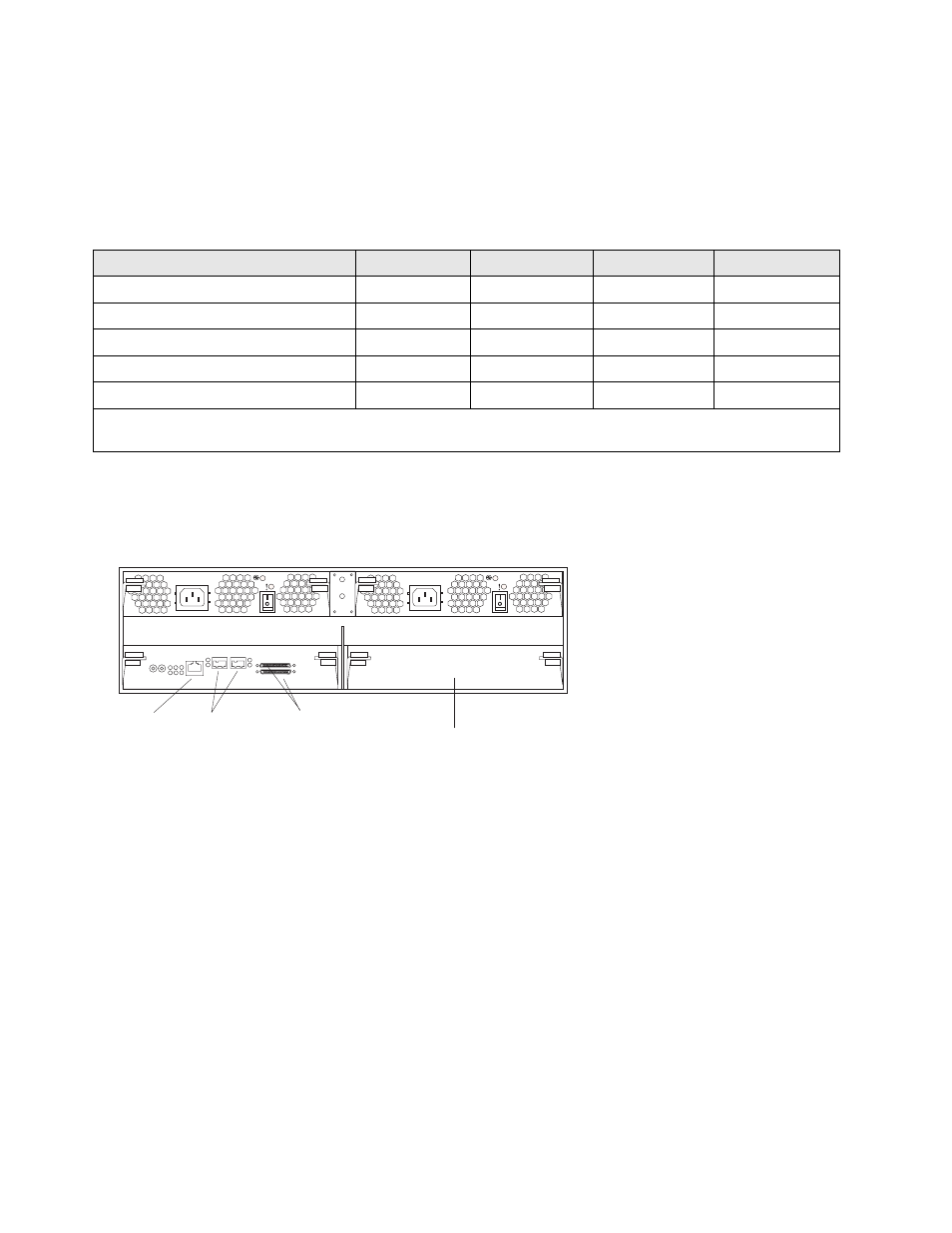

RAID controller
filler panel
(Side B)
Management
Connector Host Ports
(1 and 2) Expansion Ports
(1 and 2)
