Chapter 11. xSeries 346
147
Notes:
1.
Installation may require removing standard devices.
2.
These HDDs are supported on machine type 8840-E2Y.
3.
All models ship standard with an 8X Max DVD-ROM drive.
4.
An optional SCSI, RAID or Fibre controller is required in order to attach to the system.
Notes:
1.
An optional tape drive enablement kit which supports one tape drive can be installed which occupies
both bays 5 and 6.

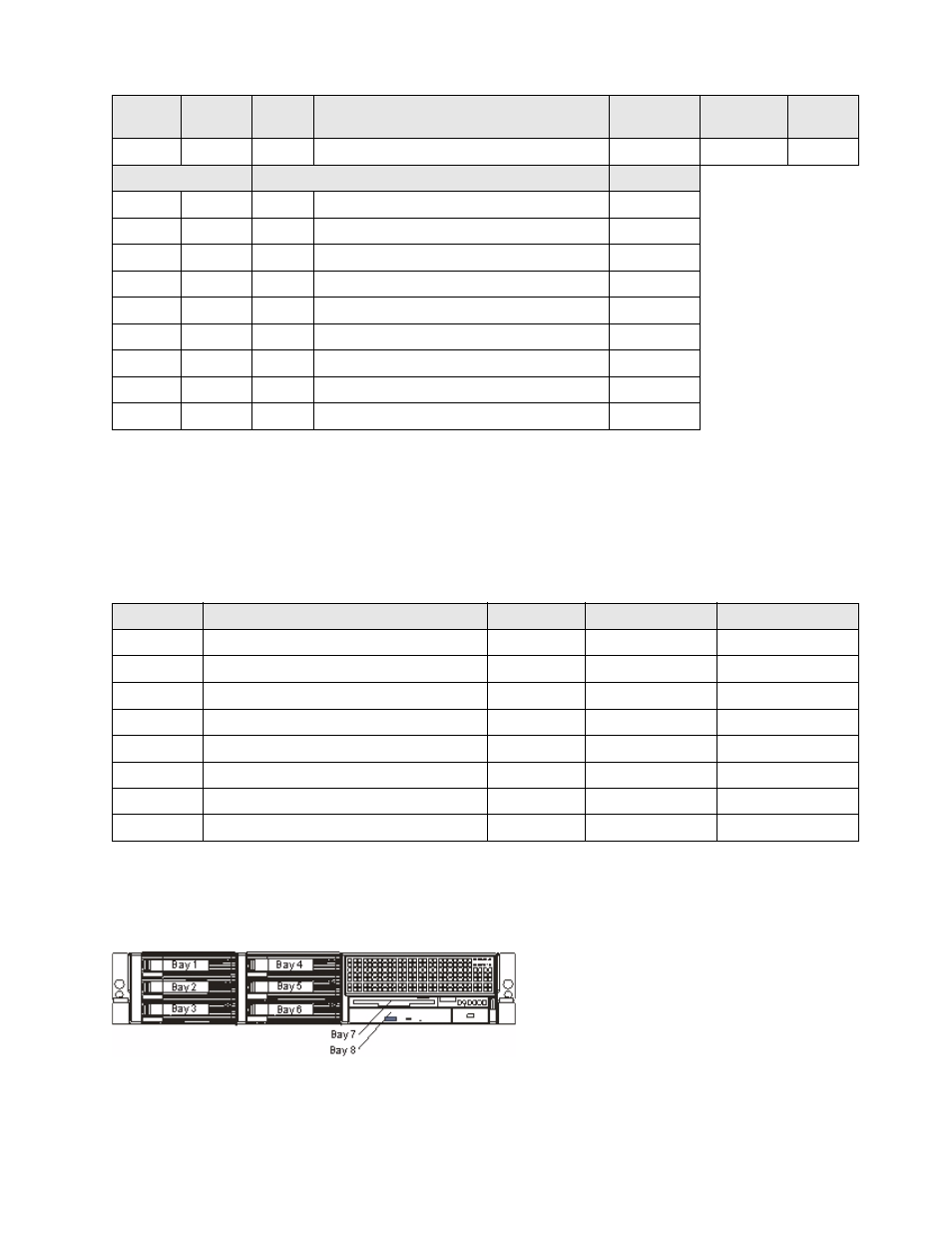

Figure 29. xSeries 346 front view
External Storage Expansion Units
4
Form Factor
-
17331RU
-
EXP400 Storage Expansion Unit
Rack (3U)
-
171010U
-
FAStT EXP100 Storage Expansion Unit
Rack (3U)
-
17401RU
-
FAStT EXP700 Storage Expansion Unit
Rack (3U)
-
1724100
-
FAStT100 Storage Server
Rack (3U)
-
172260U
-
FAStT600 Storage Server
Rack (3U)
-
24P8215
-
FAStT600 Turbo Storage Server
Rack (3U)
-
17226LU
-
FAStT600 Entry Storage Server
Rack (3U)
-
17011RS
-
TotalStorage DS300 - Single Controller
Rack (3U)
-
17001RS
-
TotalStorage DS400 - Single Controller
Rack (3U)
Table 26. Bay Usage
Bay
Form Factor
Height
Front Access
Usage
1
89mm (3.5in)
SSL
Yes
HDD
2
89mm (3.5in)
SSL
Yes
HDD
3
89mm (3.5in)
SSL
Yes
HDD
4
89mm (3.5in)
SSL
Yes
HDD
5
89mm (3.5in)
SSL
Yes
HDD/Tape Kit
1
6
89mm (3.5in)
SSL
Yes
HDD/Tape Kit
1
7
89mm (3.5in)
SSL
Yes
Std. FDD
8
133mm (5.25in)
Ultra-Slim
Yes
Std. Optical
SBB
Number
Option
Number
Feature
Code
Description
Height
Bays
Supported
1
Max Qty
