Chapter 11. xSeries 346 149
Notes:
1.
xSeries 346 does not have any Active-PCI slots.
2. Supported for external attachment only and not for internal HDDs. A second controller is only supported
if the integrated SCSI controller is disabled or a ServeRAID-7K is installed.
3. Installs into a dedicated slot. Does not consume a PCI slot. Quantity one allowed.
4. A second controller is only supported if the integrated SCSI controller is disabled or a ServeRAID-7K is
installed.
5. Support is for tape only. Tape support requires the PCI slot in which the adapter is installed be defined as
the boot device slot via the BIOS setup utility.
6. Only one card is allowed in slot 3 or 4 unless 71P8653 is selected, then a maximum of two may be
populated in slots 3 & 4. Can only be pop in slot 3 & 4 when PCI-X Riser SBB 26K5074 also be installed.
7. See Fibre Channel Solutions Overview section for additional configuration information.
8. The option number 39Y6093 contains both a standard (ATX) bracket and a low-profile bracket and
therefore is supported in all slots, when using the appropriate bracket. The SBB number 73P4205 contains
a standard (ATX) bracket only and therefore is supported in slots 3 and 4 only.
9. PCI-X Riser SBB 26K5074 must also be installed.
10. Can be installed in slot 1 & 2 with 2U bracket.
11. The 2U PCI Express Riser Card is not included as standard equipment.

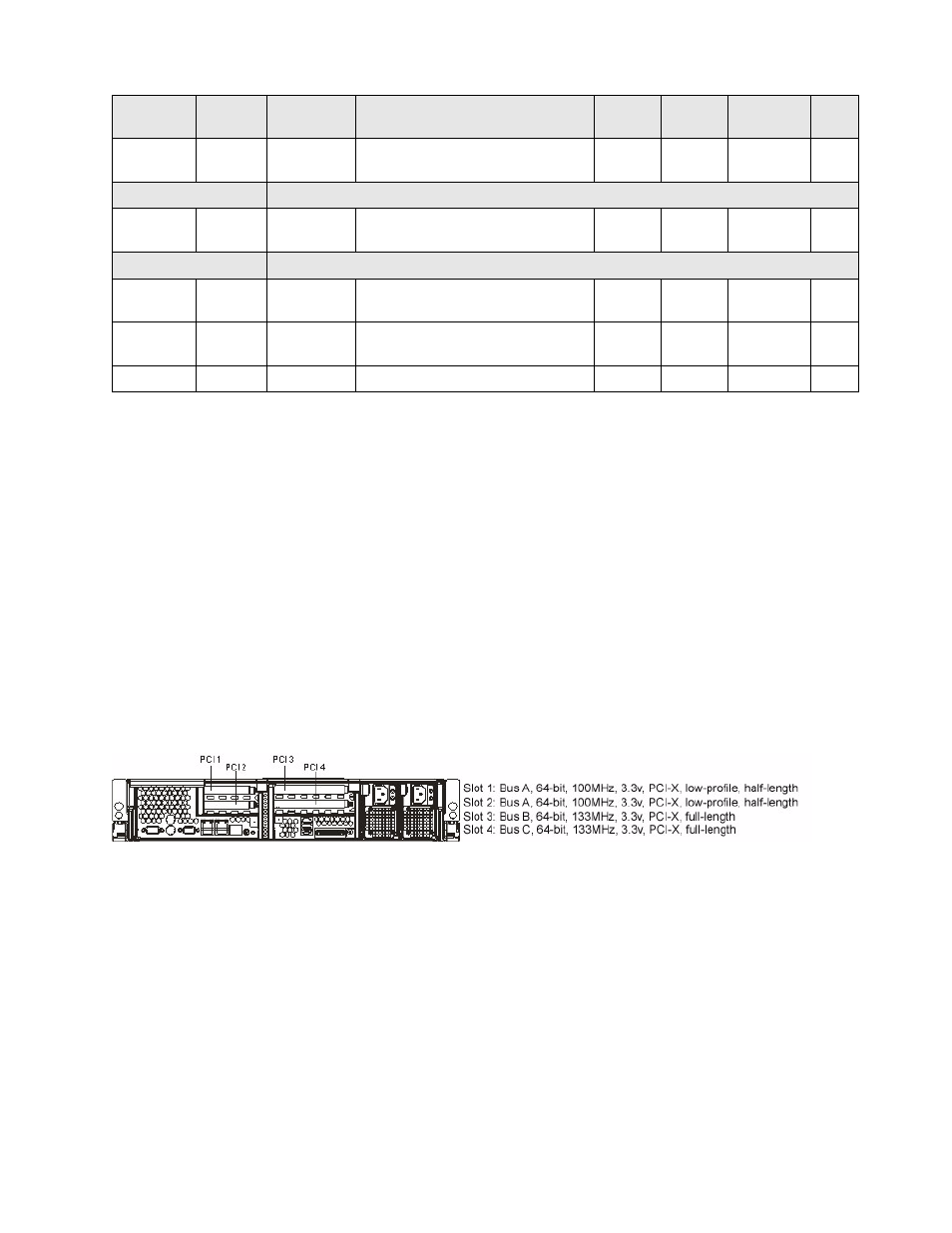

Figure 30. xSeries 346 rear view
73P4205 39Y6093 1511 NetXtreme 1000 T Dual Port
Ethernet Adapter 2 - - 3, 4 9 X
System Management
13M7288 73P9341 1603 Remote Supervisor Adapter II
Slimline
Half - - -
Other I/O
- 41Y8901 - 2U PCI Riser Card for PCI Express
Capability
11
- - - -
- 1519200 - Integrated xSeries Adapter for
iSeries - - - -
- 31P7201 - V.90 Data/Fax Soft Modem - - - -
SBB
Number
Option
Number
Feature
Code Description
Adapter
Length
PCI
Support
Slots
Supported
Hot
Plug 1
