Chapter 10. xSeries 336
133
Notes:
1.
Installation may require removing standard devices.
2.
Mixing SATA and SCSI HDDs is not supported.
3.
These HDDs are offered for machine type 8837-E3Y.
4.
Small Form Factor (SFF) HDDs are 2.5in wide and cannot be mixed with the 3.5in SSL HDDs.
5.
See the At-A-Glance section for models that support SFF hard drives.
6.
SFF SCSI HDD models do not support an optical drive. 3.5in SCSI HDD and SATA models ship standard
with an 8X Max DVD-ROM drive.
7.
An optional SCSI, RAID or Fibre controller is required in order to attach to the system.

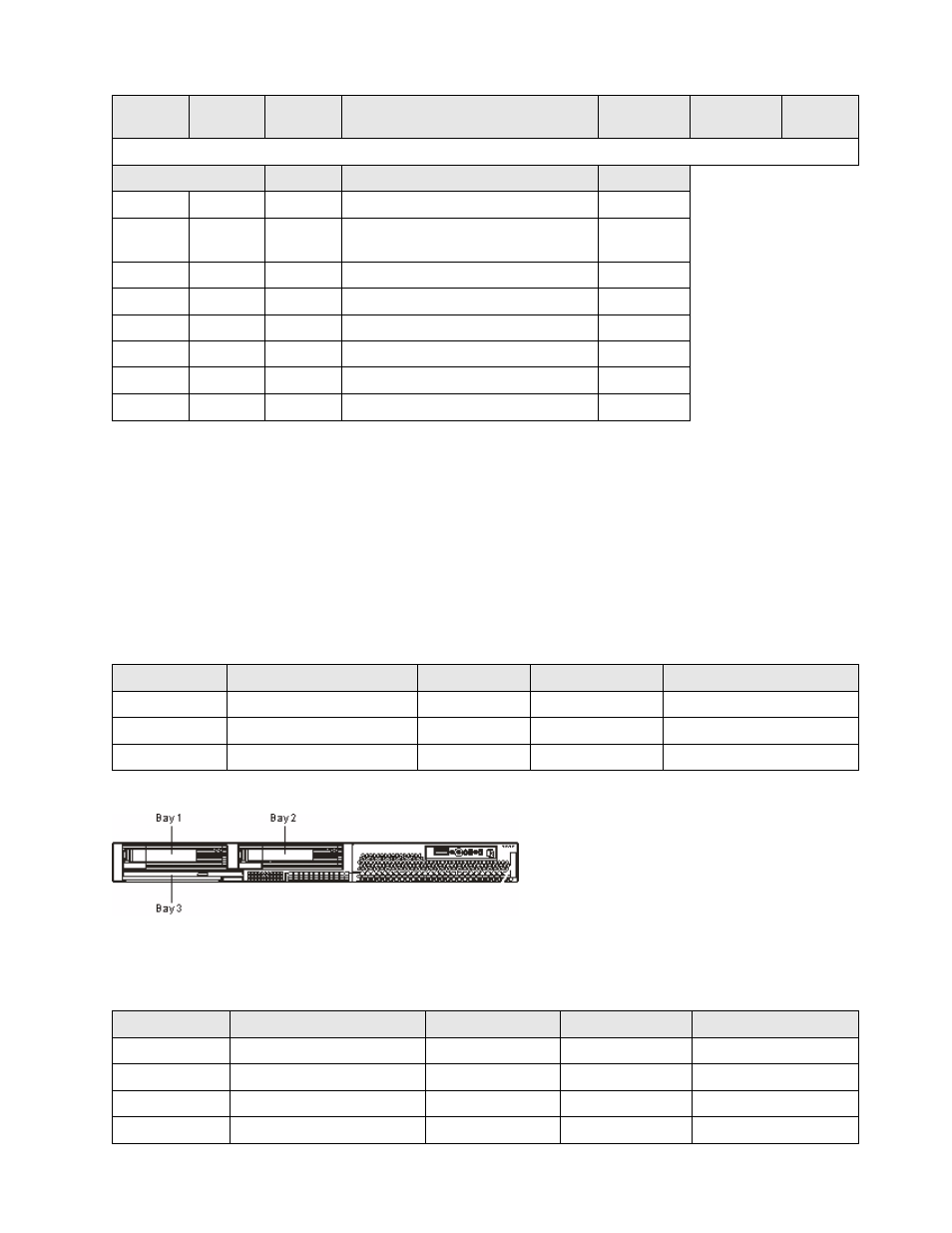

Figure 25. xSeries 336 Front View
External Storage Expansion Units
Form Factor
-
17331RU
-
EXP400 Storage Expansion Unit
Rack (3U)
-
17332RX
-
EXP400 Storage Expansion Unit (DC
Power)
Rack (3U)
-
171010U
-
FAStT EXP100 Storage Expansion Unit
Rack (3U)
-
17401RU
-
FAStT EXP700 Storage Expansion Unit
Rack (3U)
-
1724100
-
FAStT100 Storage Server
Rack (3U)
-
172260U
-
FAStT600 Storage Server
Rack (3U)
-
24P8215
-
FAStT600 Turbo Storage Server
Rack (3U)
-
17226LU
-
FAStT600 Entry Storage Server
Rack (3U)
SATA and 3.5in SCSI HDD Models
Bay
Form Factor
Height
Front Access
Usage
1
89mm (3.5in)
SSL
Yes
HDD
2
89mm (3.5in)
SSL
Yes
HDD
3
133mm (5.25in)
Ultra-Slim
Yes
Std. Optical
2.5in SCSI HDD Models
Bay
Form Factor
Height
Front Access
Usage
1
63.5mm (2.5in)
SFF
Yes
HDD
2
63.5mm (2.5in)
SFF
Yes
HDD
3
63.5mm (2.5in)
SFF
Yes
HDD
4
63.5mm (2.5in)
SFF
Yes
HDD
SBB
Number
Option
Number
Feature
Code
Description
Height
Bays
Supported
1
Max Qty
