HS20 - 7981 I/O options
Notes:
1.
Quantity one expansion card is supported inside the blade itself. Installation of a StFF (standard form
factor) card will physically prevent installation of a second HDD.
2.
Requires appropriate I/O modules to be installed in the BladeCenter chassis. Refer to ‘Blade Server
Storage and I/O Expansion’ for appropriate I/O module options and configuration information.
3.
Requires an OPM I/O module to be installed in BladeCenter I/O module bay 3.

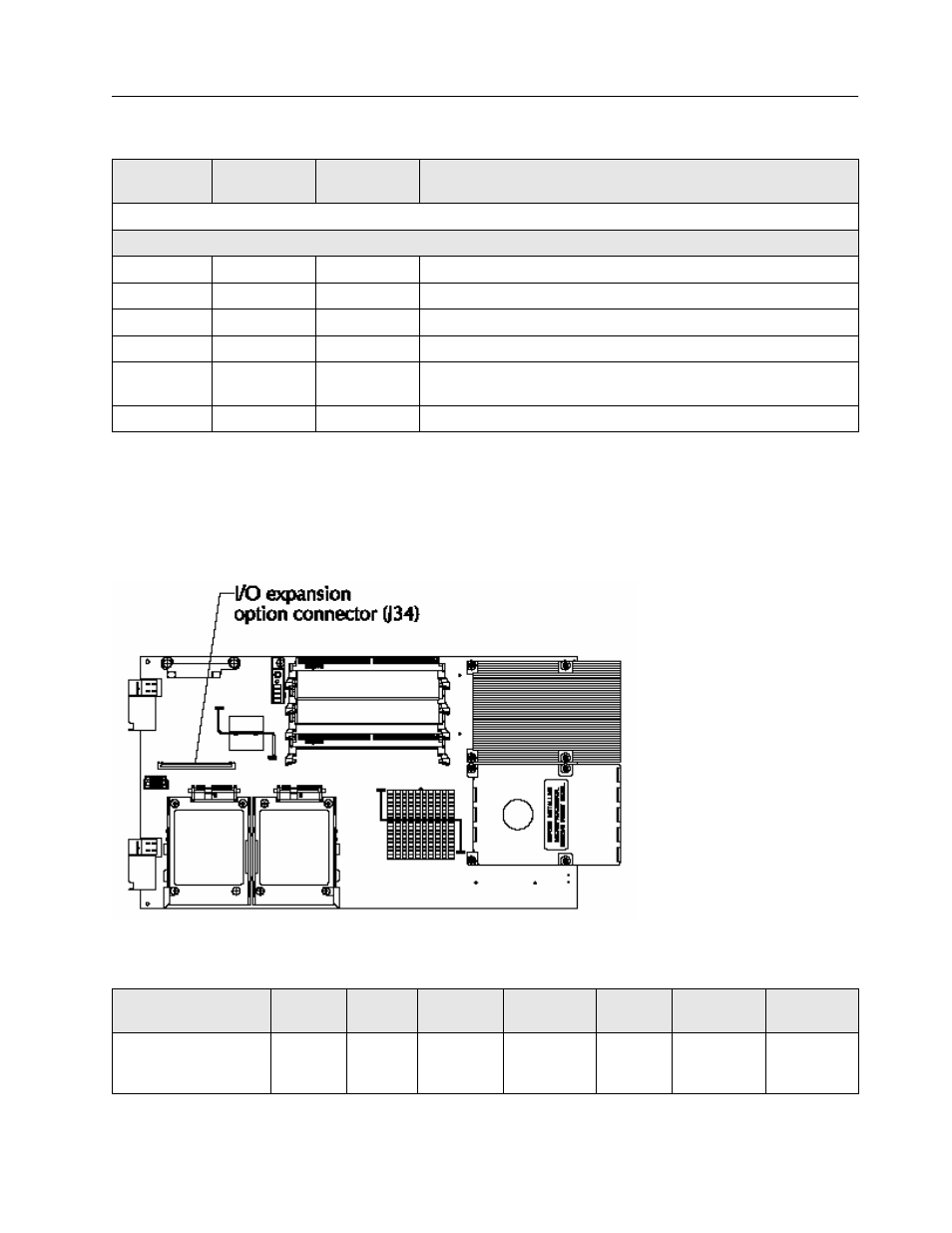

Figure 85. HS20 - 7981 system board
SBB
Number
Option
Number
Feature
Code
Description
1,2
Blade Server Expansion Cards
26K4837
73P6000
1546
Myricom® Myrinet® Expansion Card for BladeCenter
3
26K4843
39R8624
1548
IBM BladeCenter® SFF Gigabit Ethernet Expansion Card
26K4844
26K4841
1549
IBM BladeCenter® SFF Fibre Channel Expansion Card
26R0891
26R0890
1577
Qlogic® 4GB Fibre Channel SFF HBA
39Y9185
39Y9186
2925
Emulex® 4Gb SFF Fibre Channel Expansion Card for IBM
BladeCenter®
39Y9116
32R1923
1458
QLogic® iSCSI Expansion Card for BladeCenter
Slot/Device
Type
Bus
Voltage (V)
Frequency
MHz
Data Path
Active PCI?
(Hot Swap)
Slot Length
Blade Server Slot 1
PCI-X
1
3
133
32
No
BladeCenter
Unique
Form Factor
