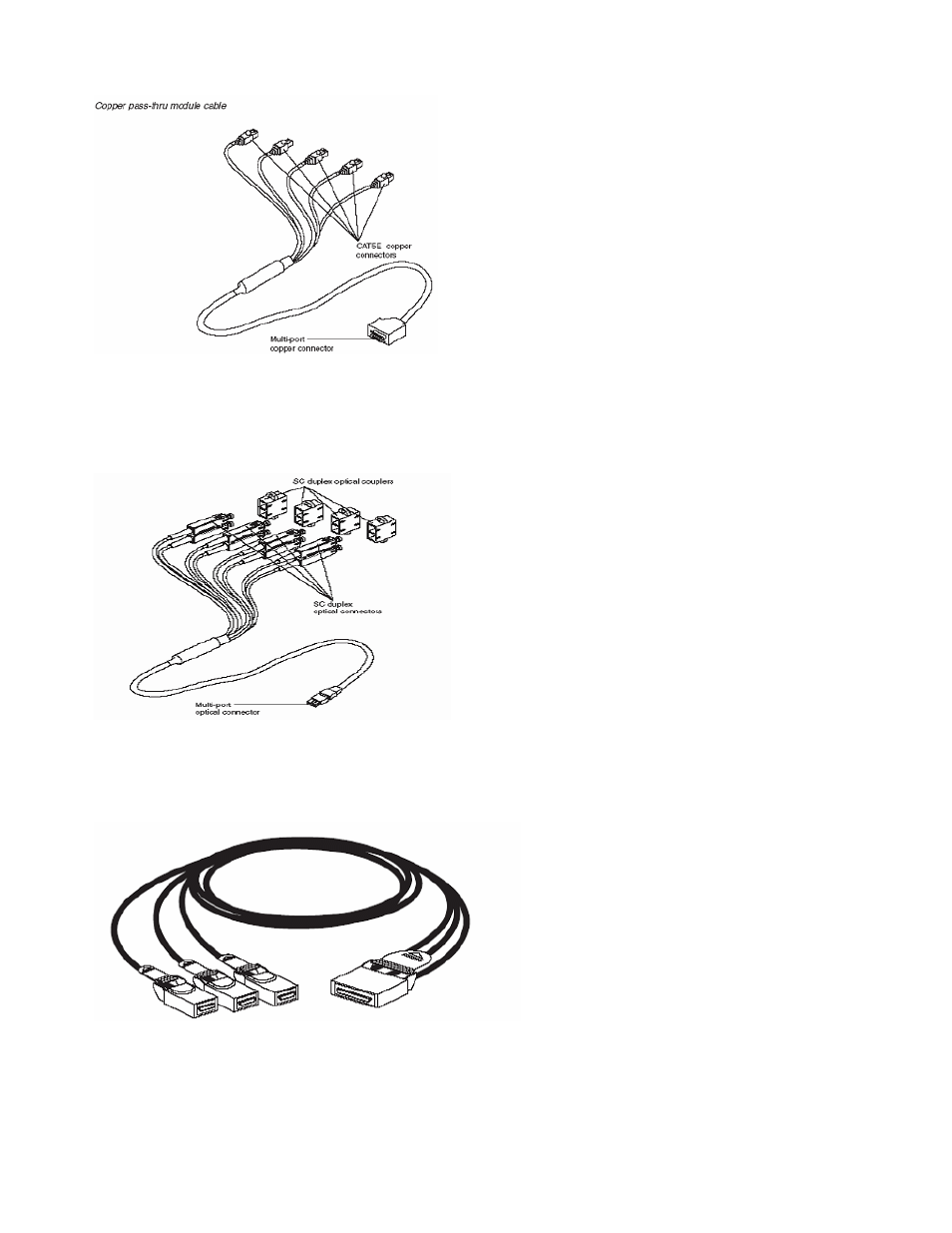

Figure 76.
IBM BladeCenter Copper Pass-thru Module Cable
This IBM BladeCenter option provides connection between the copper pass-thru module and an external
environment. This cable allows up to five copper connections to blade servers. One of these cables included
with each copper pass-thru module. Cable is 3.1m (9.4ft) in length.
Figure 77.
IBM BladeCenter Optical Pass-thru Module SC Cable (1.5M)
This cable provides connection between the Optical Pass-thru Module and an external environment. This
1.5m cable presents four SC connections.
Figure 78. InfiniBand 12x to (3) 4x Cable 3 meter for IBM BladeCenter
