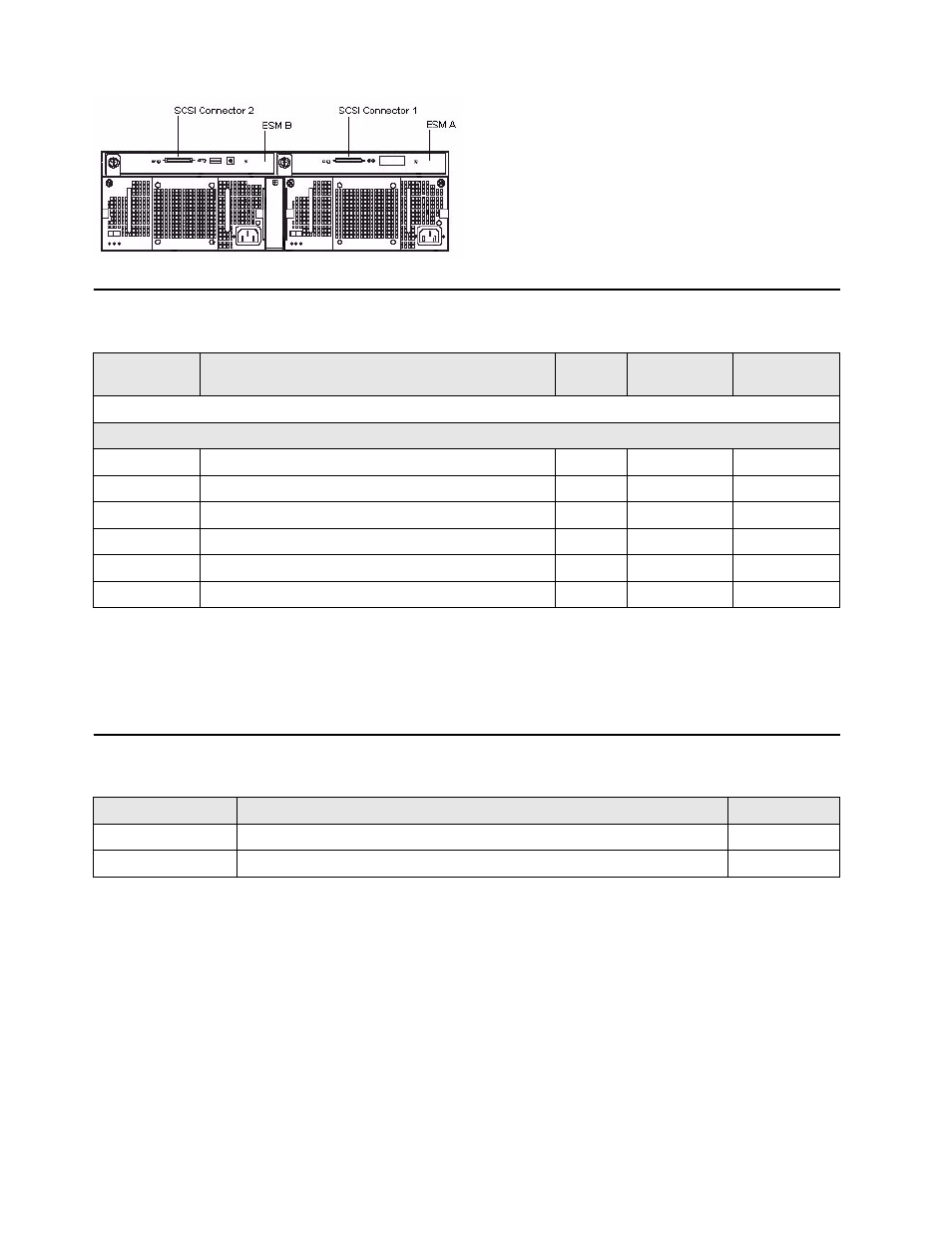

EXP400 hard disk drive (HDD) storage options
Notes:
1.
EXP400 Storage Expansion Unit ships with 14 slim-line hot-swap bays which can be configured as a
single bus, two independent buses or a twintailed single bus.
2.
Twintailing reduces the maximum number of HDDs on a single bus to 13.
EXP400 other options
Notes:
1.
The optional ESM allows for twintailing, clustering, and is required for redundant connections to
supported dual-controller disk systems.
Option
Number
Description
Height
Bays
Supported
1
Maximum
Quantity
2
Ultra320 HDDs
40K1023
73.4GB 10K rpm Ultra320 SCSI HDD
SSL
1 ... 14
14
40K1024
146.8GB 10K rpm Ultra320 SCSI HDD
SSL
1 ... 14
14
40K1025
300GB 10K rpm Ultra320 SCSI HDD
SSL
1 ... 14
14
40K1026
36.4GB 15K rpm Ultra320 SCSI HDD
SSL
1 ... 14
14
40K1027
73.4GB 15K rpm Ultra320 SCSI HDD
SSL
1 ... 14
14
40K1028
146.8 15K rpm Ultra320 SCSI HDD
SSL
1 ... 14
14
Option Number
Description
Max Qty
59P5018
SCSI Bus Expander and Enclosure Services Module (ESM)
1
1
09N7296
Rack-To-Tower Conversion Kit
1
