7-4

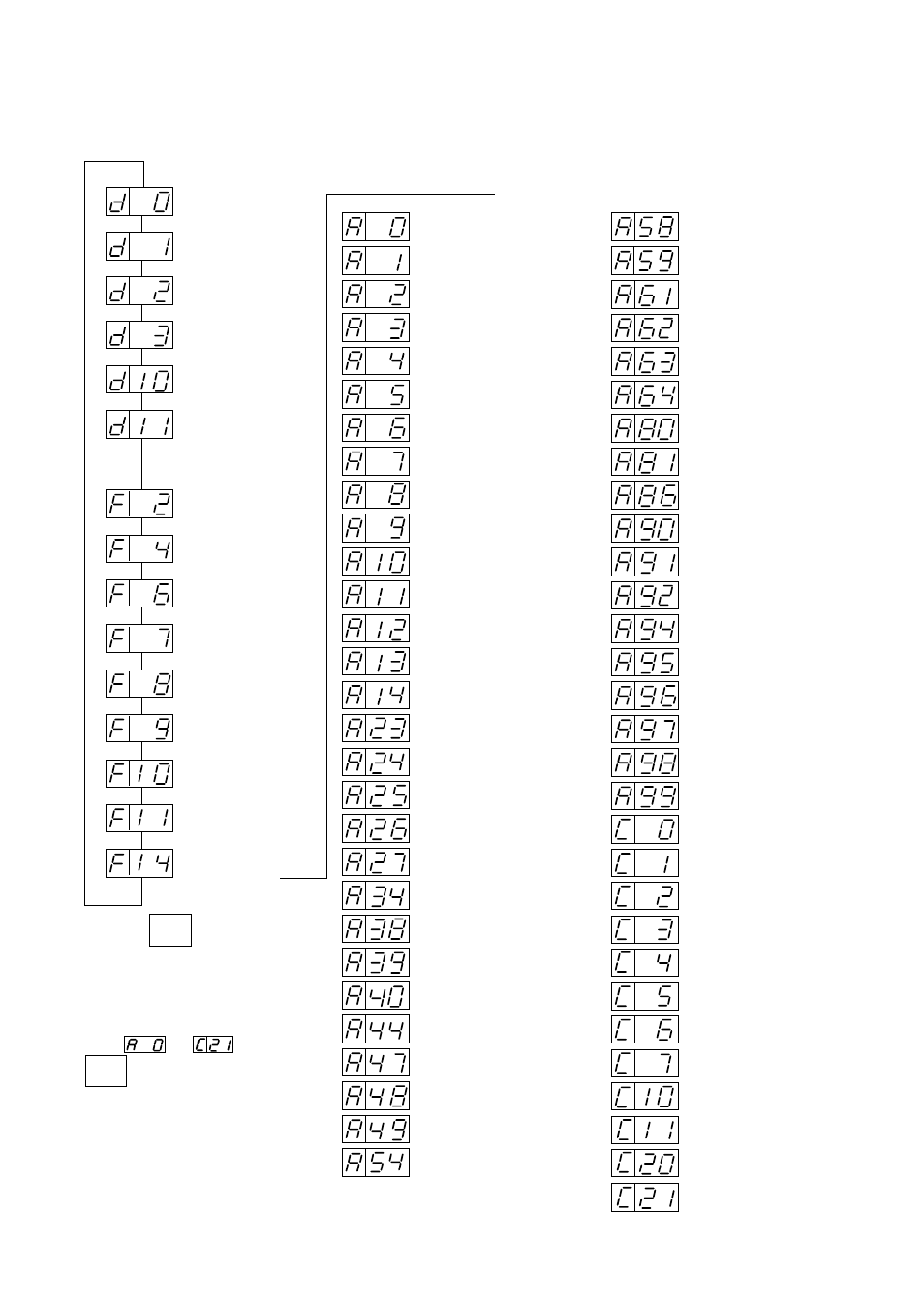

7.5 Transition of Each Code
FUNC
➤
➤ ➤
➤
➤
➤ ➤
➤ ➤
➤ ➤ ➤
➤ ➤ ➤
➤ ➤
➤ ➤
➤ ➤
➤ ➤
➤ ➤
➤ ➤
Output frequency
monitor
Motor revolution
speed monitor
Output current
monitor
Trip monitor
Trip history
monitor
Output frequency
setting
Running direction
setting
Acceleration time
setting
Deceleration time
setting
Manual torque boost
setting
Run command,
frequency command
Analog meter
adjustment
Motor receiving
voltage
Extension function
setting
When the key is pressed once
to set the extension function, the
screen is changed to the extension
function code selection screen.
When a code is selected from the
codes to and the
key is pressed, the screen is
changed to the relevant extension
function settig screen.
To extension function code setting
Control method setting
Motor capacity setting
Motor poles setting
Speed control response
constant setting
Start frequency adjustment
Maximum frequency
limiter setting
Minimum frequency
limiter setting
Jump frequency setting 1
Jump frequency setting 2
Jump frequency setting 3
Carrier frequency setting
Multispeed first
speed setting
Multispeed second
speed setting
Multispeed third
speed setting
Electronic thermal level
adjustment
Electronic thermal
characteristic selection
External frequency setting
start
External frequency setting
end
Instantaneous restart
selection
Dynamic braking usage
ratio
Optional arrival frequency
for acceleration
Optional arrival frequency
for deceleration
Monitor signal selection
Analog input selection
Frequency arrival signal
output method
Restarting after FRS
signal selection
Reduced voltage soft
start setting
Jogging frequency
setting
Base frequency
setting
Frequency command/
output frequency adjust
(O
−
L terminal)
Maximum frequency
selection
Input terminal setting 1
Input terminal setting 2
Input terminal setting 3
Input termianl setting 4
Input terminal setting 5
Input terminal setting 6
Input terminal setting 7
Input terminal setting 8
Output terminal setting 11
Output terminal setting 12
Input terminal a and b
contact setting
Output terminal a and b
contact setting
➤
FUNC
➤
➤
Frequency command sampling
frequency setting
Running mode
selection
Maximum frequency
setting
Frequency command/
output frequency adjust
(OI
−
L terminal)
➤
➤
Frequency converted
value monitor
Frequency converted
value setting
Motor pole number setting
for motor speed monitor
Selection of reset
terminal performance
P gain setting of PID
funciton
I gain setting of PID
function
D gain setting of PID
funciton
Selection of PID
funciton
Setting method of PID
reference value
Setting of PID
reference value
Auto tuning setting
Motor data selection
Ro-To option selection
