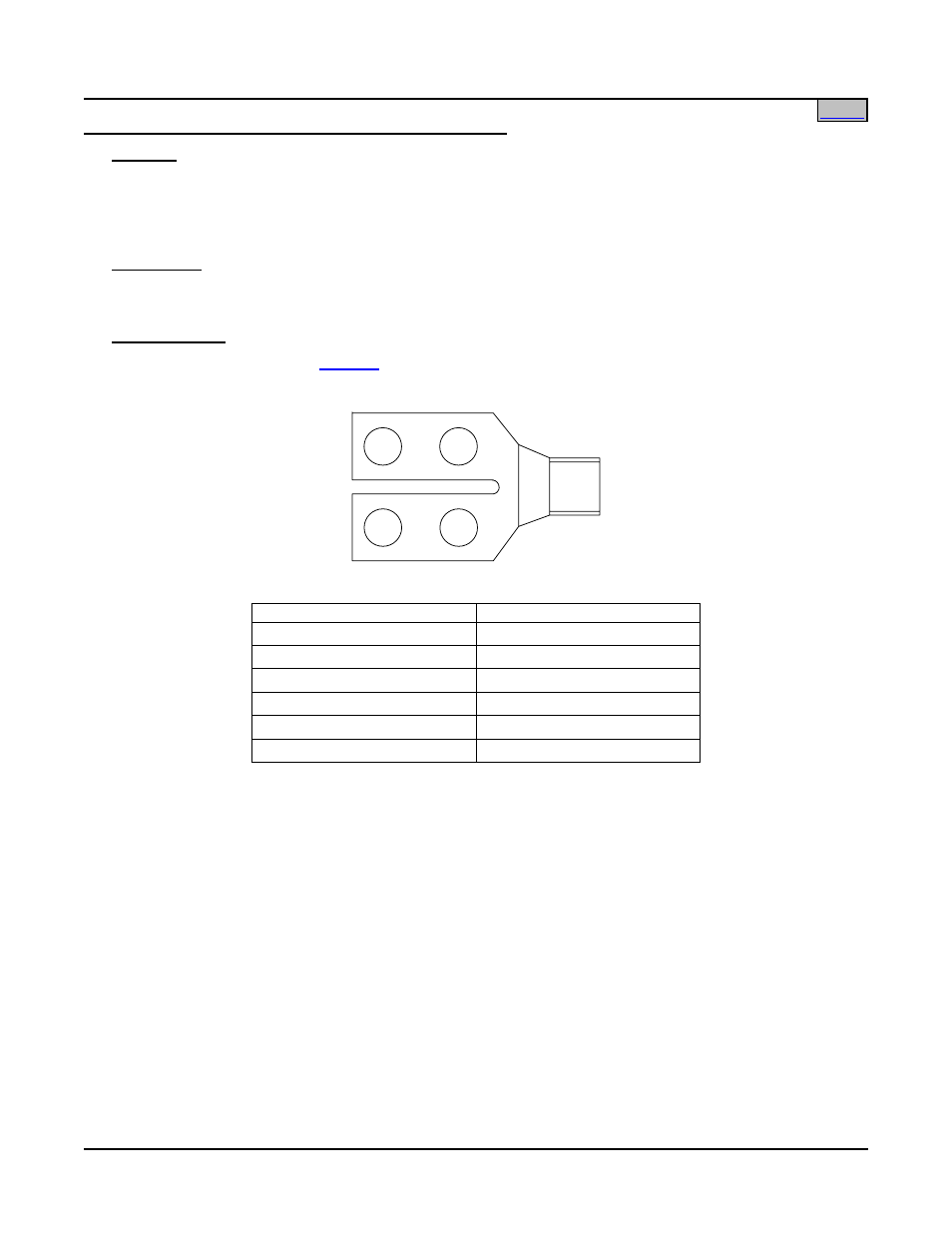

Special Application Crimp Lug / Strap Combination Table
Features
♦ Straps two fuseholder/circuit breaker wiring positions together, and provides a crimp-type lug which
allows distribution wiring up to 350 kcmil size (maximum size of wire to be connected to a single position
is 2 AWG). Designed for use with 125 ampere and larger bullet nose-type circuit breakers or TPS/TLS-
type fuses, which require at least two mounting positions.
Restrictions
If used with bullet nose-type circuit breakers or TPS/TLS-type fuses smaller than 125 amperes, an empty
mounting position is required adjacent to the distribution device.
Ordering Notes
1) Specify part number from
for desired lead size.
Lead Size
Part Number
1/0 AWG
245393500
2/0 AWG
245393600
3/0 AWG
245393700
4/0 AWG
245393800
250 kcmil
514872
350 kcmil
514873
Table 11
Special Application Crimp Lug / Strap Combination
(Two-Hole Lug, 1/4” Bolt Clearance Hole, 5/8” Centers)
