System Application Guide
SAG581126000
Spec. No. 581126000 (Model 700
NVBA
)
Issue AD, November 23, 2009
Page 63 of 123
This document is property of Emerson Network Power, Energy Systems, North America, Inc. and contains confidential and proprietary information owned by Emerson Network Power, Energy
Systems, North America, Inc. Any copying, use, or disclosure of it without the written permission of Emerson Network Power, Energy Systems, North America, Inc. is strictly prohibited.

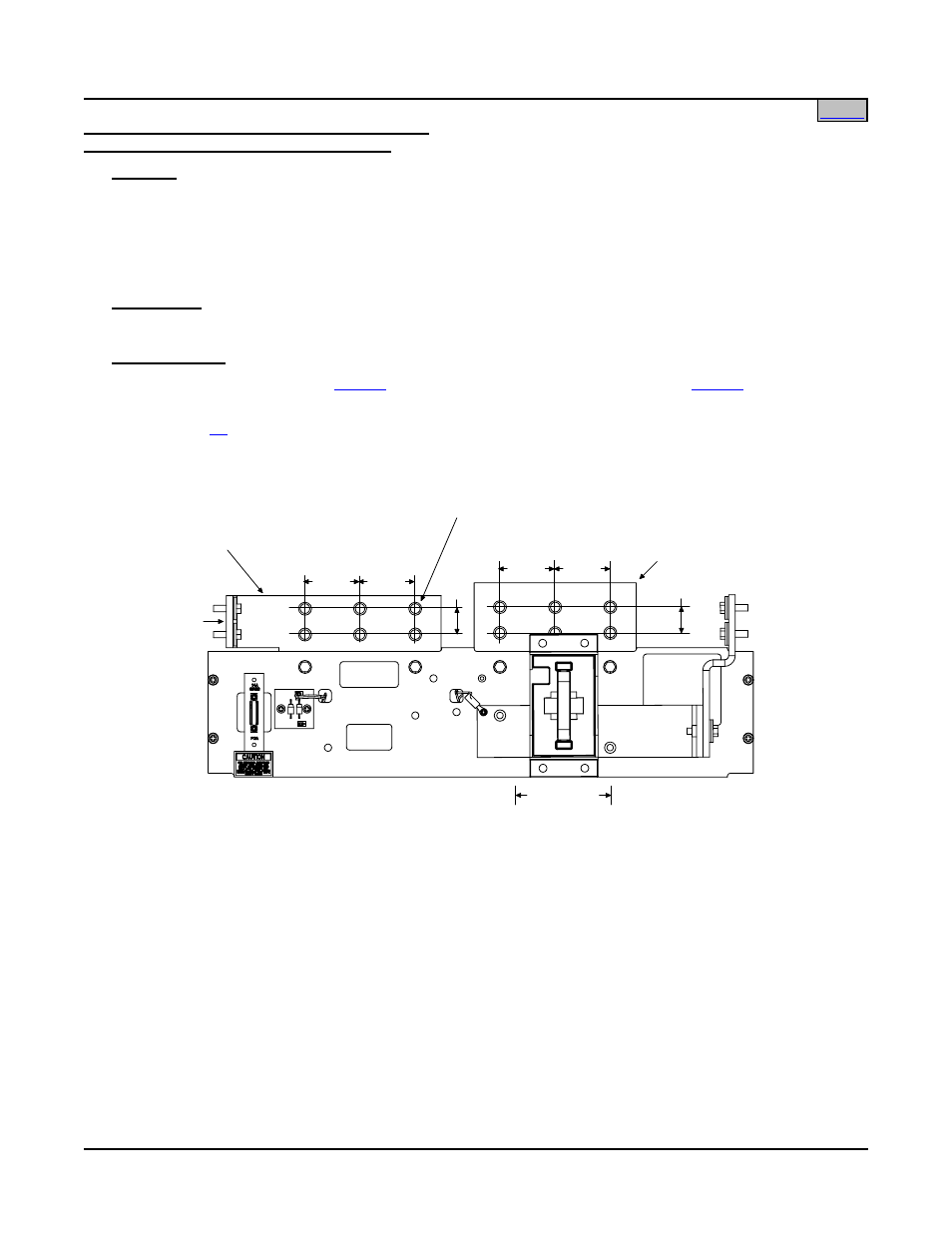

List NC: Distribution Bus Module (P/N 514025)
(1) TPH Fuse Battery Disconnect Position
Features
♦ Single Voltage Distribution (+24V)
♦ 500A Maximum Capacity
♦ (1) Battery Disconnect Fuse Mounting Position
(70 to 600A TPH-Type)
Restrictions
Can be installed in any bus position A-D (row 1-4) of a 1-, 2-, 3-, or 4-bus row cabinet.
Ordering Notes
1) Order fuses as required per
. Order replacement alarm fuses (1/4A) per
.
2) Order battery lugs (two hole, 3/8 bolt clearance hole, 1” centers) as required for each distribution position
per Table
1"
1"
BATTERY
DISCONNECT
GROUND
BUSBAR
BATTERY
(RETURN SIDE)
CONNECTIONS
BATTERY (LOAD SIDE)
CONNECTIONS
2-1/8"
2-1/8"
2-1/8"
2-1/8"
3/8-16 CAPTIVE NUT, 12 PLACES (CUSTOMER MUST
SUPPLY LUG BOLTS AND ADDITIONAL
HARDWARE. BOLT LENGTH: 1-1/4")
