List AG: Distribution Bus Module (P/N 514010)
(2) TPH Fuse System Positions
Features
♦ Single Voltage Distribution (+24V)
♦ 500A Maximum Capacity
♦ (2) Distribution Fuse Mounting Positions
(70 to 600A TPH-Type)
Restrictions
Can be installed in any bus position A-D (row 1-4) of a 1-, 2-, 3-, or 4-bus row cabinet.
Does not provide connection for load returns (see Ordering Notes).
Ordering Notes
1) To terminate load returns within the distribution cabinet, order one (1)
for up to two (2) List AG.
2) Order fuses as required per
. Order replacement alarm fuses (1/4A) per
.
3) Order load lugs (two hole, 3/8 bolt clearance hole, 1” centers) as required for each distribution position
per Table

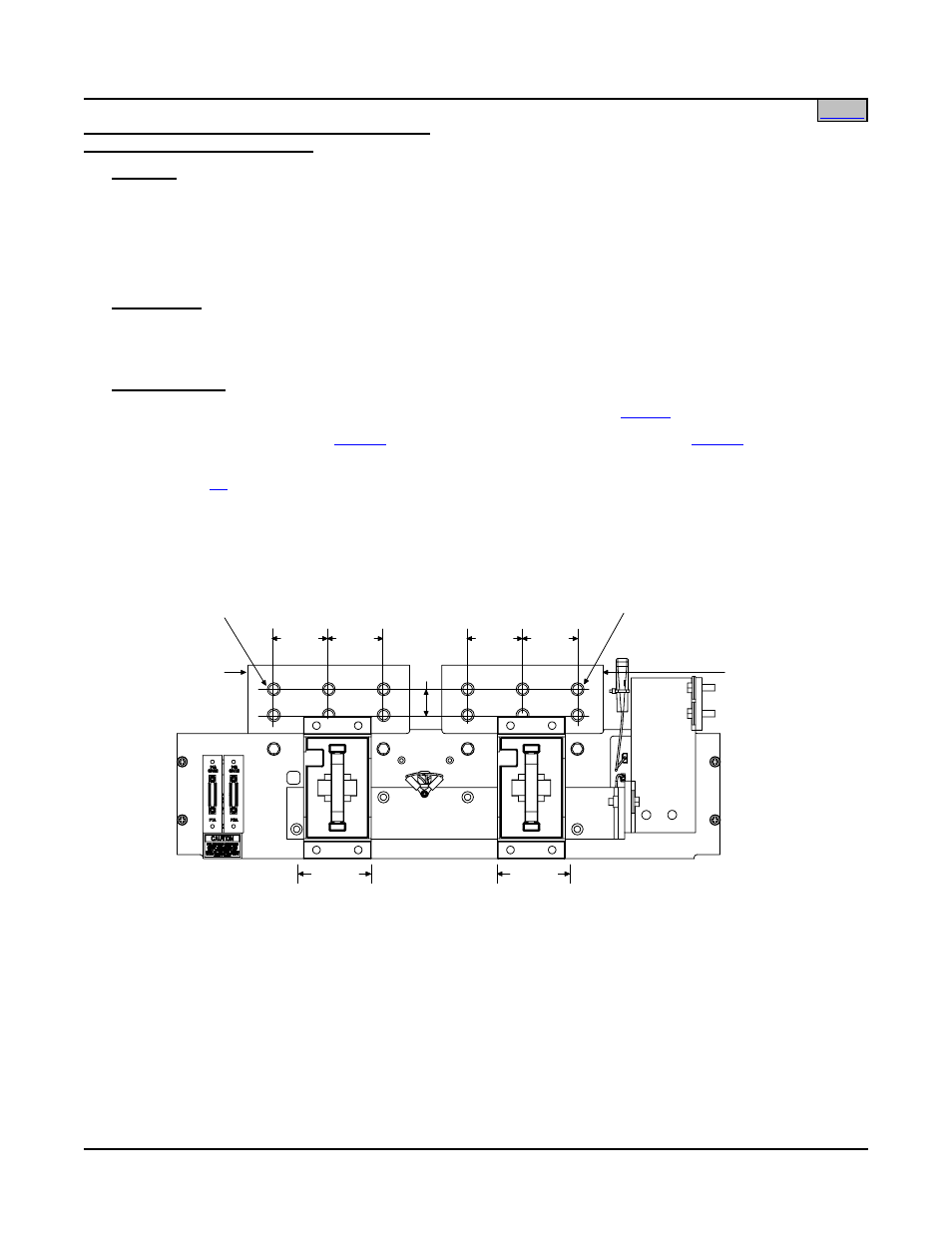

1"
2-1/8"
LOAD
CONNECTIONS
LOAD
CONNECTIONS
2-1/8"
2-1/8"
2-1/8"
3/8-16 CAPTIVE NUT,
6 PLACES (CUSTOMER
MUST PROVIDE LUG BOLTS
AND ADDITIONAL HARDWARE.
BOLT LENGTH: 1-1/4")
3/8-16 CAPTIVE NUT,
6 PLACES (CUSTOMER
MUST PROVIDE LUG BOLTS
AND ADDITIONAL HARDWARE.
BOLT LENGTH: 1-1/4")
LOAD
LOAD
