Distribution Devices
GMT Load Distribution Fuse Block Assembly Kit (P/N 514432)
(10) GMT Fuse Positions
Features
♦ Provides ten (10) load distribution fuse positions (1/4A to 15A GMT alarm-type fuses).
♦ Single voltage distribution (+24V).
♦ Mounts in five (5) distribution positions of any “Bullet Nose” Distribution Bus Module.
♦ Screw clamp type load and load return terminals provided.
♦ Includes ten (10) dummy fuses equipped with safety fuse covers.
♦ Includes 35A input fuse and associate alarm fuse.
Restrictions
30A maximum capacity.
Terminal block wire size capacity: 24 to 14 AWG.
Can be used in a List
,
,
,
,
,
, and
Distribution Bus Module
only.
When factory-ordered, installation order of the assembly will be from top to bottom and right to left (see
illustration below for 4-row example), unless otherwise specified.
Ordering Notes
1) Order kit P/N 514432 as required. Provides one (1) 10-Position GMT Fuse Distribution Assembly P/N
509128, one (1) Ground Return Link, and hardware.
2) Order fuses as required per
.
3) Located on the P/N 509128 Assembly is an input fuse. If this fuse opens, an alarm type fuse (fuse
position #11) also opens to activate the system fuse alarm circuit. For replacement fuses, order as
follows:
Input Fuse F12: P/N 110982 (Bussmann TPS-35LB, 35A)
Alarm Fuse F11: P/N 248610200 (Bussmann GMT-1/4, 1/4A)

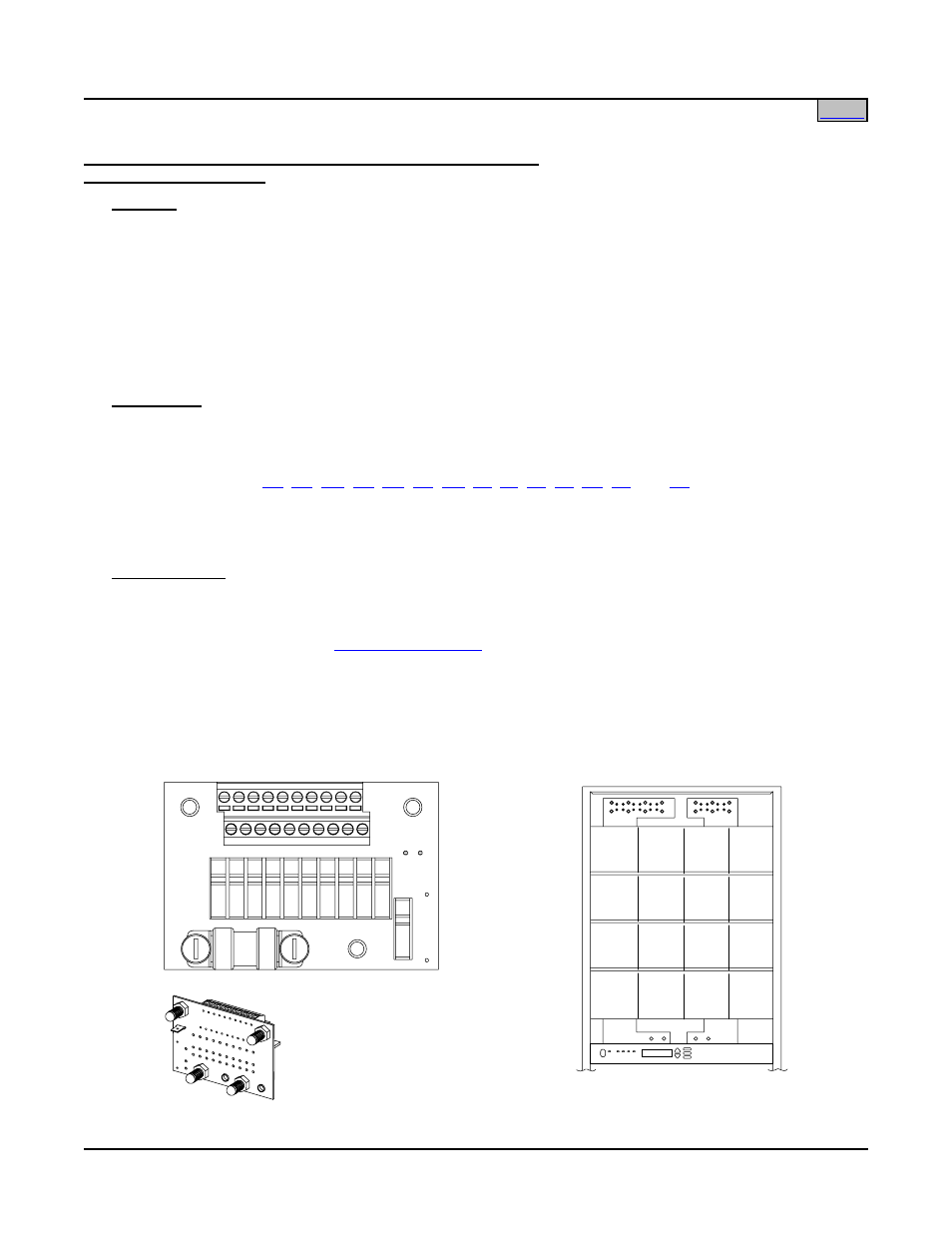

Mounting Order for Multiple Part No. 509128
(4 Row Cabinet Shown)
1st GMT
Fuse
Assy.
2nd GMT
Fuse
Assy.
3rd GMT
Fuse
Assy.
4th GMT
Fuse
Assy.
5th GMT
Fuse
Assy.
6th GMT
Fuse
Assy.
7th GMT
Fuse
Assy.
8th GMT
Fuse
Assy.
Part No. 509128
F10
TB1
F9
F8
F7
F6
F5
F4
F3
F2
F1
F11
F12
Rear View
