System Application Guide SAG581126000
Spec. No. 581126000 (Model 700 NVBA ) Issue AD, November 23, 2009
Page 53 of 123
This document is property of Emerson Network Power, Energy Systems, North America, Inc. and contains confidential and proprietary information owned by Emerson Network Power, Energy
Systems, North America, Inc. Any copying, use, or disclosure of it without the written permission of Emerson Network Power, Energy Systems, North America, Inc. is strictly prohibited.

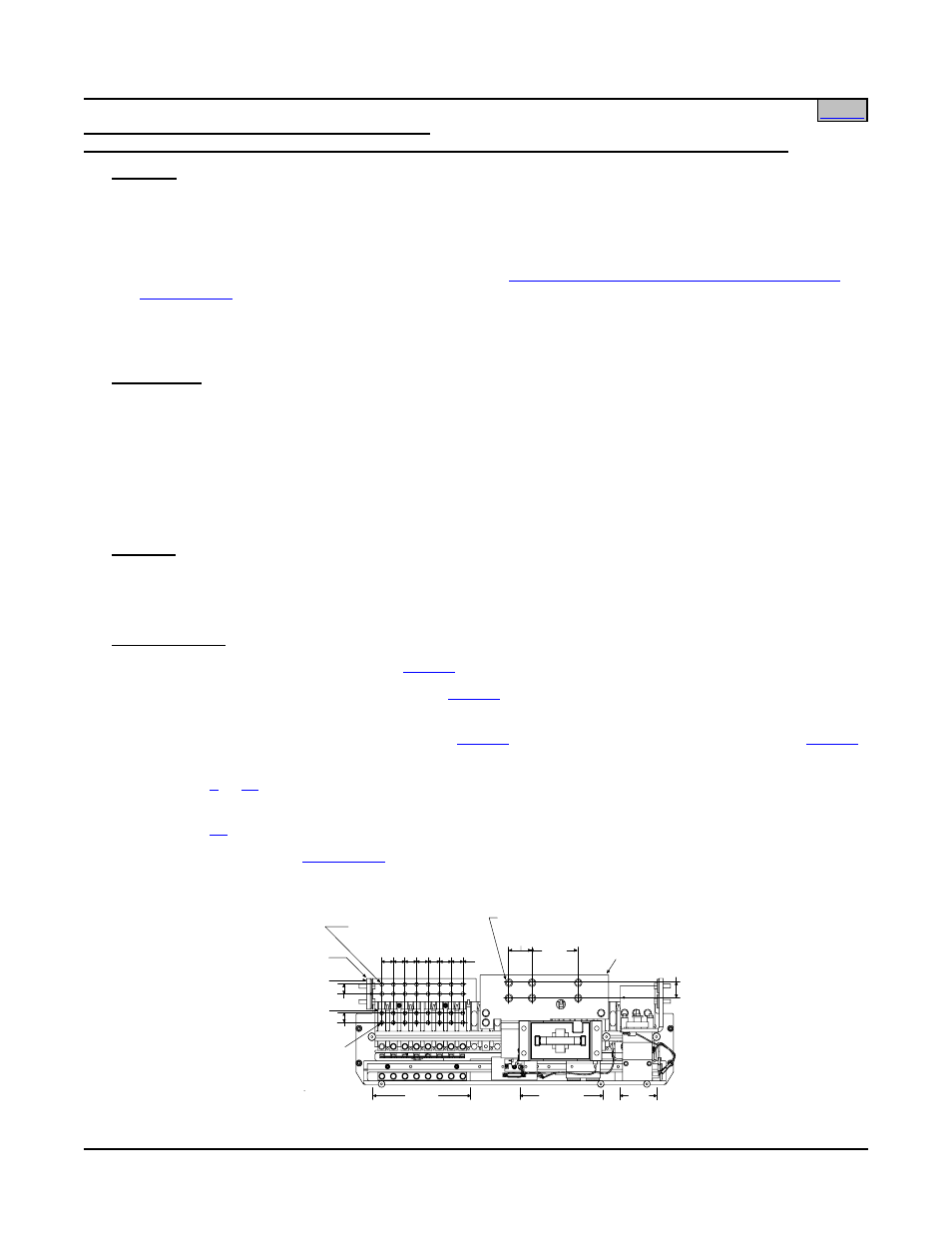

List GB: Distribution Bus Module (P/N 513806)
(8) Fuse/Circuit Breaker System Positions w/LVD and (1) TPH Fuse Battery Disconnect Position
Features
♦ Single Voltage Distribution (+24V)
♦ 500A Maximum Capacity
♦ (8) Load Distribution Fuse / Circuit Breaker Mounting Positions (3 to 100A TPS/TLS-Type Fuses / 1 to
250A Bullet Nose Type Circuit Breakers), or accepts “ GMT Load Distribution Fuse Block Assembly Kit
(P/N 514432) ”.
♦ (1) Battery Disconnect Fuse Mounting Position (70 to 600A TPH-Type)
♦ Low Voltage Load Disconnect Contactor
Restrictions
Limit one bus arrangement of this type per Distribution Cabinet.
Must be installed in bus position A (row 1) of a 1-, 2-, 3-, or 4-bus row cabinet.
Unless otherwise specified fuses and/or circuit breakers are mounted from left to right, starting with the
highest capacity and working to the lowest capacity.
125A, 150A, and 200A circuit breakers occupy two mounting positions. 250A circuit breakers occupy three
mounting positions.
Caution: A circuit breaker or fuse with a rating greater than 150 amperes SHALL HAVE an empty
mounting position between it and any other overcurrent protective device.
Maximum size of wire to be connected to a single TPS/TLS-type fuseholder or Bullet Nose-type circuit
breaker position is 2 AWG.
Ordering Notes
1) Order circuit breakers as required per Table 7 .
2) Order load distribution fuses as required per Table 8 .
Also order one (1) P/N 117201 bullet nose-type fuseholder per fuse ordered.
3) Order battery disconnect fuse as required per Table 4 . Order replacement alarm fuse (1/4A) per Table 3 .
4) Order load lugs (two hole, 1/4” bolt clearance hole, 5/8” centers) as required for each distribution position
per Table 9 or 11 .
5) Order battery lugs (two hole, 3/8 bolt clearance hole, 1” centers) as required for each distribution position
per Table 10 .
6) Order lug hardware kit,
8
P/N 520332 , as required. Kit provides all hardware required to connect load and
ground lugs for four (4) positions of a bullet nose-type distribution assembly.
1"
2-1/2"
1-3/4"
3/8-16 CAPTIVE NUT, 6 PLACES (CUSTOMER MUST
PROVIDE LUG BOLTS AND ADDITIONAL
HARDWARE. BOLT LENGTH: 1-14")
BATTERY (LOAD SIDE)
CONNECTIONS
LOAD
CONNECTIONS
GROUND
BUSBAR
1/4-20 STUD, 16 PLACES
CUSTOMER MUST SUPPLY
ADDITIONAL HARDWARE)
3/4"
5/8"
5/8"
LOAD RETURN
CONNECTIONS
LOADS BATTERY
DISCONNECT
LVD
CONTACTOR
1/4-20 THREADED HOLE,
16 PLACES (CUSTOMER
MUST SUPPLY LUG BOLTS
AND ADDITIONAL
HARDWARE.
BOLT LENGTH: 3/4")
