List AH: Distribution Bus Module Ground Bar Assembly (P/N 500676)
for Use with Up to (2) List AG, AJ, CG, or CJ
Features
♦ Single Voltage Distribution (+24V)
♦ 1000A Maximum Capacity
♦ Groundbar Assembly for Use with Up to Two (2) List
if internal load returns are
required
Restrictions
Can be installed in any bus position A-D (row 1-4) of a 1-, 2-, 3-, or 4-bus row cabinet.
Ordering Notes
1) To terminate load returns within the distribution cabinet, order one (1) List AH for up to two (2)
,
,
.
1"
1"
2"
2"
2"
2"
2"

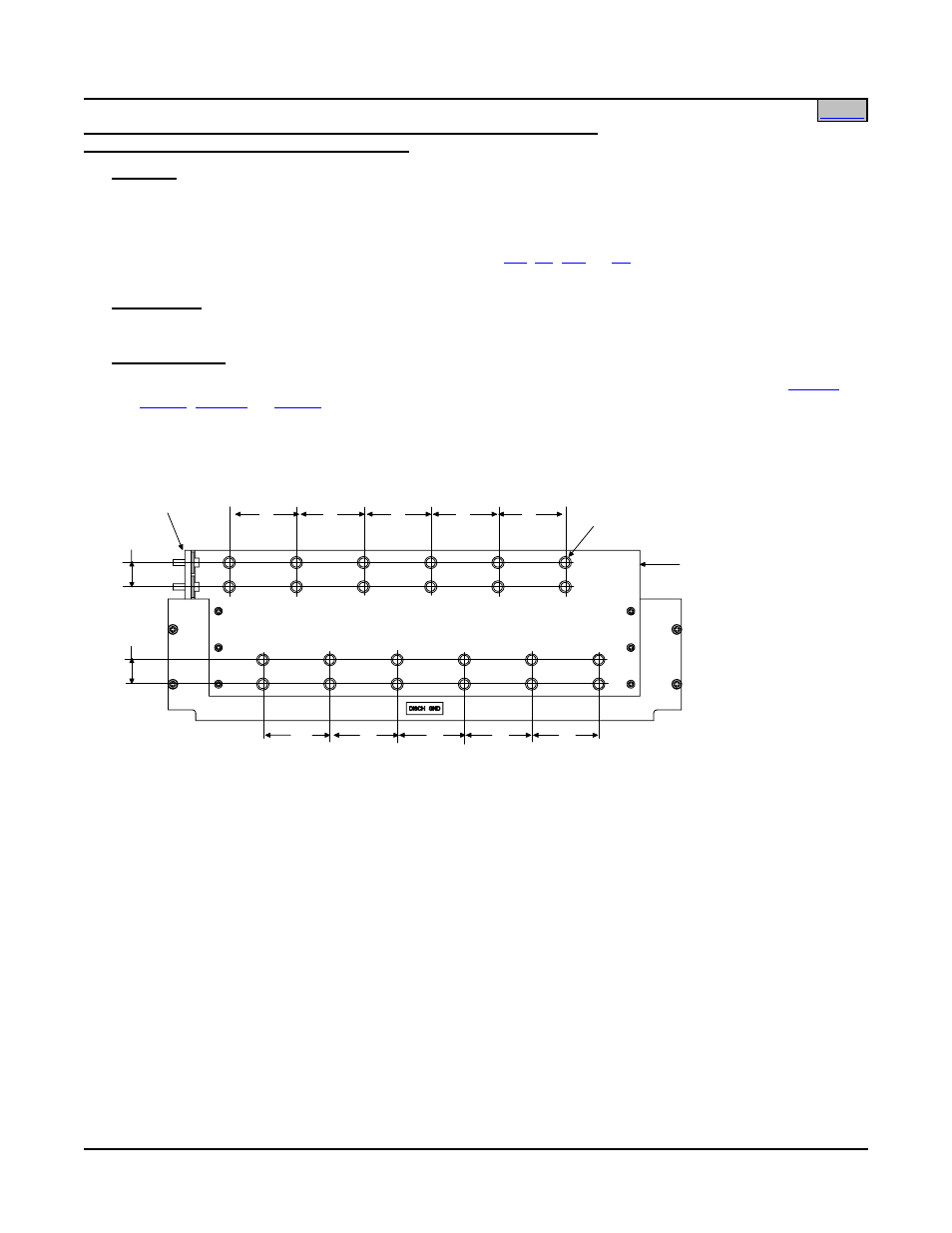

LOAD RETURN
CONNECTIONS
GROUND
BUSBAR
3/8-16 CAPTIVE NUT, 24 PLACES
(CUSTOMER MUST SUPPLY
LUG BOLTS AND ADDITIONAL
HARDWARE. BOLT
LENGTH: 1-1/4")
2"
2"
2"
2"
2"
