List ND: Distribution Bus Module (P/N 514030)
(2) TPH Fuse Battery Disconnect Positions
Features
♦ Single Voltage Distribution (+24V)
♦ 960A Maximum Capacity
♦ (2) Battery Disconnect Fuse Mounting Positions
(70 to 600A TPH-Type)
Restrictions
Limit one bus arrangement of this type per Distribution Cabinet.
Must be installed in bus position A (row 1) of a 1-, 2-, 3-, or 4-bus row cabinet.
Ordering Notes
1) Order fuses as required per Table 4 . Order replacement alarm fuses (1/4A) per Table 3 .
2) Order battery lugs (two hole, 3/8 bolt clearance hole, 1” centers) as required for each distribution position
per Table 10 .

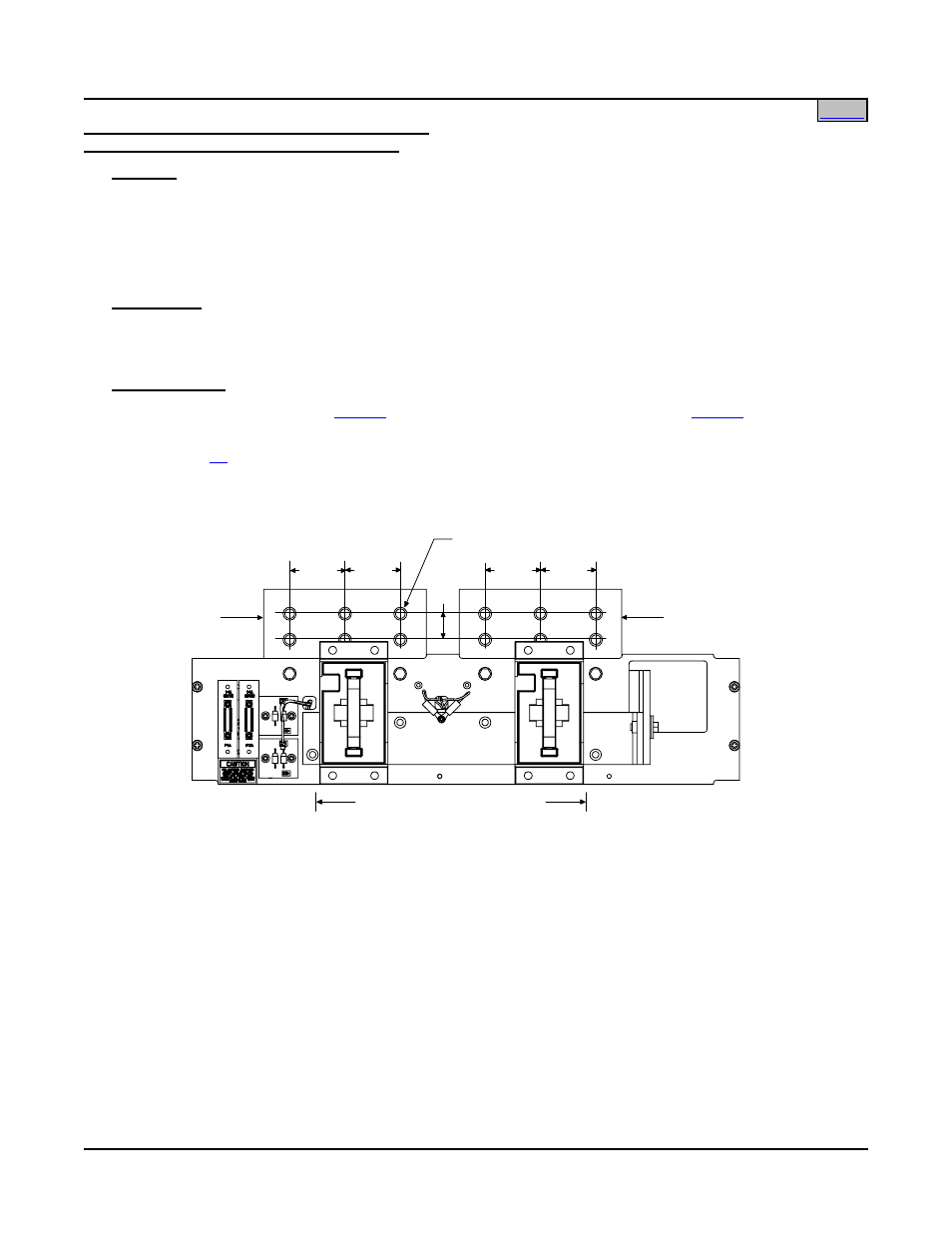

1"
BATTERY DISCONNECTS
BATTERY
(LOAD SIDE)
CONNECTIONS BATTERY
(LOAD SIDE)
CONNECTIONS
2-1/8" 2-1/8" 2-1/8" 2-1/8"
3/8-16 CAPTIVE NUT, 12 PLACES (CUSTOMER MUST
SUPPLY LUG BOLTS AND ADDITIONAL HARDWARE.
BOLT LENGTH: 1-1/4")
