System Application Guide
SAG581126000
Spec. No. 581126000 (Model 700
NVBA
)
Issue AD, November 23, 2009
Page 67 of 123
This document is property of Emerson Network Power, Energy Systems, North America, Inc. and contains confidential and proprietary information owned by Emerson Network Power, Energy
Systems, North America, Inc. Any copying, use, or disclosure of it without the written permission of Emerson Network Power, Energy Systems, North America, Inc. is strictly prohibited.
List RC: 2000A Manual Battery Disconnect Contactor
with Local and Remote Alarm (P/N 528446)
Features
♦ Provides a battery disconnect contactor with manual control circuit.
♦ Mounted on external rear of the Distribution Cabinet; uses no distribution row positions inside cabinet.
♦ Includes (1) extension plate (P/N 514713) for the Distribution Cabinet ground return busbar. Plate
provides three pairs of clearance holes for 3/8” hardware on 1” centers. Allows back-to-back lug landing
for up to six lugs. See "
Electrical Connection Locations and Dimensions, Input Battery (Connections to
under PHYSICAL SIZE INFORMATION for a dimensional drawing.
♦ Also provides one set of Form C relay contacts for connection to customer external alarms.
Restrictions
Must be installed in Main Bay (List 1) only.
Limit one List RC per Distribution Cabinet.
Cannot be used in a 1-bus row cabinet.
Cannot be used if List 1 is used with List 2. (Can be used if List 1 is used alone or with List 5.)
Cannot be used with List 92, 93, RA, RB, RD, or RE.
Rear access required for installation and maintenance.
Ordering Notes
1) Order as required.
2) Order battery lugs (two hole, 3/8 bolt clearance hole, 1” centers) as required Table

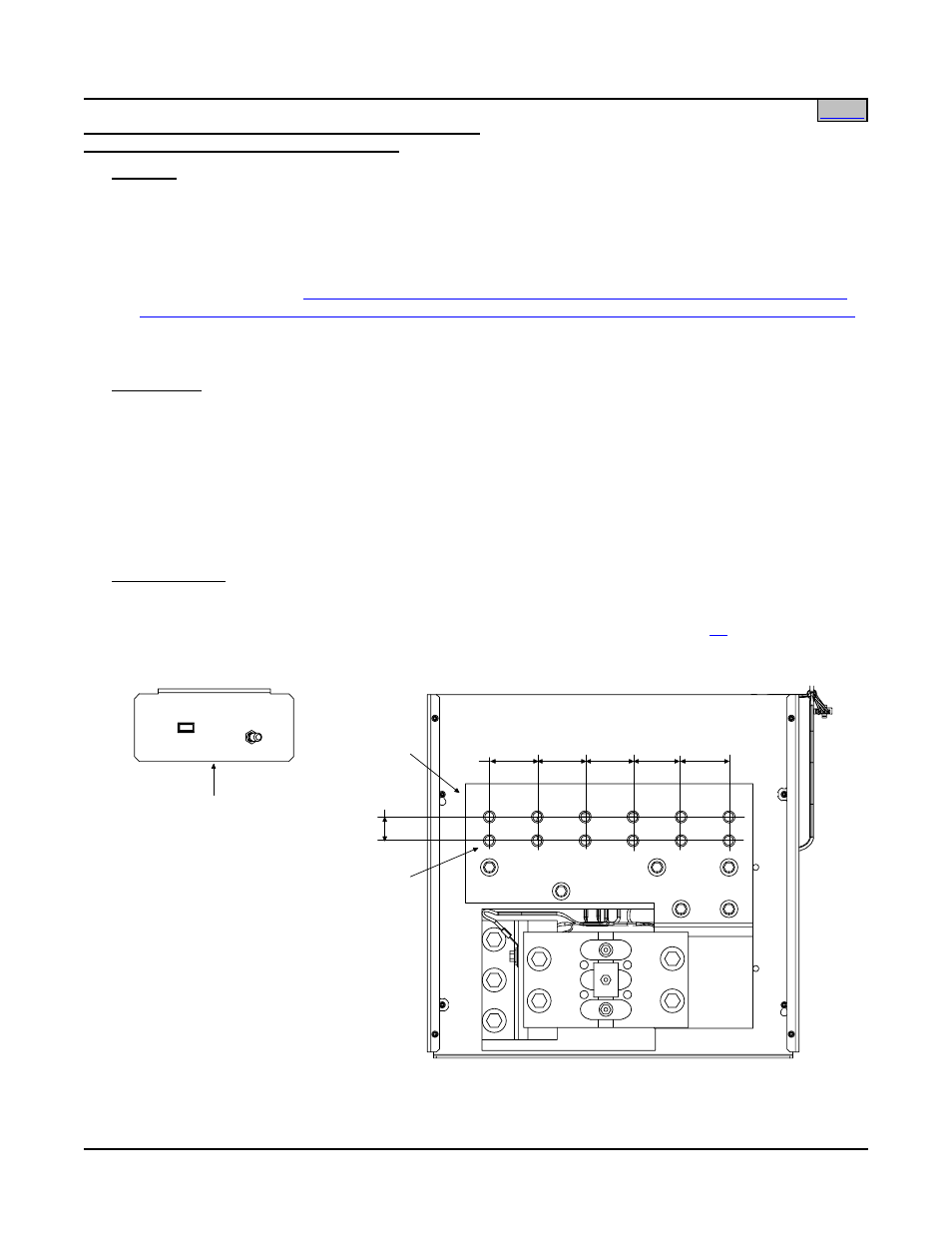

3/8-16 CAPTIVE NUT, 12 PLACES
(CUSTOMER MUST PROVIDE LUG
BOLTS AND ADDITIONAL HARDWARE.
BOLT LENGTH: 1-1/4")
REAR VIEW
BAT DISC
NORM
DISC
FRONT VIEW
(1) GROUND RETURN BUSBAR EXTENSION
PLATE PROVIDED. SEE "DIMENSIONS OF
BATTERY BUSBAR EXTENSION KIT, PART
NO. 514713" FOR DIMENSIONS.
MANUAL BATTERY
DISCONNECT SWITCH
BATTERY
(LOAD SIDE)
CONNECTIONS
1"
2"
