System Application Guide
SAG581126000
Spec. No. 581126000 (Model 700
NVBA
)
Issue AD, November 23, 2009
Page 111 of 123
This document is property of Emerson Network Power, Energy Systems, North America, Inc. and contains confidential and proprietary information owned by Emerson Network Power, Energy
Systems, North America, Inc. Any copying, use, or disclosure of it without the written permission of Emerson Network Power, Energy Systems, North America, Inc. is strictly prohibited.

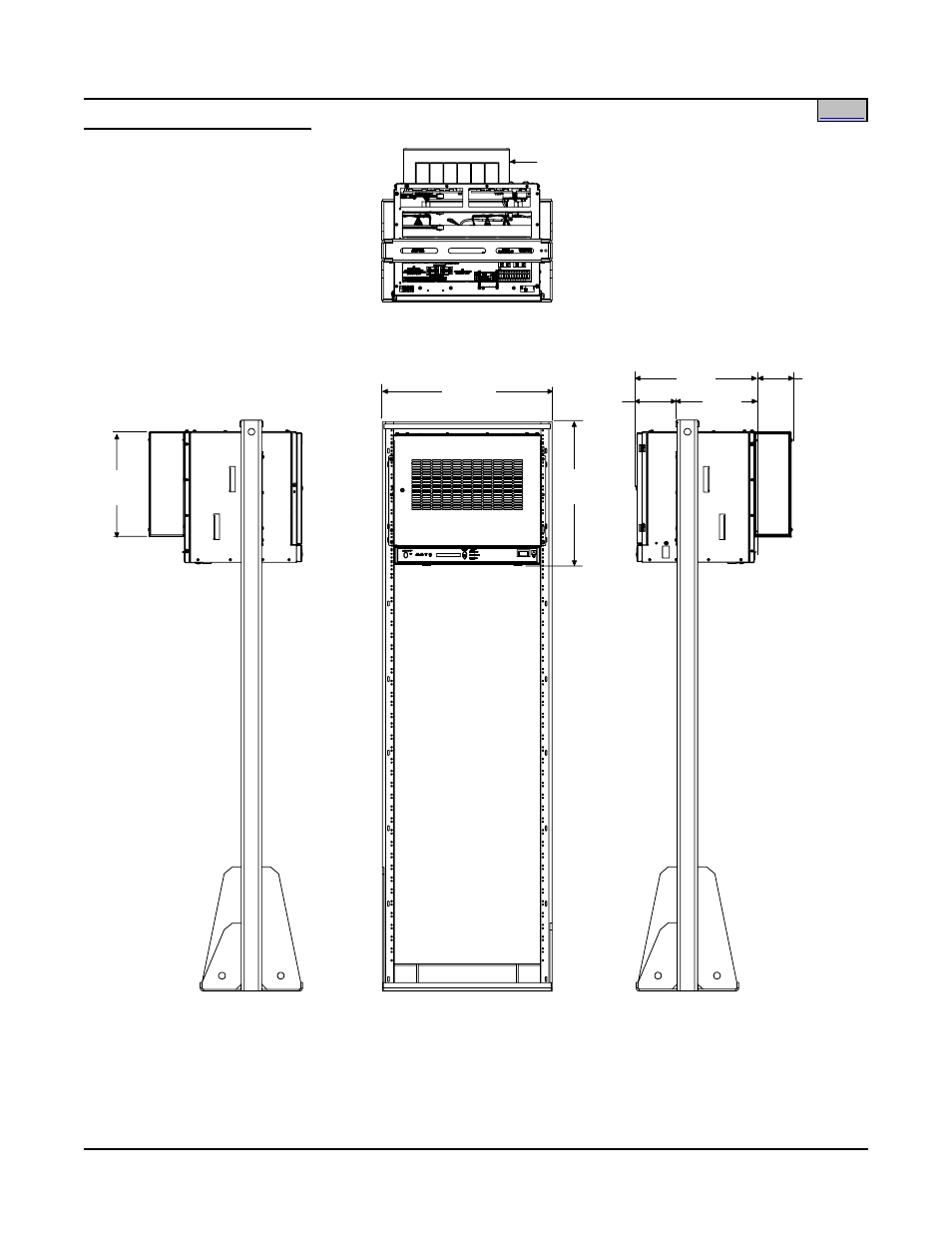

List 22 (Two Bus Row Cabinet)
Left Side View
Front View
Right Side View
Top View
19.25
(11U)
24.75
(typical)
Note 4.
15.44
(Note 4)
11.50
6.00
17.50
5.25
(Note 4)
Notes:
1. All dimensions are in inches,
unless otherwise specified.
2. Weight in LBS.
(minus relay rack)
Four Bus Row Cabinet
Net:
Shipping:
3. Finish: Textured Gray (M500-147)
4. Housing present only if equipped
with List RC, RD or RE (battery
disconnects).
Refer to PD588705100
for Module Mounting
Shelf Assembly
dimensions.
