Cannot be ordered with List 1 if it is to be used with a List 2 .
Ordering Notes
1) Order up to two (2) Distribution Bus Panels for each List 22 per ' Distribution Bus Arrangements '.
2) Order fuses and/or circuit breakers, as required, per ' Distribution Devices ' under ACCESSORY
DESCRIPTIONS.
3) Order input and load distribution lugs, as required, per ' Wiring Components ' under ACCESSORY
DESCRIPTIONS.

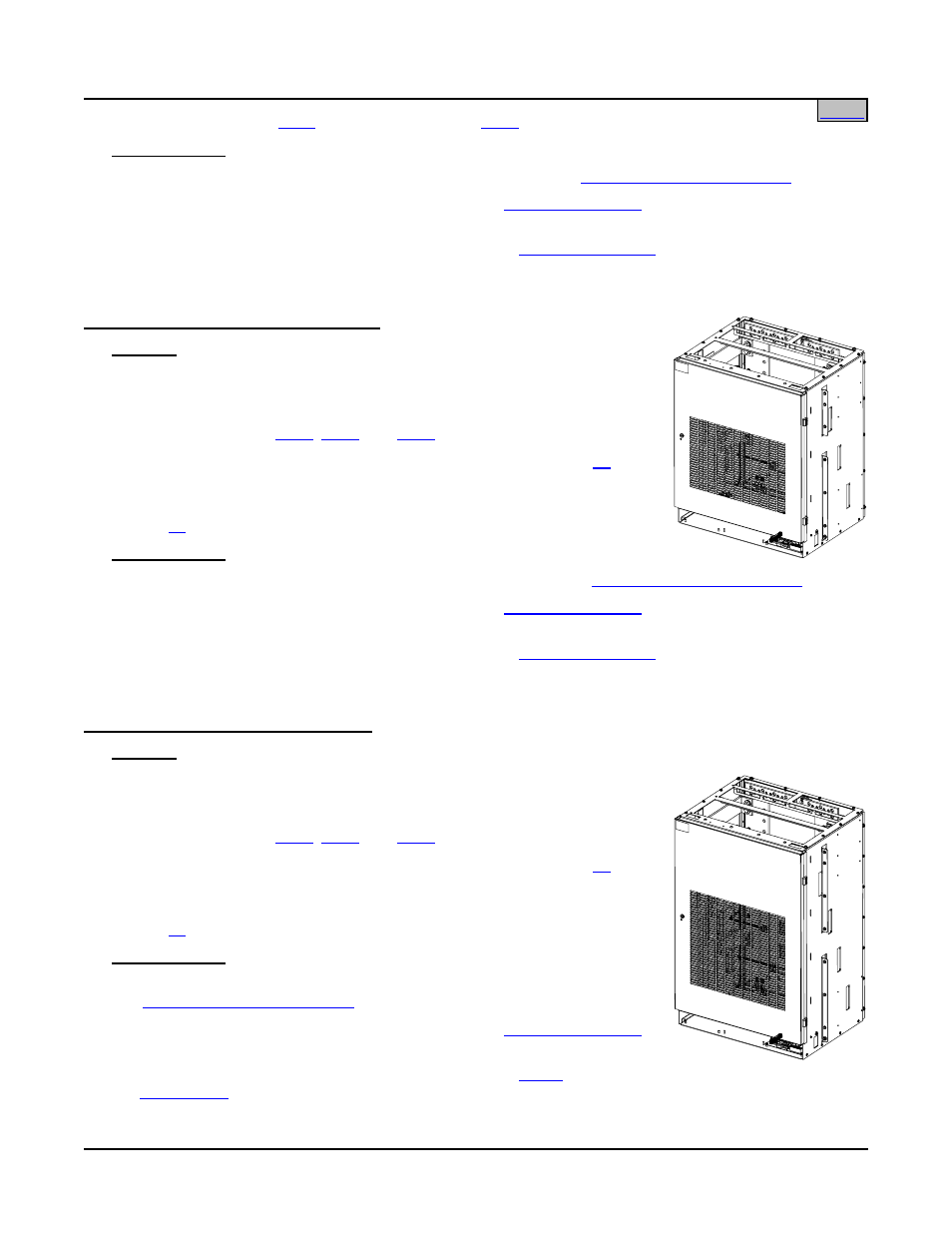

List 23: Three-Row Distribution Cabinet
Features
♦ Accepts up to three (3) Distribution Bus Panels.
♦ Rated for up to 1500 amperes of distribution.
♦ Available for use in
List 1 , List 2 , and List 5 bays.
♦ See also the description of the Quad Shunt circuit card under List
21
features.
♦ See also the description of the Low Voltage Disconnect circuit card under
List 21 features.
Ordering Notes
1) Order up to three (3) Distribution Bus Panels for each List 23 per ' Distribution Bus Arrangements '.
2) Order fuses and/or circuit breakers, as required, per ' Distribution Devices ' under ACCESSORY
DESCRIPTIONS.
3) Order input and load distribution lugs, as required, per ' Wiring Components ' under ACCESSORY
DESCRIPTIONS.
List 24: Four-Row Distribution Cabinet
Features
♦ Accepts up to four (4) Distribution Bus Panels.
♦ Rated for up to 2000 amperes of distribution.
♦ Available for use in
List 1 , List 2 , and List 5 bays.
♦ See also the description of the Quad Shunt circuit card under List
21
features.
♦ See also the description of the Low Voltage Disconnect circuit card under
List 21 features.
Ordering Notes
1) Order up to four (4) Distribution Bus Panels for each List 24 per
' Distribution Bus Arrangements '.
2) Order fuses and/or circuit breakers, as required, per ' Distribution Devices '
under ACCESSORY DESCRIPTIONS.
3) Order input and load distribution lugs, as required, per ' Wiring
Components ' under ACCESSORY DESCRIPTIONS.
