List AL: Distribution Bus Module Ground Bar Assembly
for Use with Up to (2) List AK
Features
♦ Groundbar Assembly for Use with Up to Two (2)
when Internal Load Returns are Required
♦ 1000A Maximum Capacity
Restrictions
Can be installed in a 2- or 3-bus row cabinet (List
). Must be installed in top row.
Must be installed in the same bus row as a
Ordering Notes
1) To terminate load returns within the distribution cabinet, order one (1) List AL for up to two (2)

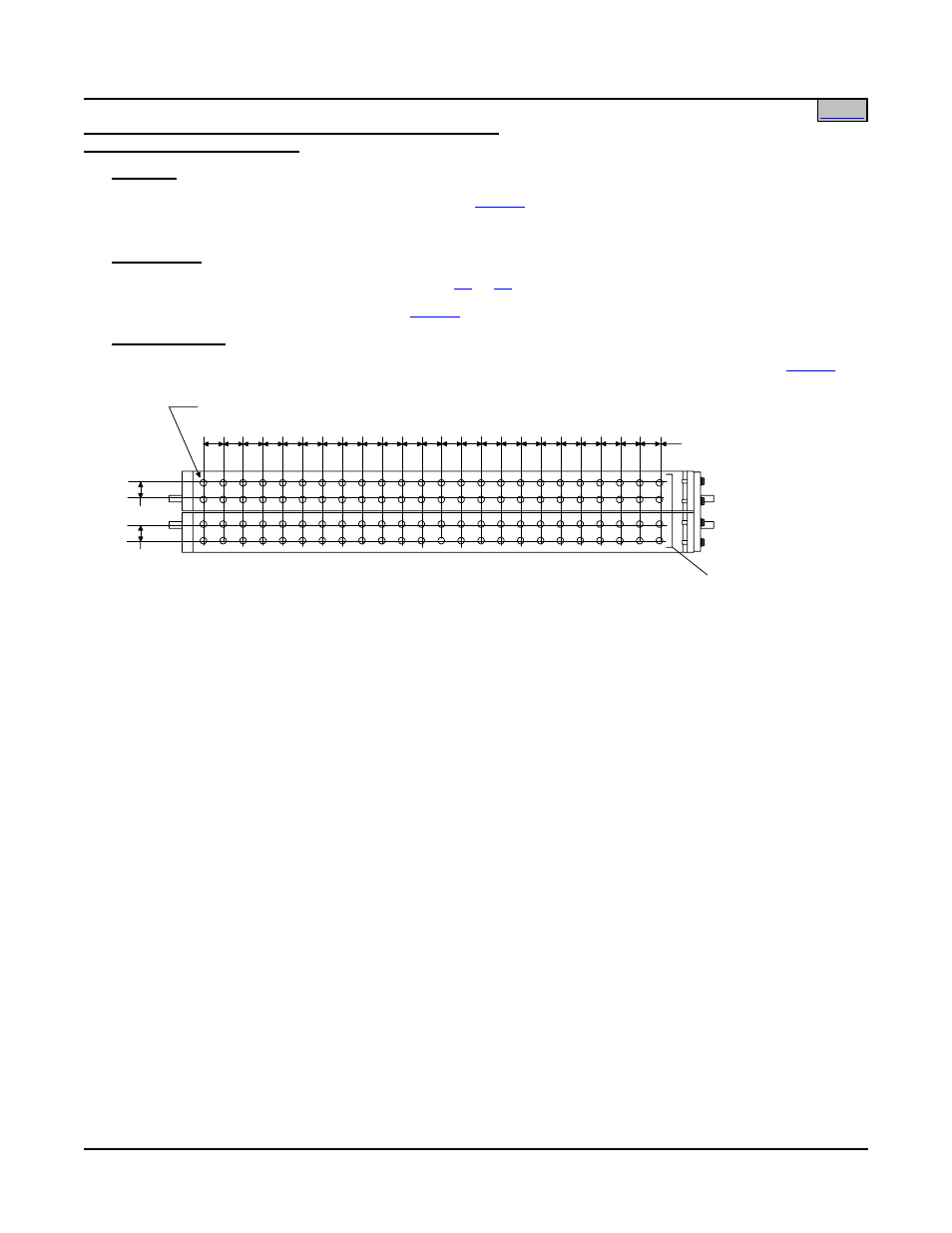

1/4-20 STUD, 48 PLACES
(CUSTOMER MUST SUPPLY ADDITIONAL HARDWARE)
LOAD RETURN
CONNECTIONS
5/8"
5/8"
3/4"
