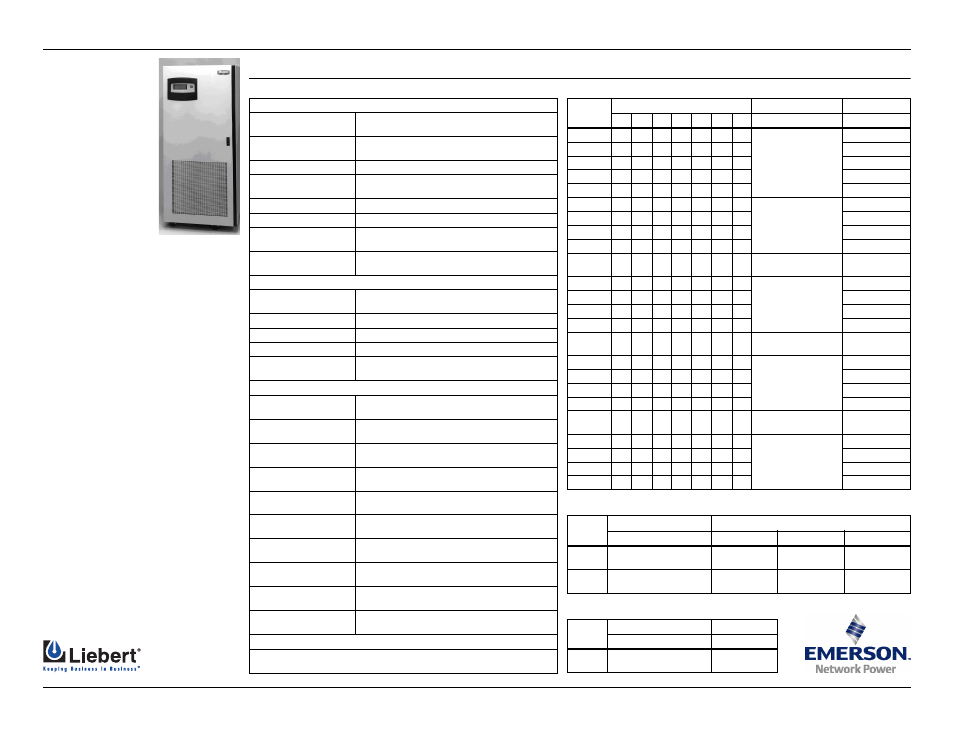

General Specifications

INPUT

Voltage

208 or 480VAC, 60 Hz

3-phase, 3- or 4-wire plus ground

Voltage Range

+10, -15%

(no battery discharge at -20%)

Frequency Range

60 Hz, ±5

Current Distortion

10% maximum reflected THD at full load with

optional input filter; 30% THD without filter

Current Limit

115% of full load input current

Current Walk-in

20 seconds to full load

Power Factor

0.80 lagging minimum at full load; up to 0.96

lagging at full load with optional input filter

Surge Protection

Sustains input surges without damage, per

criteria listed in ANSI C62.41-1980 (IEEE 587)

ENVIRONMENTAL

Operating

Temperature

UPS: 32° to 104°F (0-40°C)

Battery: 68° to 86°F (20-30°C)

Non-Operating Temp. -4° to 158°F (-20° to 70°C)
Relative Humidity

0-95% non-condensing

Operating Altitude

Up to 6600 ft. (2000m) without derating

Acoustical Noise

Less than 65 dBA typical, measured

3.3 ft. (1m) from the unit

OUTPUT

Voltage

208 or 480VAC

3-phase, 4-wire plus ground

Voltage Adjustment

Range

±5%

Voltage Regulation

±0.5% for balanced load

±1.0% for 100% unbalanced load

Dynamic Regulation ±5% deviation for 100% load step

±1% for loss or return of AC input

Transient Response

Time

Recover to ±1% of steady state within 1 cycle

Voltage Distortion

For linear loads, 1% THD; less than 2.5% THD

for 100% nonlinear loads w/o kVA/kW derating

Phasing Balance

120° ±0.5° for balanced load.

120° ±1° for 100% unbalanced load

Frequency

Regulation

±0.1%

Load Power

Factor Range

1.0 to 0.7 lagging without derating

Overload

125% of full load for 10 minutes

150% for 1 minute w/ true sinusoidal waveform

STANDARDS
ETL listed to UL 1778 UPS standards and CSA certified. Meets current

requirements for safe high performance UPS operation.

Liebert has re-
invented the
double-conversion
UPS. The Npower is
the result of an
international design
collaboration and
more than a decade
of advanced
research.

Every aspect of the
Npower shows
careful design and
attention to detail. The rugged
powertrain and advanced
ActiveStar™ controls were
subjected to computer simulations
and thermal analysis to ensure
reliable performance in every
environment.

Even the physical packaging is
uniquely efficient, to make fully
configured systems more compact
than other products on the market.

Best of all, it’s a Liebert product—
designed to give the same million-
hour critical bus MTBF as its older
brothers.

• Unmatched heritage of

reliability and availability

• Smallest system footprint
• Excellent efficiency with non-

linear loads and partial loads

• Outstanding dynamic response
• All-digital ActiveStar™ controls

and graphical user interface

Npower Matching Battery Cabinet

Model

Run Time (minutes) for kVA:

Dimensions

Weight

30 40 50 65 80 100 130 WxDxH, in. (mm)

lb. (kg)

1FJ

12

7

-

-

-

-

-

25x32.5x71

(635x825x1800)

1,600 (725)

1HJ

21 14 10

7

5

-

-

1,800 (815)

1LJ

28 20 14

8

5

-

-

2,350 (1,065)

1MJ

36 25 18 12

8

5

-

2,350 (1,065)

1PJ

53 38 28 20 15 10

-

3,000 (1,360)

1PJ(130)

-

-

-

-

-

-

7

49x32.5x71

(1250x825x1800)

3,350 (1,520)

1RJ

62 45 34 25 19 13

9

3,700 (1,680)

1UJ

72 52 39 30 23 17 12

4,000 (1,815)

1WJ

104 74 55 40 33 25 16

5,050 (2,290)

2PJ

126 83 67 50 38 28

-

(2) 25x32.5x71

635x825x1800)

6,000 (2,720)

2PJ(130)

-

-

-

-

-

-

20

(2) 49x32.5x71

(1250x825x1800)

6,700 (3,040)

2RJ

144 104 76 55 45 35 25

7,400 (3,360)

2UJ

156 111 90 67 52 40 30

8,000 (3,630)

2WJ

-

-

-

97 74 55 40

10,100 (4,580)

3PJ

204 145 108 78 63 48

-

(3) 25x32.5x71

635x825x1800)

9,000 (4,080)

3PJ(130)

-

-

-

-

-

-

35

(3) 49x32.5x71

(1250x825x1800)

10,050 (4,560)

3RJ

223 161 129 94 72 54 39

11,100 (5,040)

3UJ

265 187 142 105 81 65 48

12,000 (5,445)

3WJ

421 302 217 157 124 94 69

15,150 (6,870)

4PJ

301 206 154 111 90 68

-

(4) 25x32.5x71

(635x825x1800)

12,000 (5,440)

4PJ(130)

-

-

-

-

-

-

50

(4) 49x32.5x71

1250x825x1800

13,400 (6,080)

4RJ

329 224 182 134 102 77 55

14,800 (6,720)

4UJ

377 266 201 147 111 91 67

16,000 (7,260)

4WJ

480 423 320 222 180 135 97

20,200 (9,160)

Maintenance Bypass Cabinets

Model

Dimensions

Weight, lb. (kg) for kVA:

WxDxH, in. (mm)

30-50

65-80

100-130

L or N

25x32.5x71

(635x825x1800)

660 (299)

750 (340)

800 (363)

P or Q

31.7x32.5x71

(805x825x1800)

1,210 (549)

1,320 (599)

1,540 (699)

Slim-Line Distribution Cabinet

kVA

Dimensions

Weight

WxDxH, in. (mm)

lb. (kg)

All

10x32.5x71

(254x825x1800)

250 (113)
