SAG581126000 System Application Guide
Issue AD, November 23, 2009 Spec. No. 581126000 (Model 700 NVBA )
Page 66 of 123
This document is property of Emerson Network Power, Energy Systems, North America, Inc. and contains confidential and proprietary information owned by Emerson Network Power, Energy
Systems, North America, Inc. Any copying, use, or disclosure of it without the written permission of Emerson Network Power, Energy Systems, North America, Inc. is strictly prohibited.

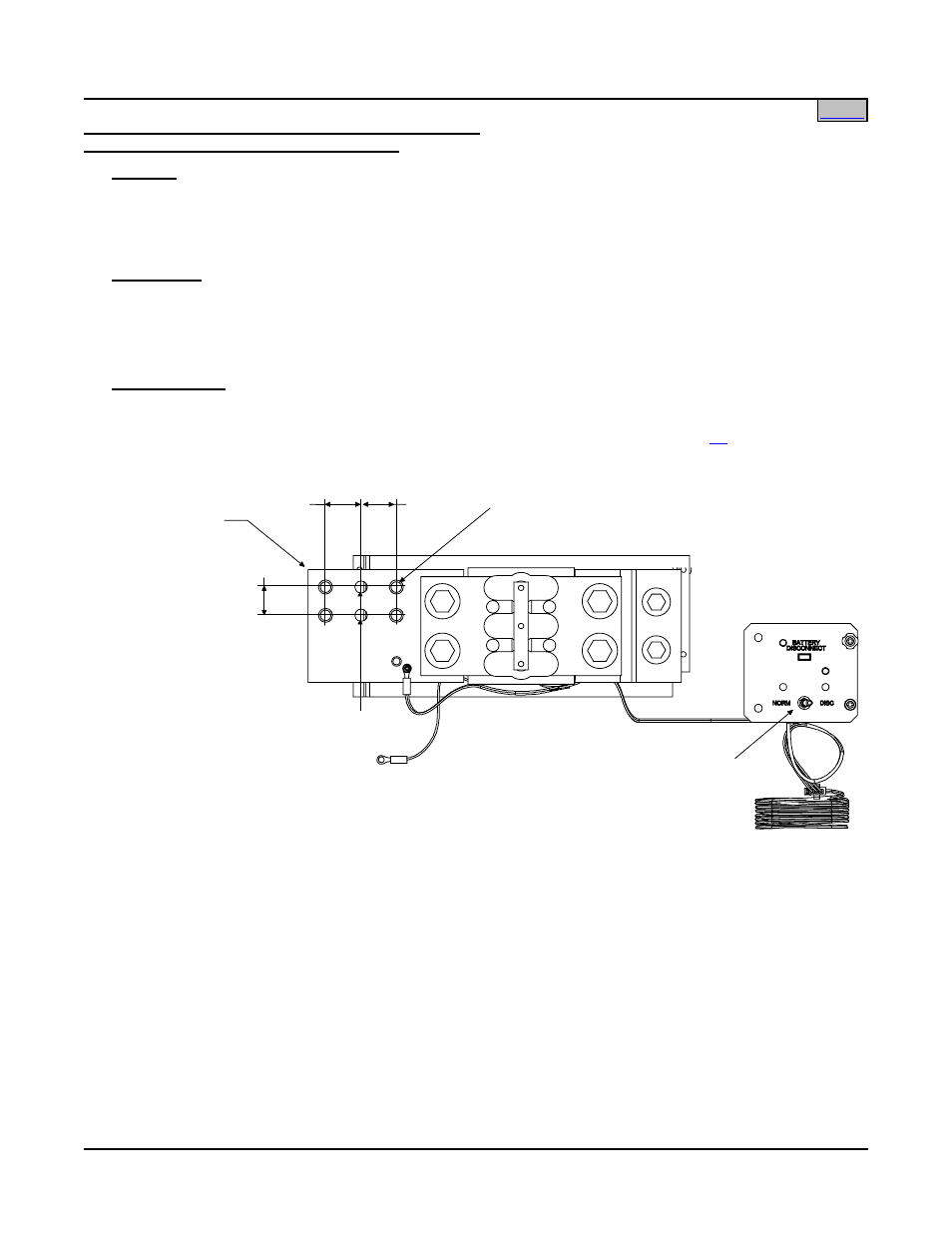

List RB: 1200A Manual Battery Disconnect Contactor
with Local and Remote Alarm (P/N 540809)
Features
♦ Provides a battery disconnect contactor with manual control circuit, which is mounted in bus position A
(row 1) of the Distribution Cabinet.
♦ Also provides one set of Form C relay contacts for connection to customer external alarms.
Restrictions
Limit one bus arrangement of this type per System.
Must be installed in bus position A (row 1) of a 1-, 2-, 3-, or 4-bus row cabinet.
Cannot be used with List 92, 93, RA, RC, RD, or RE.
Ordering Notes
1) Order as required.
2) Order battery lugs (two hole, 3/8 bolt clearance hole, 1” centers) as required Table 10 .
1"
1-1/4" 1-1/4"
BATTERY
(LOAD SIDE)
CONNECTIONS
MANUAL BATTERY
DISCONNECT SWITCH
CLEARANCE HOLES FOR 3/8 BOLT,
2 PLACES FOR MOUNTING LUG ON
BACK SIDE OF BUSBAR (CUSTOMER
MUST PROVIDE LUG BOLTS, NUTS
AND ADDITIONAL HARDWARE.
BOLT LENGTH: 1-1/4")
3/8-16 CAPTIVE NUT, 4 PLACES
(CUSTOMER MUST PROVIDE LUG
BOLTS AND ADDITIONAL HARDWARE.
BOLT LENGTH: 1-1/4")
