External Alarm, Reference, and Control

External alarm, reference, and control connection points are located on…

• J1-J4 on the optional

List 71

Audible Alarm and Alarm Termination Circuit Card P/N 509539,

• TB1 on circuit card P/N 509532, and
• J8 on circuit card P/N 534868 (if List 71 not installed).

MCA MAIN CONTROLLER

CIRCUIT CARD, P/N 534868

(MAIN BAY ONLY)

ALARM TERMINATION/

AUDIBLE ALARM

CIRCUIT CARD, P/N 509539

(LIST 71 OPTION)

(MAIN BAY ONLY)

INTERCONNECT/

LVD INHIBIT CIRCUIT CARD,

P/N 509532

(ALL BAYS)

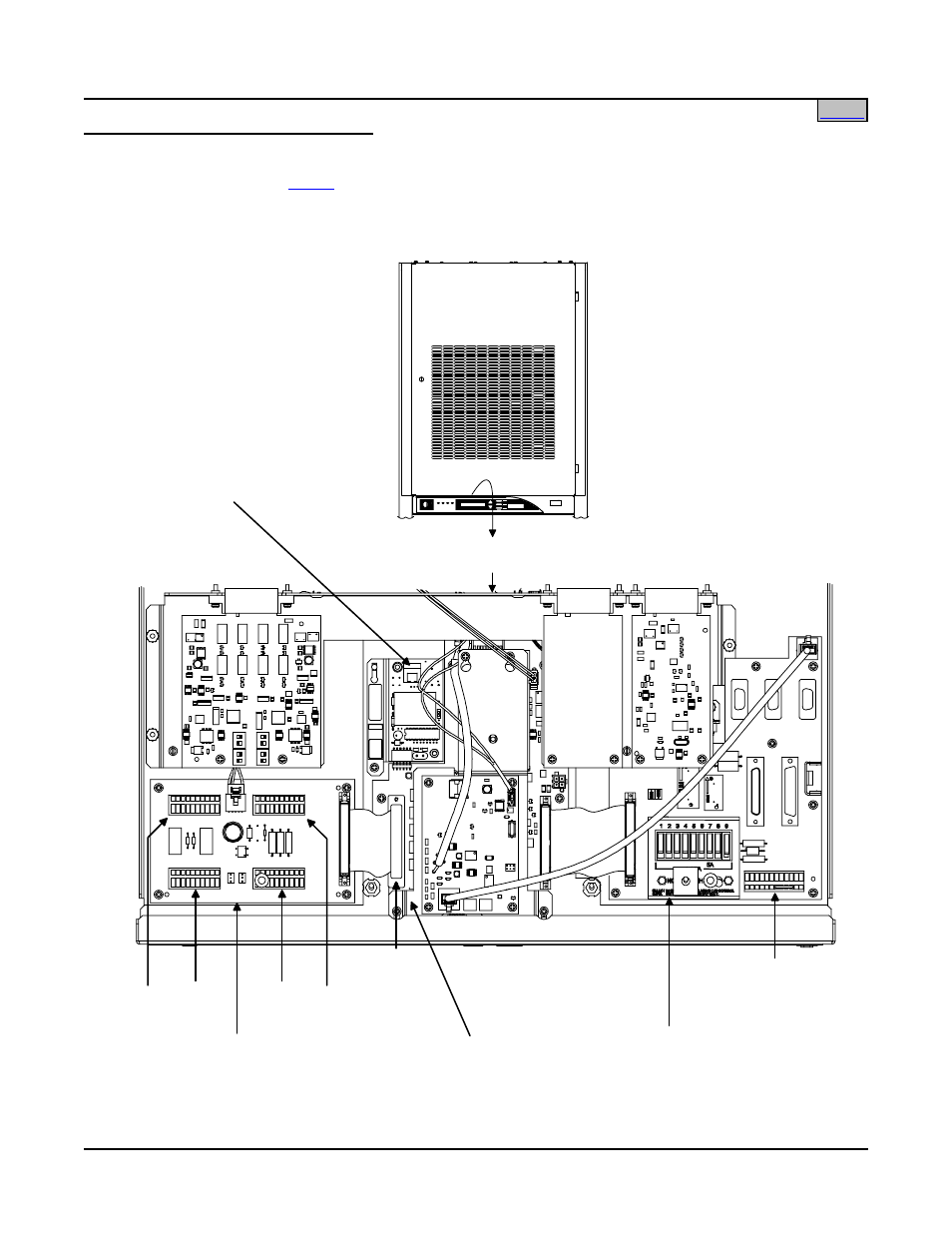

VIEW WITH DOOR OPEN LOOKING

DOWN AT BOTTOM OF CABINET

TB1

(Typical location on Modem circuit card,

Ethernet and RS-232/Modem card

slightly different configuration.)
