System Application Guide SAG581126000
Spec. No. 581126000 (Model 700 NVBA ) Issue AD, November 23, 2009
Page 19 of 123
This document is property of Emerson Network Power, Energy Systems, North America, Inc. and contains confidential and proprietary information owned by Emerson Network Power, Energy
Systems, North America, Inc. Any copying, use, or disclosure of it without the written permission of Emerson Network Power, Energy Systems, North America, Inc. is strictly prohibited.
6) Order one (1) Module Mounting Position Blank Cover Panel, Part No. 540959 , for each empty
module mounting position in the system.
7) Order fuses and/or circuit breakers, as required, per ' Distribution Devices ' under ACCESSORY
DESCRIPTIONS.
8) Order input and load distribution lugs, as required, per ' Wiring Components ' under ACCESSORY
DESCRIPTIONS.
9) Order as required additional options per Lists 29 and 93 .
10) Order as required any additional accessories described under ACCESSORY DESCRIPTIONS .

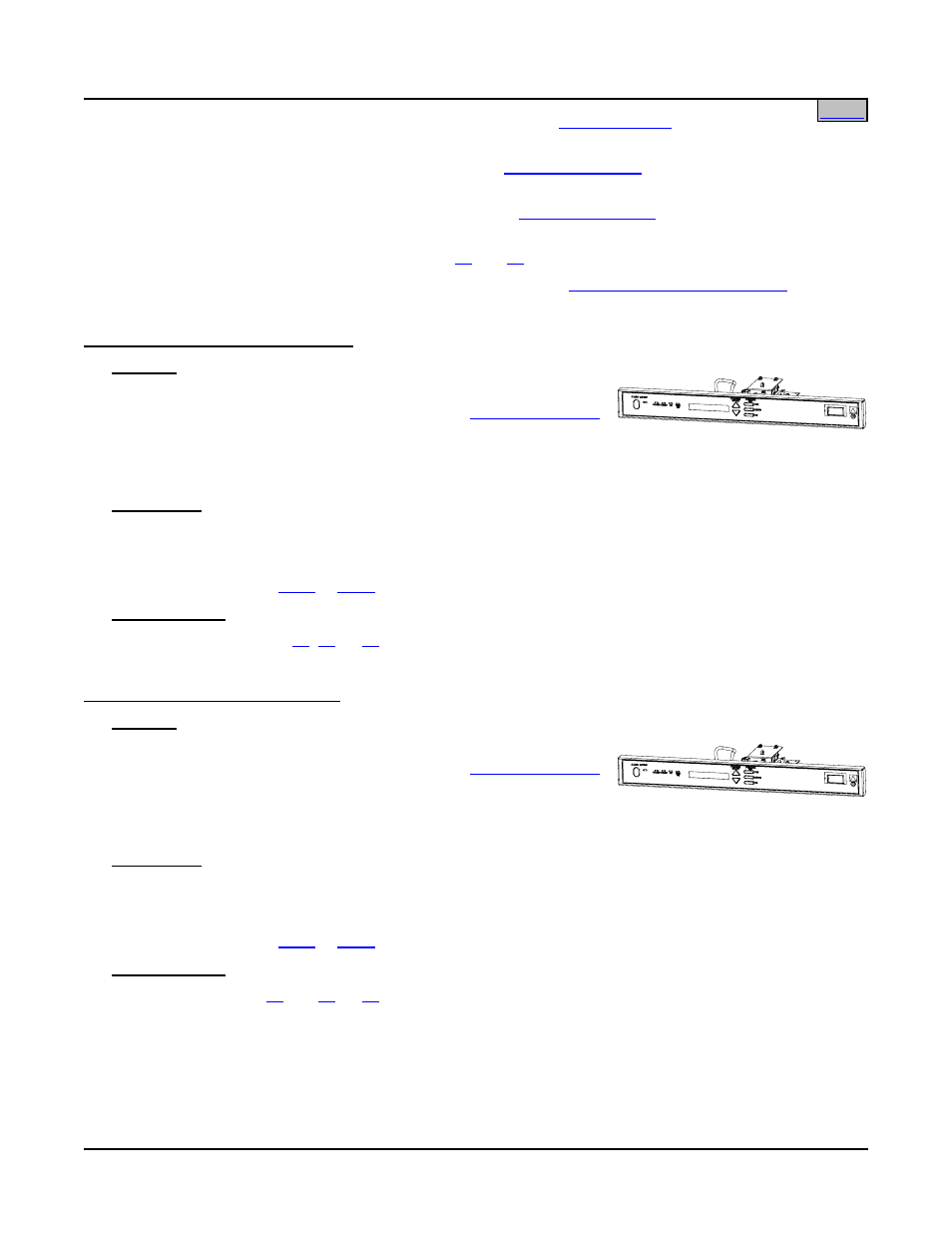

List 10: MCA (Standard Application)
Features
♦ Provides one standard application Meter-Control-Alarm (MCA)
assembly (Configuration No. 534876). Refer to SPECIFICATIONS
for a description of MCA functions.
♦ Alarms: Major, Minor, High Voltage #1, High Voltage #2, Battery on Discharge, 50% Battery On
Discharge, AC Fail, MCA Audible, Test/Equalize Mode.
Restrictions
Only one (1) MCA per power system is required.
Mounts in the Main Bay Distribution Cabinet.
Cannot be ordered with List 2 or List 5 .
Ordering Notes
1) Order one (1) List 10, 11 , 12 , or 13 as required per power system.
List 11: MCA (Special Application)
Features
♦ Provides one special application Meter-Control-Alarm (MCA)
assembly (Configuration No. 534877). Refer to SPECIFICATIONS
for a description of MCA functions.
♦ Alarms: Major, Minor, High Voltage #1, Rectifier Module Fail
Major, Battery On Discharge, Rectifier Module Fail Minor, AC Fail, MCA Audible, Fuse/Circuit Breaker.
Restrictions
Only one (1) MCA per power system is required.
Mounts in the Main Bay Distribution Cabinet.
Cannot be ordered with List 2 or List 5 .
Ordering Notes
1) Order one (1) List 10 , 11, 12 , or 13 as required per power system.
