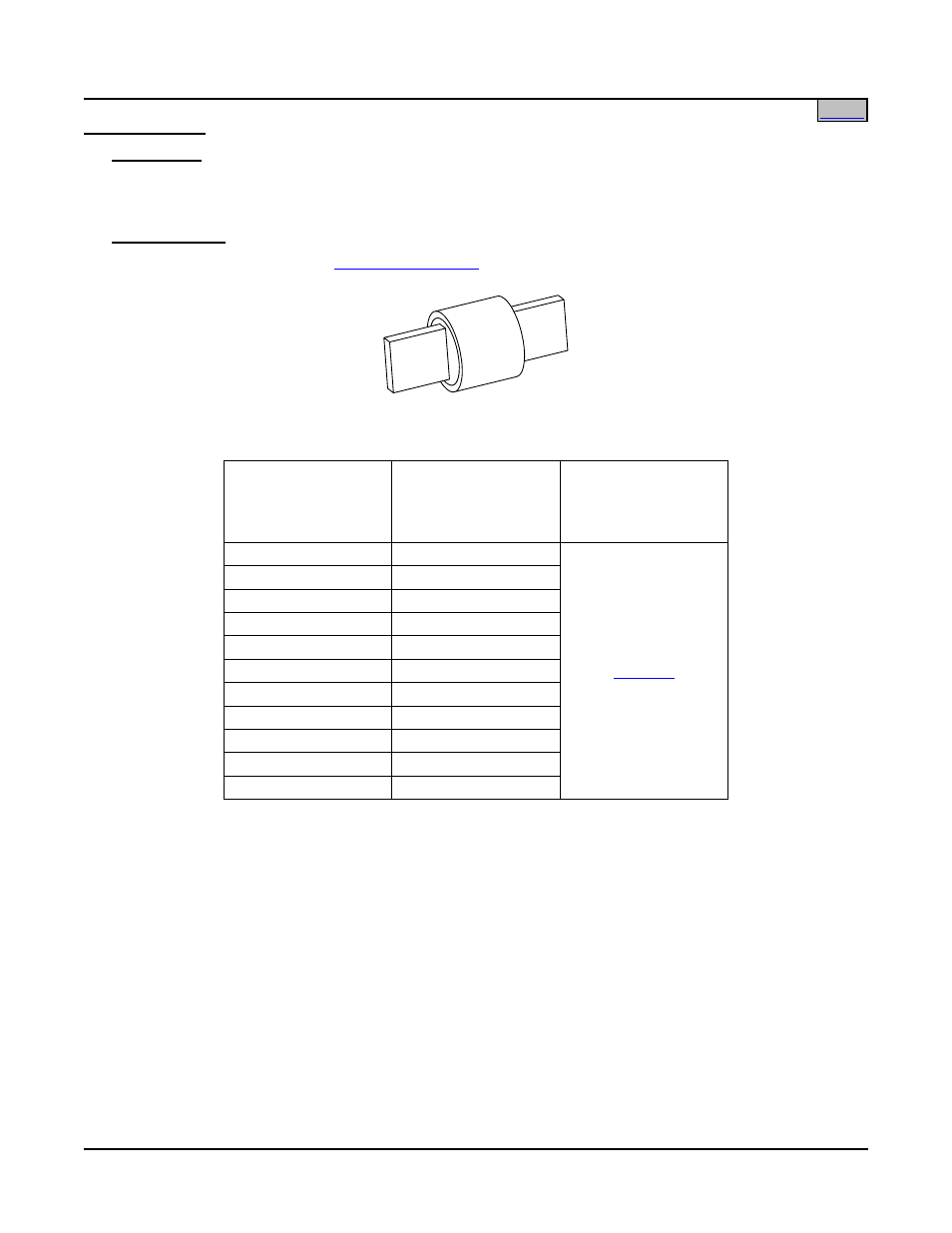

TPH-Type Fuses
Restrictions
A bus arrangement must be specified that contains a TPH-type fuseholder.
Load should not exceed 80% of device rating.
Ordering Notes
1) Order fuses as required per
TPH Fuse
Ampere Rating
Part Number
for wire size and
lug selection,
refer to the
following table
70 119437
80 119438
100 119440
150 119581
200 119582
225 119583
250 119584
300 119585
400 119586
500 119587
600 119588
Table 4
TPH Fuses
