ACCESSORY DESCRIPTIONS
Relay Racks
Features
♦ The system is factory mounted to the relay rack specified when ordered.

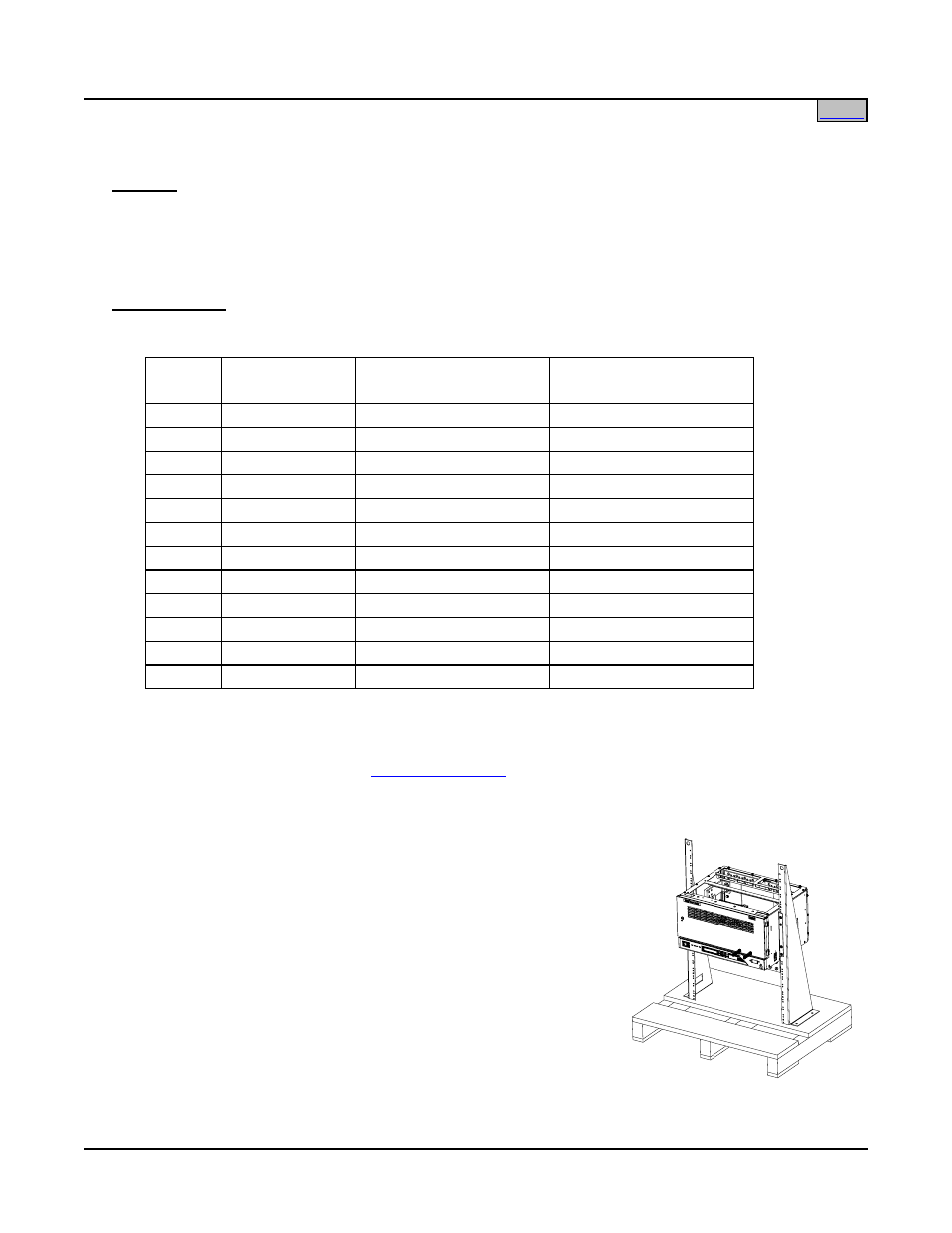

♦ System components may be ordered without a relay rack. When ordered without a relay rack, the system
is mounted on shipping brackets bolted to a shipping skid. The shipping brackets can mount a system up
to 20U high.
Ordering Notes
1) Order from relay racks listed in Table 1.
Part
Number
Size
Available Mounting
Positions (1RU = 1-3/4”)
Notes
543151
25.656”H x 23”W
13RU
Welded (Notes 1, 3)
543152
27.406”H x 23”W
14RU
Welded (Notes 1, 3)
543153
36.156”H x 23”W
19RU
Welded (Notes 1, 3)
543154
39.656”H x 23”W
21RU
Welded (Notes 1, 3)
543155
43.156”H x 23”W
23RU
Welded (Notes 1, 3)
543156
51.906”H x 23”W
28RU
Welded
543157
71.156”H x 23”W
39RU
Welded
543161
6’0”H x 23”W
37RU
Welded
543162
7’0”H x 23”W
45RU
Welded
541340
7’0”H x 23”W
45RU
Seismic (Notes 1, 2, and 3)
543163
7’6”H x 23”W
48RU
Welded
543164
8’0””H x 23”W
51RU
Welded
Note 1: Complies with Bellcore Seismic Zone 4 requirements.
Note 2: The DC output cabling may be restricted by the top angle of the relay rack.
Note 3: Seismic (Zone 4) compliant ONLY when system DOES NOT contain any of the
following components:
Table 1
Available Relay Racks
Ship Loose Option
