SAG581126000
System Application Guide
Issue AD, November 23, 2009
Spec. No. 581126000 (Model 700
NVBA
)
Page 114 of 123
This document is property of Emerson Network Power, Energy Systems, North America, Inc. and contains confidential and proprietary information owned by Emerson Network Power, Energy
Systems, North America, Inc. Any copying, use, or disclosure of it without the written permission of Emerson Network Power, Energy Systems, North America, Inc. is strictly prohibited.

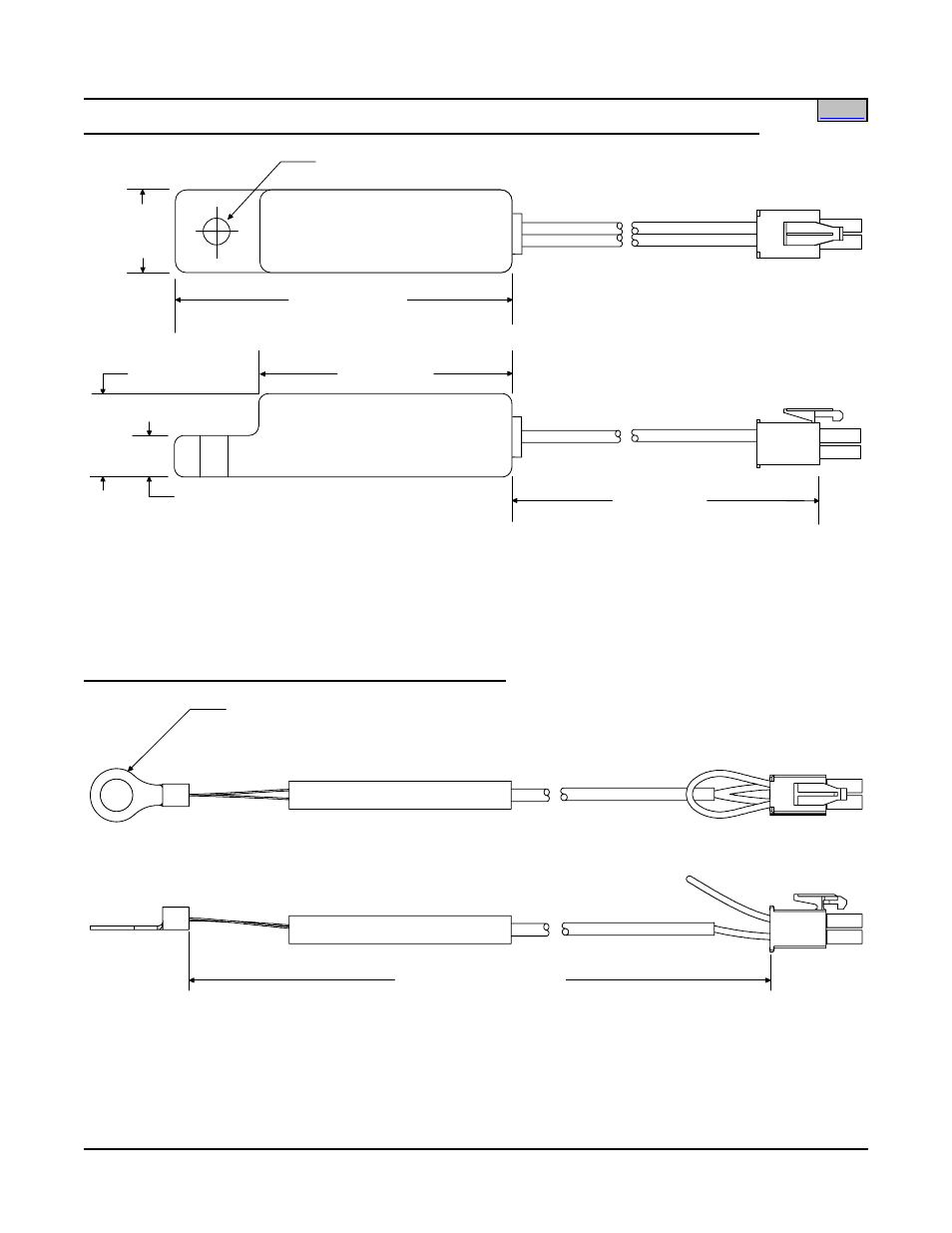

Optional Digital Battery Charge Temperature Compensation Probe (P/N 107021 and 106824)
2.25 (57.15)
0.75 (19.05)
0.35 (8.89)
300 (7,620)
or
1200 (30,480)
0.75
(19.05)
3.00 (76.2)
0.25 (6.35) DIA.
Note: All dimensions are in inches and (millimeters).
Part No. 107021 (25 foot)
Part No. 106824 (100 foot)
Optional Analog Battery Temperature Probe (P/N 521262)
NOTE: All dimensions are in inches and (millimeters).
180 ±3.00 (4,572 ± 76)
PROBE
ATTACH TO NEGATIVE BATTERY TERMINAL
(CLEARANCE FOR 5/16 (7.94) HARDWARE)
