Emerson 1500VA User Manual
Liebert, Ups c, Caution
Liebert
®
PSA
™

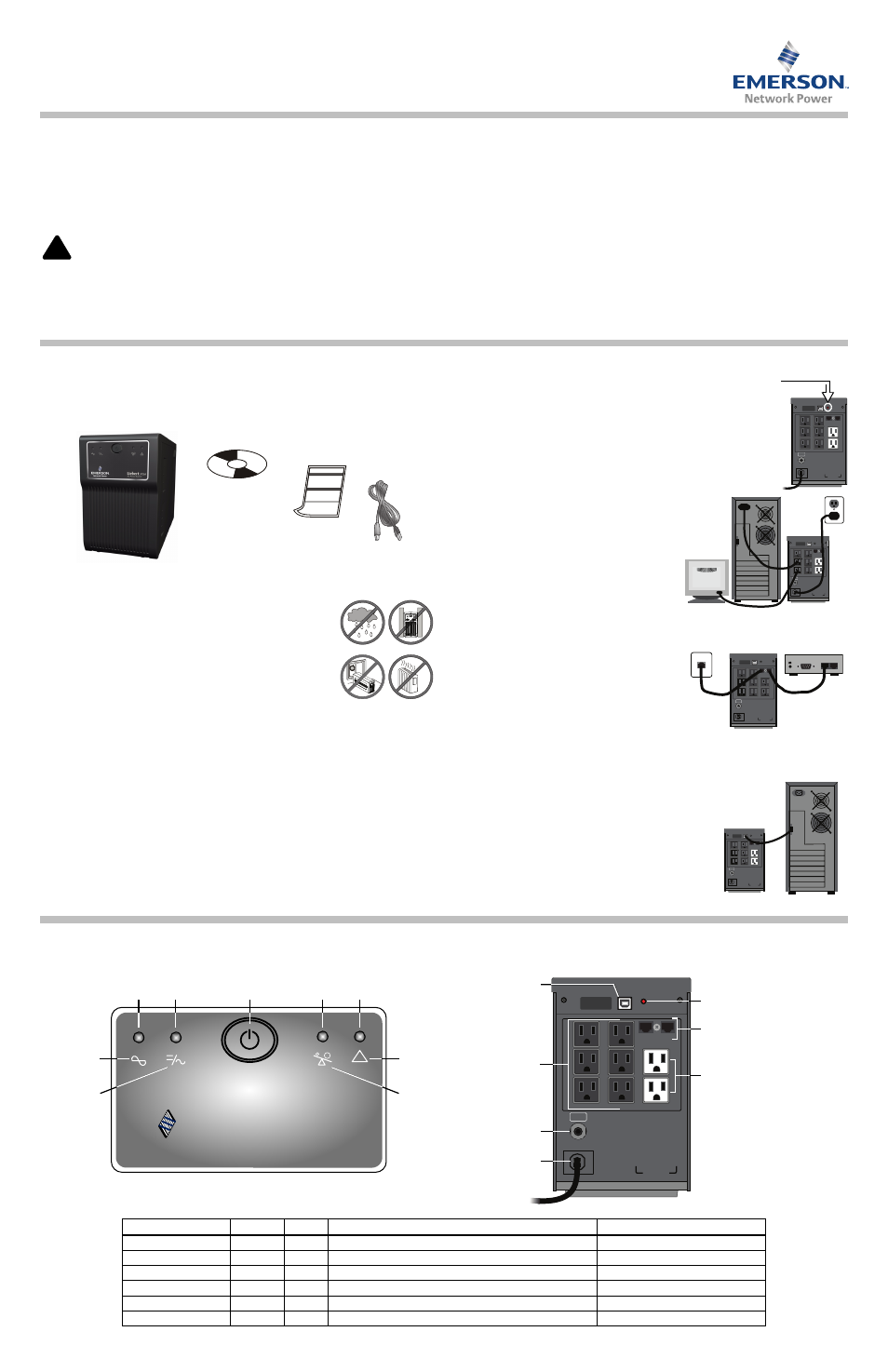

Quick-Start Guide - 1000VA/1500VA, 120V
I
MPORTANT
S
AFETY
I
NSTRUCTIONS
SAVE THESE INSTRUCTIONS
This manual contains important instructions that should be followed during
installation and maintenance of the UPS.
• Intended for installation in a controlled environment.
• Maximum ambient temperature 104°F (40°C).
• Do not connect equipment that may overload the UPS or demand half-wave
rectification, such as a laser printer.
• Connect the UPS only to an earthed / grounded outlet that meets national and local
electrical safety guidelines.
• Locate the UPS near a wall outlet. Do not use an extension cord between the UPS and
the outlet.
• The Liebert PSA has been designed for small office/home office use only; it is NOT
recommended for use in life-support applications.
• In the event of an emergency, press the OFF button and disconnect the power cord
from the AC power supply to properly disable the UPS.
• Do not attach power strips or surge suppressors to the UPS.
• Do not attempt to service any parts inside the UPS except the batteries. Failure to adhere
to this could cause personal injury or equipment malfunction and void the warranty.
• For technical support:
• Visit
or
• Send an e-mail to
.
S
ETUP
UPS C
ONTROLS
AND
C
ONNECTIONS
!
CAUTION
To reduce the risk of fire, connect only to a circuit provided with
20 amperes maximum branch circuit overcurrent protection in
accordance with the national code, ANSI/NFPA 70.
Step 1 Inspect the Package
Inspect the package and the UPS upon receipt. Notify the carrier and dealer of visible
damage.
Step 2 Decide Where to Place the UPS
The UPS must be placed indoors, protected from water, direct
sunlight and excessive heat.
Provide at least 4" (100mm) of clearance on all sides of the unit
for proper ventilation.
Step 3 Charge the UPS Battery Before
Use
The UPS battery is not charged before shipping. It MUST be charged before use.
• Connect the UPS power cord to a wall outlet and charge for at least eight hours.
Note: If battery is placed in storage, charge the battery every six months if kept at
5°F to 85°F (-15°C to 29°C)—or every three months if kept at 86°F (30°C) or higher.
Step 4 Start the UPS
After the battery is fully charged:
• Turn on the UPS by pressing the On/Off button (see Figure 1 below).
LED 1 should be illuminated (green), indicating the UPS is operating in Normal Mode.
Step 5 Check the Site Wiring Fault Indicator
See figure at right for the location of the Site Wiring Indicator on the rear of
the UPS.
• Check the rear of the UPS to make sure the Site Wiring Fault indicator is
NOT illuminated.
Caution: If the Site Wiring Fault indicator is illuminated, have a qualified
electrician check the wall receptacle wiring and fix any problems.
Step 6 Connect the Loads
The UPS has three battery backup outlets that
provide power when the UPS operates on battery
(see Figure 2 below).
• Plug the loads into the battery backup outlets
on the rear of the UPS.
Caution: Do not connect a laser printer to the
UPS.
Step 7 Connect the Network Surge Protection
The UPS has two RJ-45 jacks for network lines (see
Figure 2 below).
• Connect a single-line network cable into the RJ-45
network surge protection IN jack on the rear of the
UPS.
• Connect an RJ-45 cable from the OUT jack on the
rear of the UPS to a port on a PC or network device
such as a router.
Step 8 Set Up Liebert shutdown software
To start using the Liebert shutdown software:
• Install the Liebert shutdown software. See the software
user manual for installation instructions.
• Connect one end of the USB cable (supplied) to the USB
port on the rear of the UPS. Connect the other end to a
USB port on the computer. See the software user manual
for operating instructions.
UPS
USB
cable
Quick-start
guide
Liebert
shutdown
software
CD
USB
Battery Power Supply
AC OUTPUT
AC INPUT
AC INPUT
BREAKER
Full Time Surge Protection
IN
OUT
SITE WIRING
FAULT
USB
Battery Power Supply
AC OUTPUT
AC INPUT
AC INPUT
BREAKER
Full Time Surge Protection
IN
OUT
SITE WIRING
FAULT
RS232
USB
Battery Power Supply
AC OUTPUT
AC INPUT
AC INPUT
BREAKER
Full Time Surge Protection
IN
OUT
SITE WIRING
FAULT
USB
Battery Power Supply
AC OUTPUT
AC INPUT
AC INPUT
BREAKER
Full Time Surge Protection
IN
OUT
SITE WIRING
FAULT
UPS Status, Alarm Conditions and Alerts
Condition
LED
Color
Solid/Flashing
Audible Alarm
Normal Mode
LED 1
Green
Solid (steady glow)
(None)
Battery Mode
LED 2
Amber
Flashes every 3 seconds
Every 3 seconds
Battery Low
LED 2
Amber
Flashes every 1 second till end of discharge (EOD)
Every 1 second
Overload
LED 3
Amber
Solid (steady glow) until load drops or breaker trips
Continuous
Battery Replacement
LED 4
Red
Flashes every 1 second for 5 seconds only
Every 1 second for 5 seconds only
Fault
LED 4
Red
Solid (steady glow) until UPS shuts down after 5 seconds
Continuous until UPS shuts down
LED 2
(amber)
!
EMERSON
™
Network Power
Liebert
®
PSA
AC Power System
USB
Battery Power Supply
AC OUTPUT
AC INPUT
AC INPUT
BREAKER
Full Time Surge Protection
IN
OUT
SITE WIRING
FAULT
LED 3
(amber)
Fault
symbol
Overload
symbol
Utility
symbol
On/Off
button
LED 1
(green)
Surge outlets (2)
NEMA 5-15R
USB
interface
Battery backup
outlets (6)
NEMA 5-15R
Input
breaker
Site Wiring
Fault indicator
LED 4
(red)
Battery
symbol
NEMA
5-15P
RJ-45 jacks (2) -
network protection
Figure 2 - Rear Panel
Figure 1 - Front Panel LEDs
