SAG581126000
System Application Guide
Issue AD, November 23, 2009
Spec. No. 581126000 (Model 700
NVBA
)
Page 46 of 123
This document is property of Emerson Network Power, Energy Systems, North America, Inc. and contains confidential and proprietary information owned by Emerson Network Power, Energy
Systems, North America, Inc. Any copying, use, or disclosure of it without the written permission of Emerson Network Power, Energy Systems, North America, Inc. is strictly prohibited.

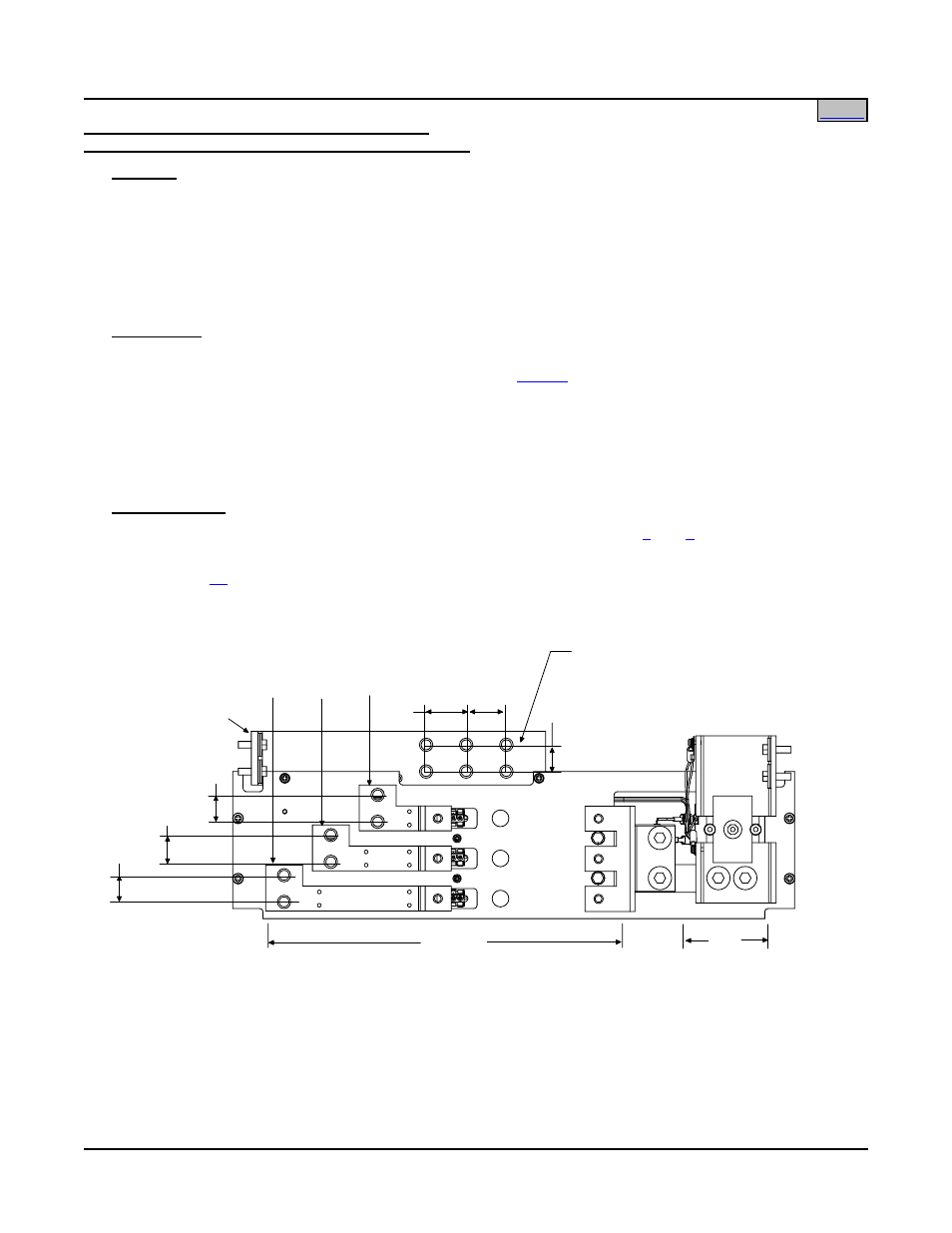

List CB: Distribution Bus Module (P/N 513738)
(3) GJ/218 Circuit Breaker System Positions w/LVLD
Features
♦ Single Voltage Distribution (+24V)
♦ 500A Maximum Capacity
♦ (3) Load Distribution Circuit Breaker Mounting Positions
(100 to 600A GJ/218-Type) NOTE RESTRICTIONS
♦ Low Voltage Load Disconnect Contactor
Restrictions
Can be installed in any bus position A-C (row 1-3) of a 1-, 2-, 3-, or 4-bus row cabinet. Cannot be installed in
bus position D (row 4) of a four-bus row cabinet. See also
for similar application in bus position D
(row 4).
Panel is designed to mount circuit breakers in the following possible combinations:
(3) 100A to 250A
(1) 100A to 250A and (1) 300A or 400A
(1) 600A
Ordering Notes
1) Order circuit breakers and associated jumper kits as required per Tables
2) Order load lugs (two hole, 3/8” bolt clearance hole, 1” centers) as required for each distribution position
per Table
LOADS
LVD
CONTACTOR
1"
1"
1"
LOAD
CONNECTIONS
GROUND
BUSBAR
LOAD RETURN
CONNECTIONS
1.5"
1"
3/8-16 CAPTIVE NUT, 12 PLACES
(CUSTOMER MUST SUPPLY
BOLTS AND ADDITIONAL
HARDWARE. BOLT LENGTH: 1-1/4")
