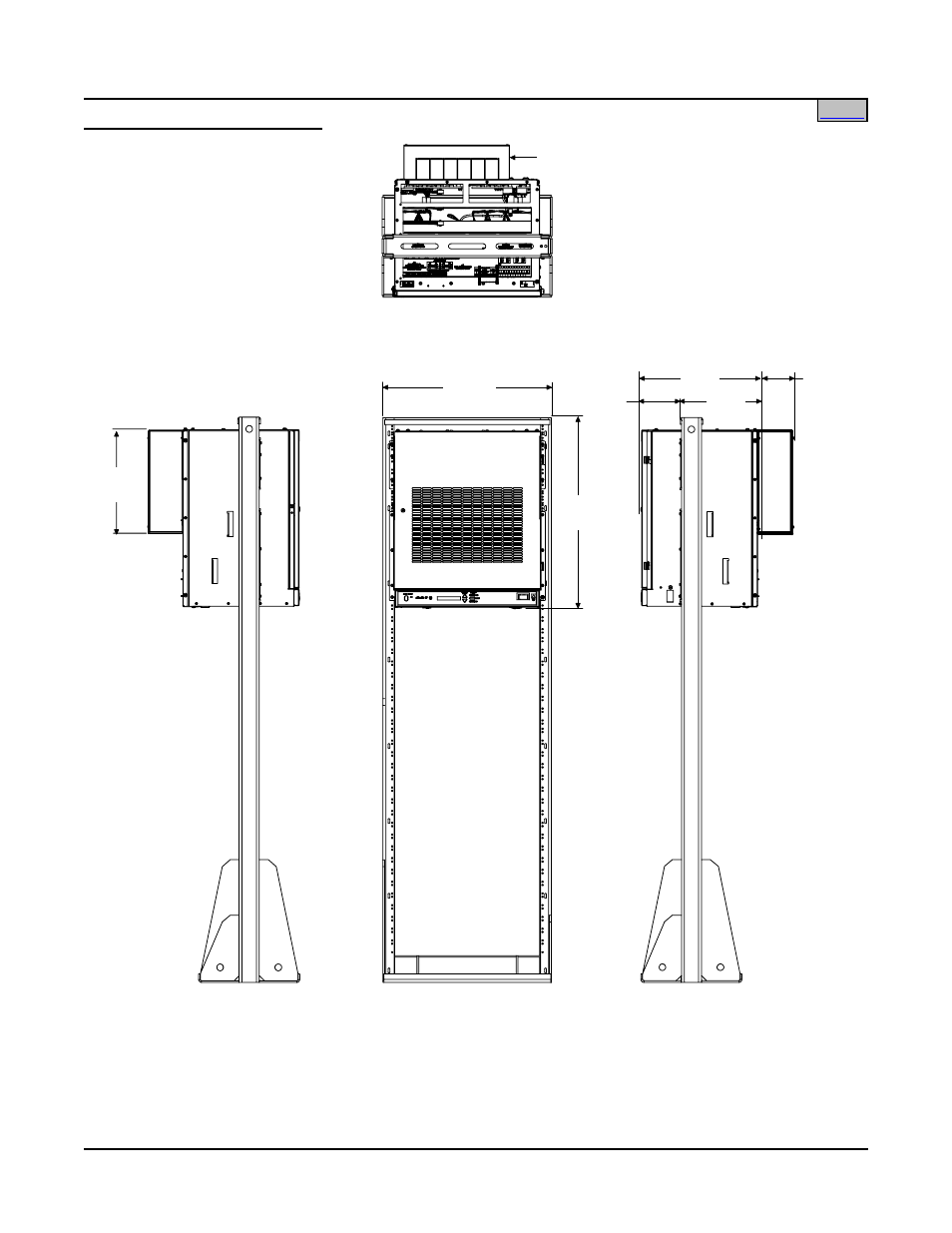

List 23 (Three Bus Row Cabinet)
Left Side View
Front View
Right Side View
Top View
26.25
(15U)
24.75
(typical)
Note 4.
11.50
6.00
17.50
5.25
(Note 4)
15.44
(Note 4)
Notes:
1. All dimensions are in inches,
unless otherwise specified.
2. Weight in LBS.
(minus relay rack)
Four Bus Row Cabinet
Net:
Shipping:
3. Finish: Textured Gray (M500-147)
4. Housing present only if equipped
with List RC, RD or RE (battery
disconnects).
Refer to PD588705100
for Module Mounting
Shelf Assembly
dimensions.
