System Application Guide SAG581126000
Spec. No. 581126000 (Model 700 NVBA ) Issue AD, November 23, 2009
Page 113 of 123
This document is property of Emerson Network Power, Energy Systems, North America, Inc. and contains confidential and proprietary information owned by Emerson Network Power, Energy
Systems, North America, Inc. Any copying, use, or disclosure of it without the written permission of Emerson Network Power, Energy Systems, North America, Inc. is strictly prohibited.

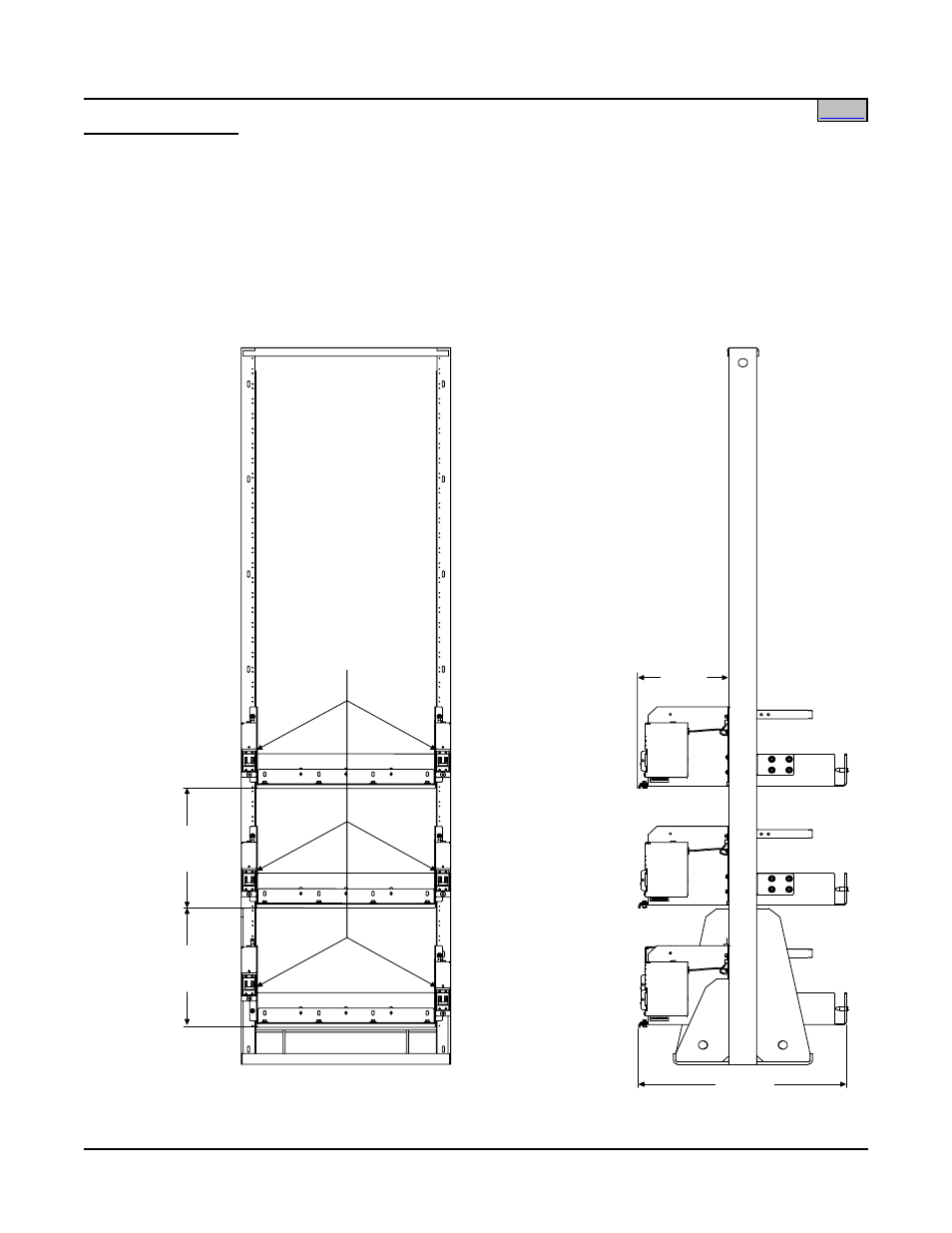

List 93 (Battery Tray)
Notes:
Three trays shown as example.
Max. available per rack: four.
Dimensions are in inches.
Net Weight Per Tray, Less Batteries:
With Circuit Breaker Option: 35 lbs.
Without Circuit Breaker Option: 29 lbs.
1.
2.
3.
FRONT VIEW
12.25 or 14.00
as ordered
12.25 or 14.00
as ordered
Optional Battery
Disconnect Circuit
Breakers.
RIGHT SIDE VIEW
24.437
9.781
