SMA Sunny Data Control V.5.0 - Manual (Page 70)

Managing Data and Saving Data Locally SMA Technologie AG
72 SDC-TEN081450 Technical Description

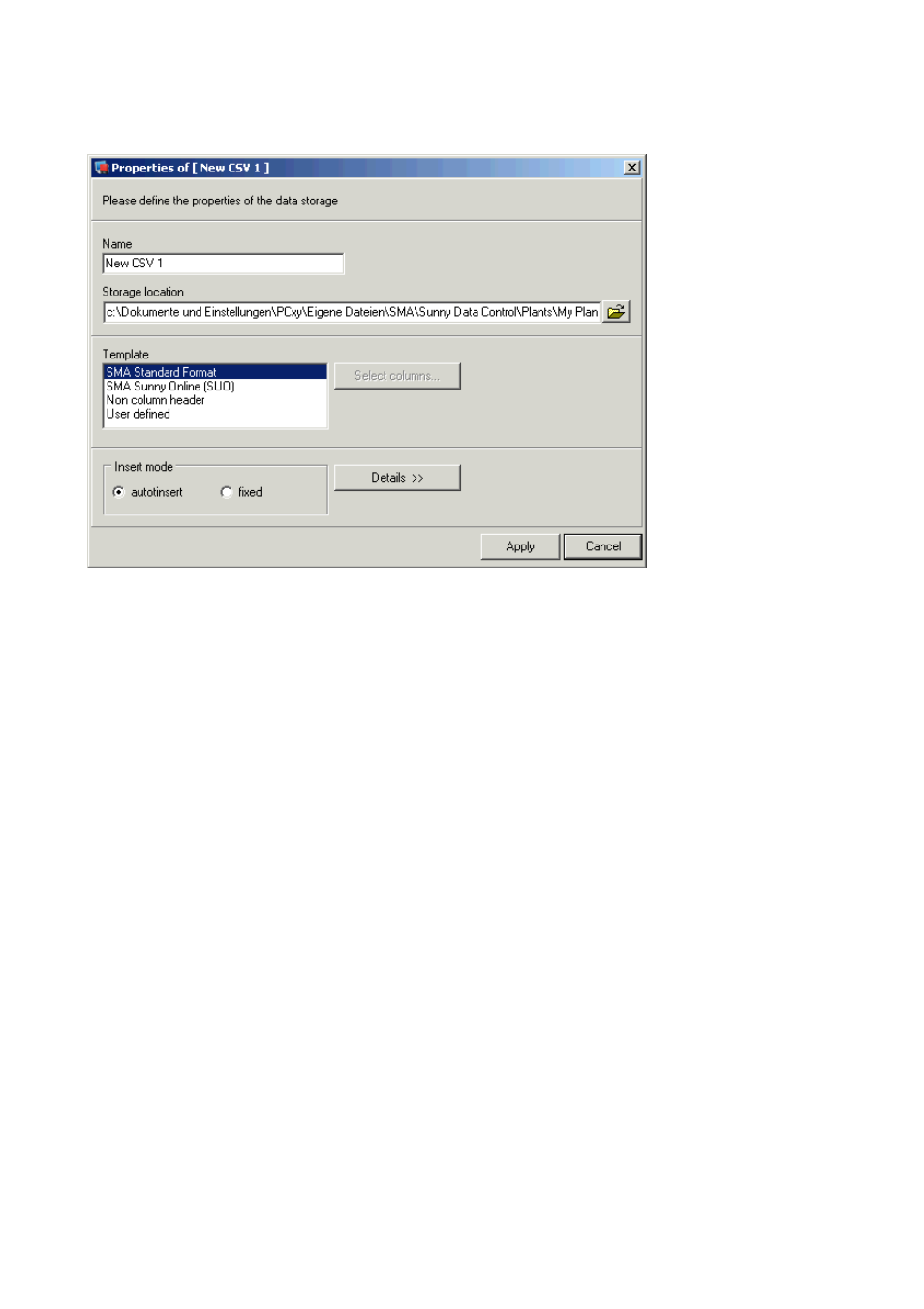

The window for configuration of a new CSV type opens.
4. Type the desired name for the CSV type into the "Name" field.
5. The CSV data is stored in the following directory as a preset/default.
C:\Documents and Settings\“Name of User“\Application Data\SMA\Sunny Data
Control\Plants\“Plant name“\“CSV_1 etc.“
This directory is user-specific, and is set up automatically upon creation of a new CSV type. If
you wish to select a different directory, click on the folder icon.
Selecting a Template
6. Select a template in the "Template" field.
The templates have the following properties:
- SMA standard format: Everything freely selectable, except for the file's column header.
- SMA-Sunny Online (SUO):
Column header as in Excel / SUO files, predefined values, no column selection. Column
header as in Sunny Data.
- No column header:
No column header, predefined values, manual column selection.
- User-defined: Everything freely selectable.
