SMA Sunny Data Control V.5.0 - Manual (Page 51)

Displaying Data SMA Technologie AG
Technical Description SDC-TEN081450 53
10 Displaying Data
Various options are at your disposal for the display of current operating data. In order to manage
the copious amounts of data which arise, you can combine these options according to the size of
your plant and your display requirements for clarity and informative value.

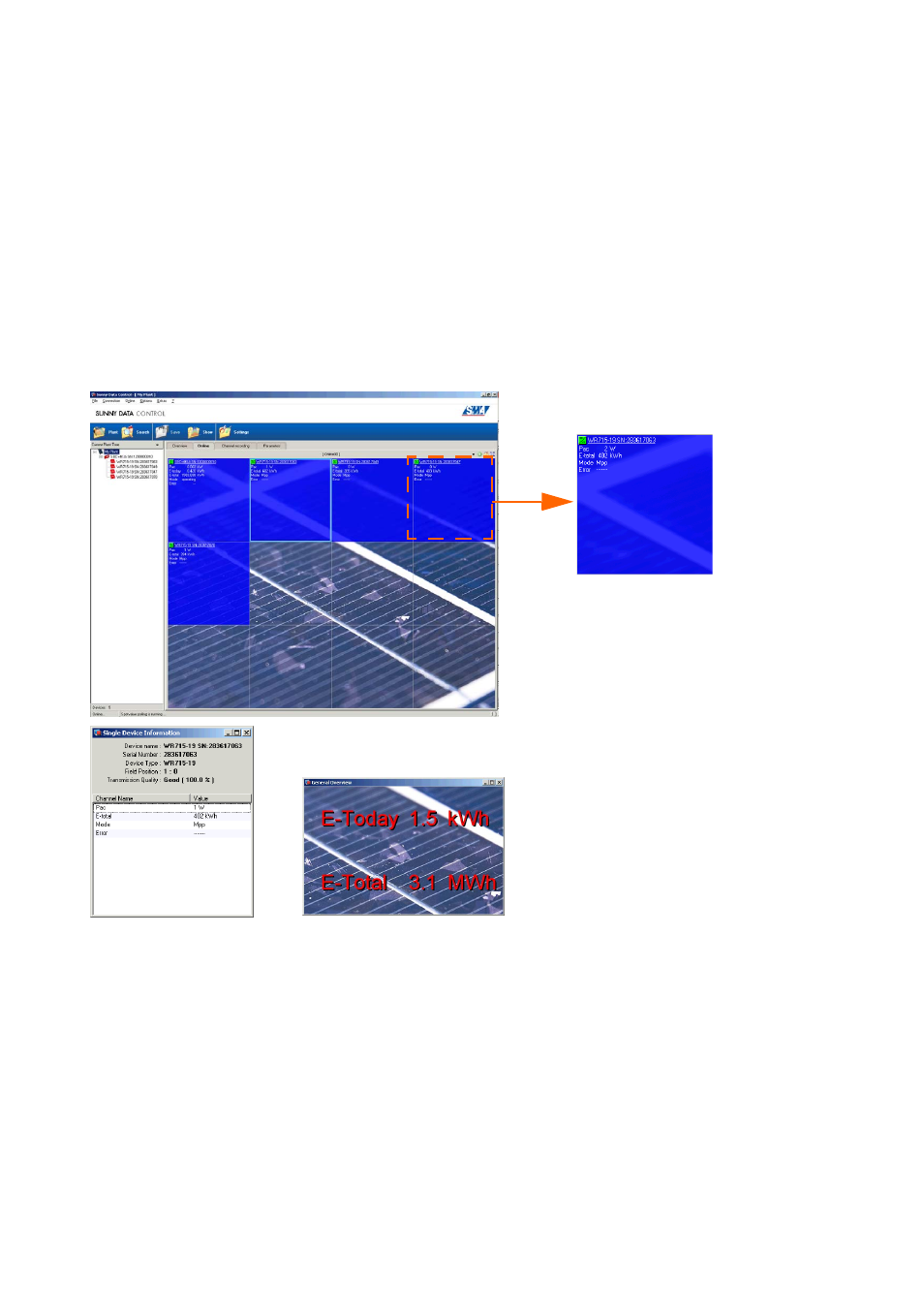

The following display options are available:
• (A) Device overview on the page "Spot values" with individual device fields (A1).
• (B) Individual device information
• (C) Total overview
You can assign each individual display mode to each selected measuring channel. In so doing, it is
also possible to assign several display modes to the same channel.
The following sections describe the individual steps necessary for the display of the present
operating data.
A
B C
A1
