Initial Settings SMA Technologie AG
Technical Description SDC-TEN081450 49
8. 4 Detecting Devices
By default, Sunny Data Control detects the following communication devices: Sunny Beam without
inverters, Sunny Boy Control with the inverters to which it is connected, and an inverter connected
directly to the PC. If necessary, you can narrow the scope of detection, as described in section 8.4.
1 "Narrowing the Scope of Device Detection" (Page 50).

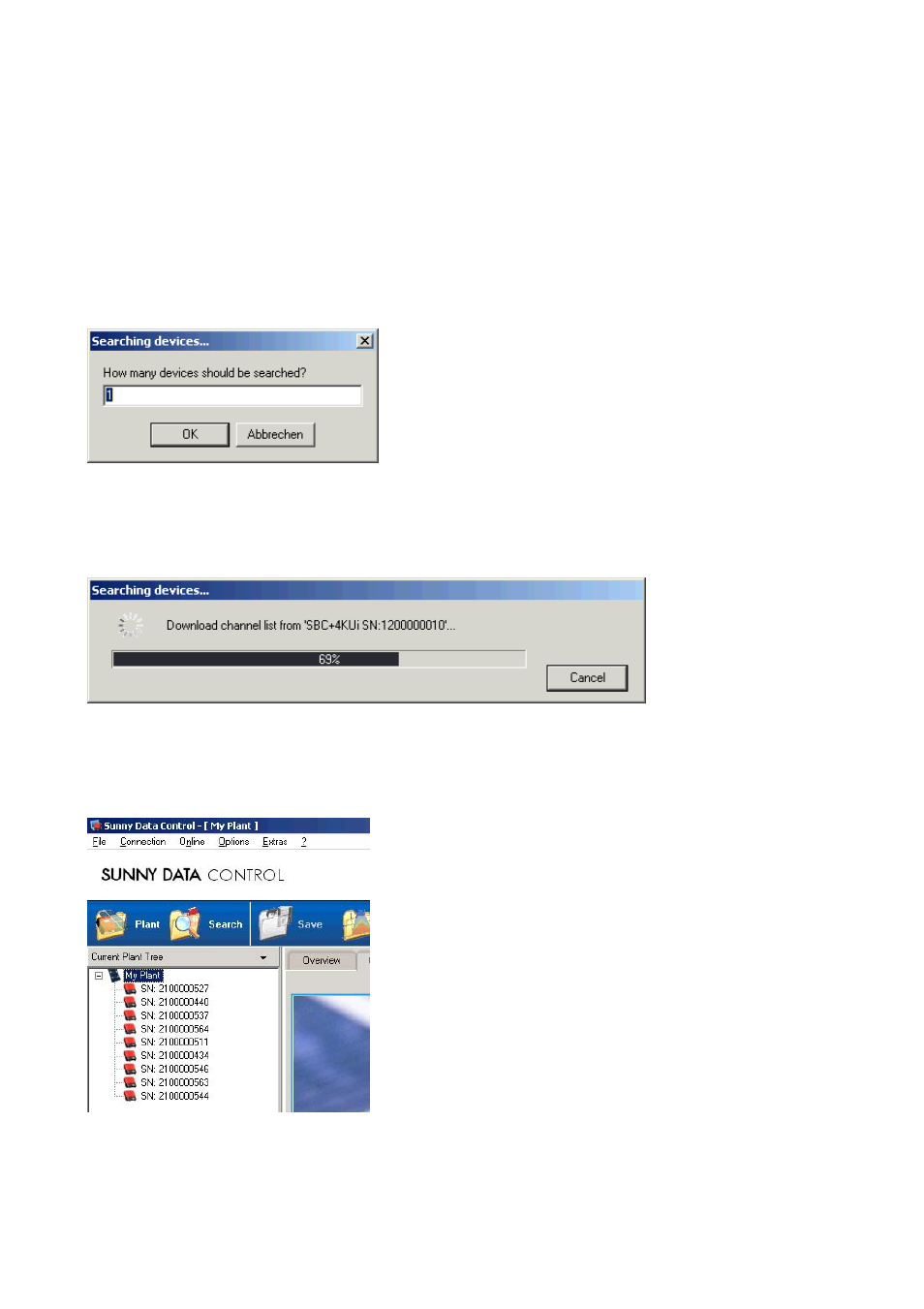

1. Choose "Options/Device detection" or click on the icon "Search".
The "Searching for plant devices" window opens.
2. Enter the number of devices to be searched for.
3. Click on .
The detection process starts. The devices are searched for.
4. Wait for the search to end.
The window closes when the search has ended (see illustration above).
The devices detected are listed on the plant diagram.
