SMA Sunny Data Control V.5.0 - Manual (Page 60)

Displaying Data SMA Technologie AG
62 SDC-TEN081450 Technical Description
10. 5 Changing the Color Behavior of the Device Fields

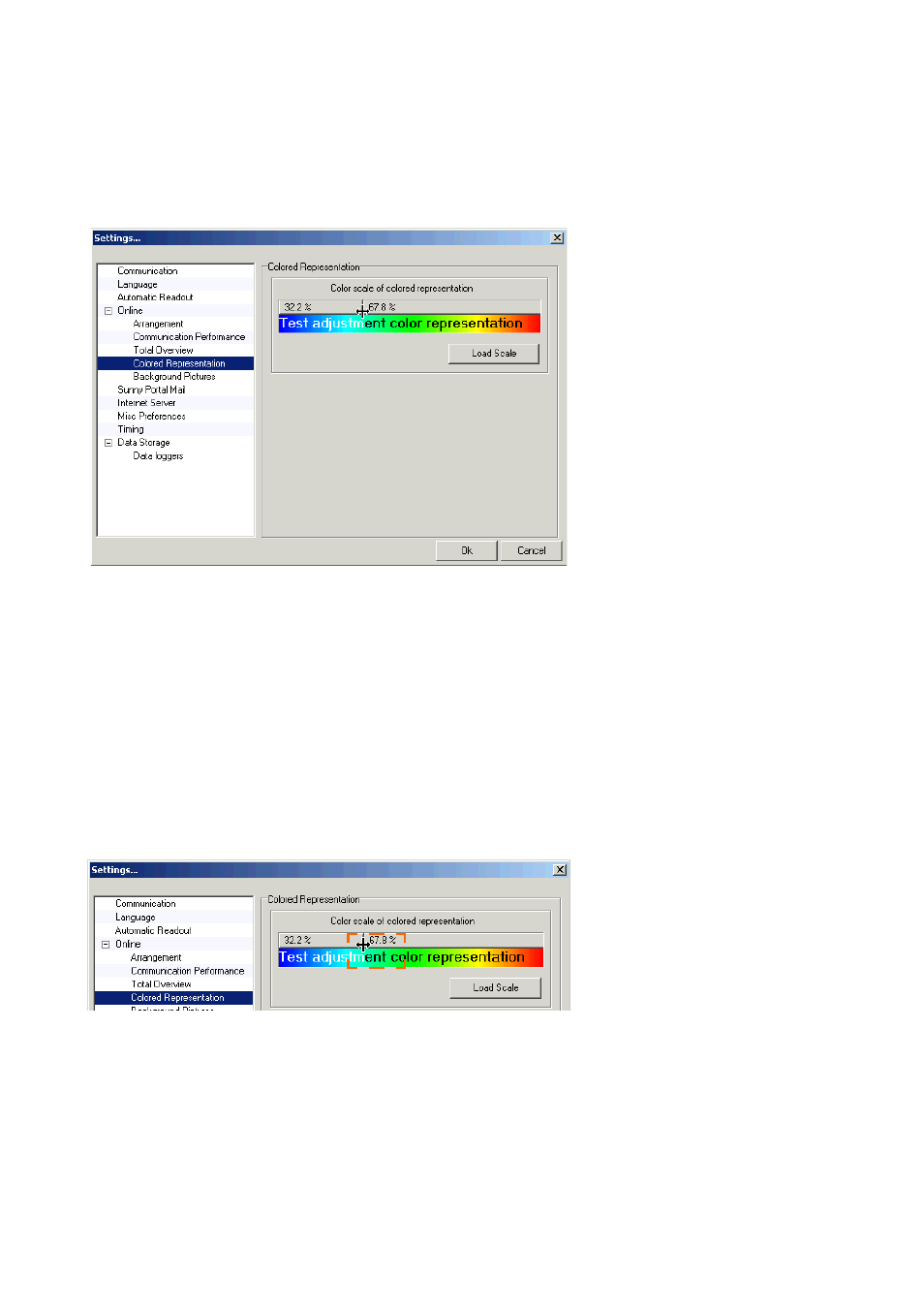

1. Choose "Options / Settings"
2. Select "Spotvalue Request / Colored Representation".
3. Click on .
The "Load Palette for Performance Display" window opens.
4. Select a color palette from the list, and click on .
To learn how to create your own color palette, see section 13. 6 "Creating a Color Palette for
Device Fields" (Page 142).
Changing the Text Color
You can define which of the displayed text colors is to be used until which threshold background
color is reached.
5. Move separation mark (see figure below)
