Monitoring and Controlling the Broadcast
Monitoring channels using the Monitor Wall
Monitoring channels using the Monitor Wall
The Monitor Wall is a page from which you can monitor a collection of up to 18 channels.
The collection of channels is referred to as a view, which is configured by the designated
system administrator. The Monitor Wall displays a confidence monitor for each channel
assigned to the selected view.
Below each confidence monitor is a button that provides a shortcut to the Channel Control
page (see
Monitoring a channel using Channel Control , on page 84), which allows you to
quickly switch to a page that provides tools to control the live channel. Above each
confidence monitor is an indicator that displays the health status of the channel by
changing color. The color of the indicator describes the level of the alerts on the channel’s
associated device:
For more information on alerts, see Viewing active alerts in the service , on page 132.

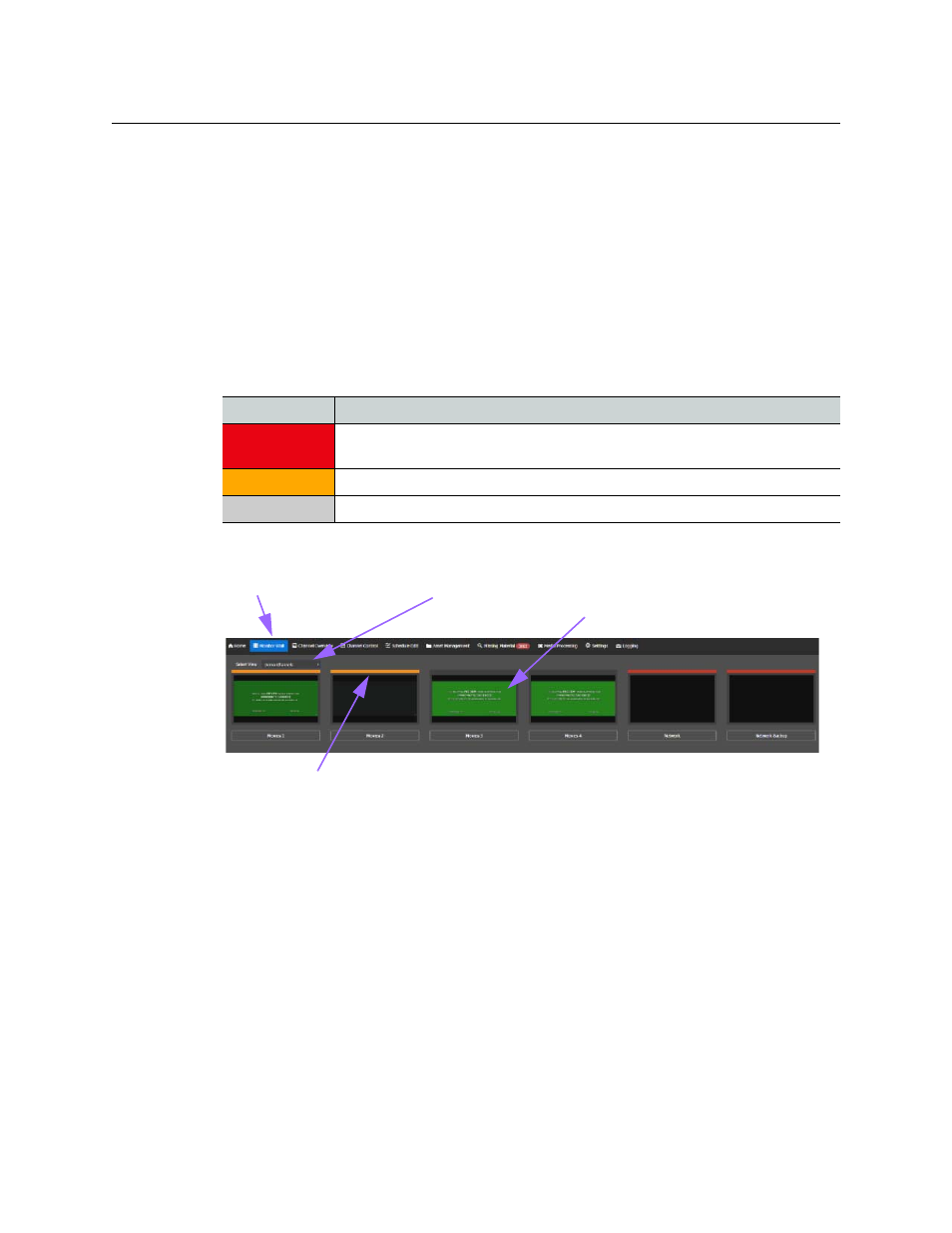

Fig. 4-1: Example of the Monitor Wall page
To view the Monitor Wall:
1 In the top menu, click Monitor Wall.
2 In the Select View list, click the view that you want displayed on the Monitor Wall
page.
3 To control the live channel, click the confidence monitor or button of the channel that
you want to control. The Channel Control page opens with the channel selected.
Monitoring channels using the Channel Overview
The Channel Overview is a page from which you can monitor the playout of a collection of
channels. The collection of channels is referred to as a view, which can be configured by the
designated system administrator.
Alert levels Description
Red Indicates at least one critical or major alert is occurring and immediate action
is required
Amber Indicates at least one minor alert is occurring and action may be required
Grey Indicates the channel health is normal and no action is required
Select View list Confidence monitor
for a channel Monitor Wall page
Health status
