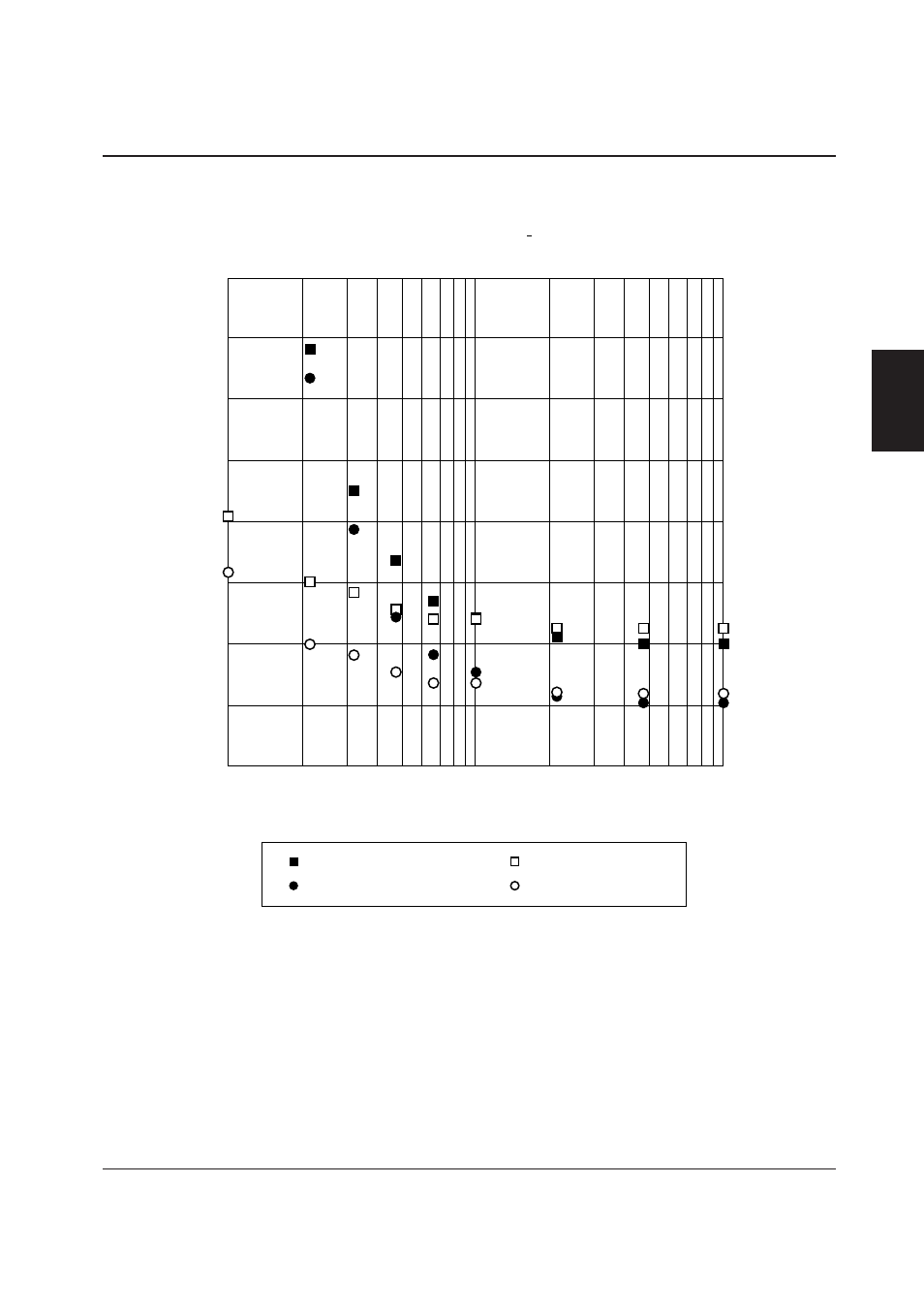

Figure A1 Characteristic chart: Capacitance vs. output impedance when 4X pressure is applied
NOTE:
This characteristic chart simply indicates an approximate trend in the characteristics, which
may vary depending on evaluation environment, parts used, and other factors.
550
500
450
400
350
300
250
200
150
1 10
V I = –3.0V FC = High
V I = –5.0V FC = High
V I = –3.0V FC = Low
V I = –5.0V FC = Low
C [
µ
F]
Output impedance [
Ω
]
100
Capacitance vs. output impedance characteristic when 4X pressure is applied
Load current = 10 mA, Ta = 25
°
C, C1 = C2 = C
0
Capacitor used: Tantalum electrolytic capacitor
