S1F78100Y Series

3–2

EPSON

S1F70000 Series

Technical Manual

PIN DESCRIPTIONS

Pin No.

Pin name

Description

1

V

SS

Input voltage pin (minus side)

2

V

DD

Input voltage pin (plus side)

3

V

O

Output voltage pin

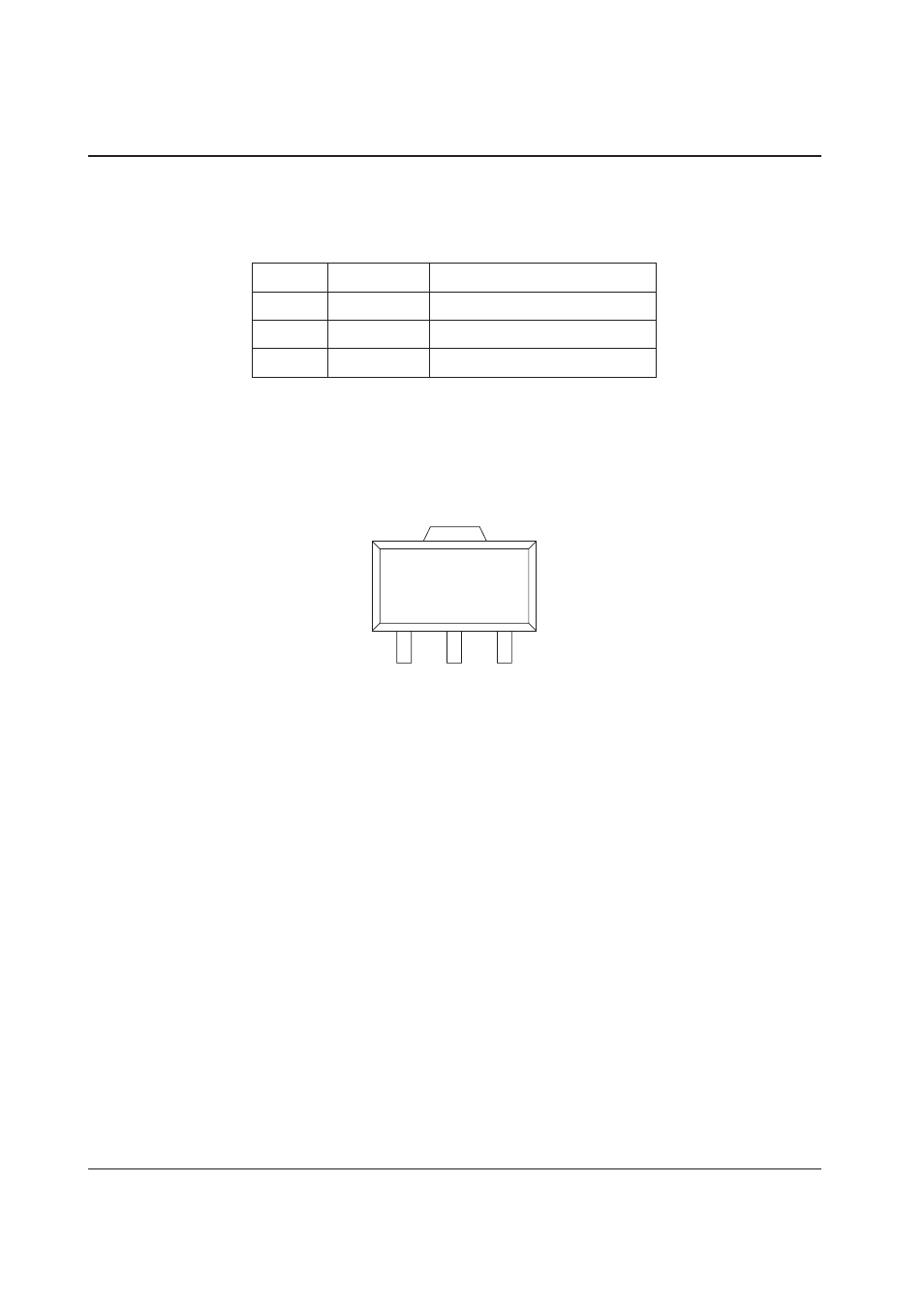

PIN ASSIGNMENTS

1

2

SOT89-3pin

3
