Page 237: Appendix taping information
6–14
EPSON
S1F70000 Series
Technical Manual
Appendix
TAPING INFORMATION

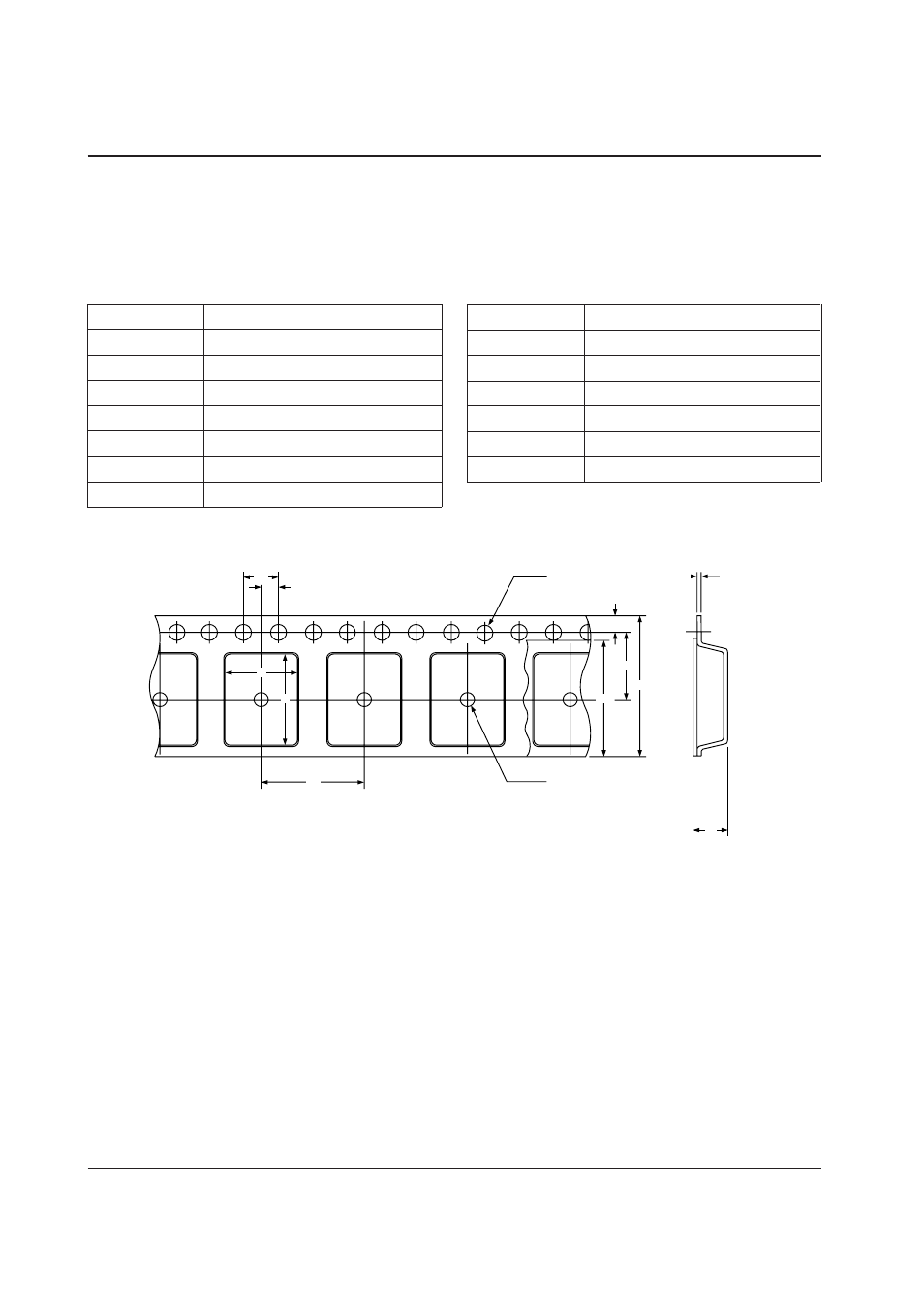

The emboss carrier taping standard is shown in the
following table and figure. This standard conforms to
Dimension code
Dimensions (mm)
P0
4.0
±
0.1
P2
2.0
±
0.1
T
0.3
±
0.05
T2
3.0
±
0.1
W
24
±
0.2
W1
21.5 Typ.
trailer. The tape tension should be approximately 10 N
(1 kgf). A label indicates the part name, quantity and
lot number.
Dimension code
Dimensions (mm)
A
12.4
B
15.6
D0
1.55 +0.1, –0
D1
2.0 +0.1, –0
E
1.75
±
0.1
F
11.5
±
0.1
P1
16
±
0.1
Note
The tape thickness is 0.1 mm Max.
There are no joints in either the cover or carrier tapes.
Less than 0.2% of the total device count is comprised
of non-sequential blanks. There are no sequential
blanks. This does not apply to the tape leader and
the EIAJ RCI009B electronic parts taping specification.
Each tape holds 1,000 devices.
DIA D0
DIA D1
P0
W1
T2
P2
E
T
W
P1
W
F
A
B
EMBOSS CARRIER TAPING STANDARD (SOP2-24pin )
