Tape configuration

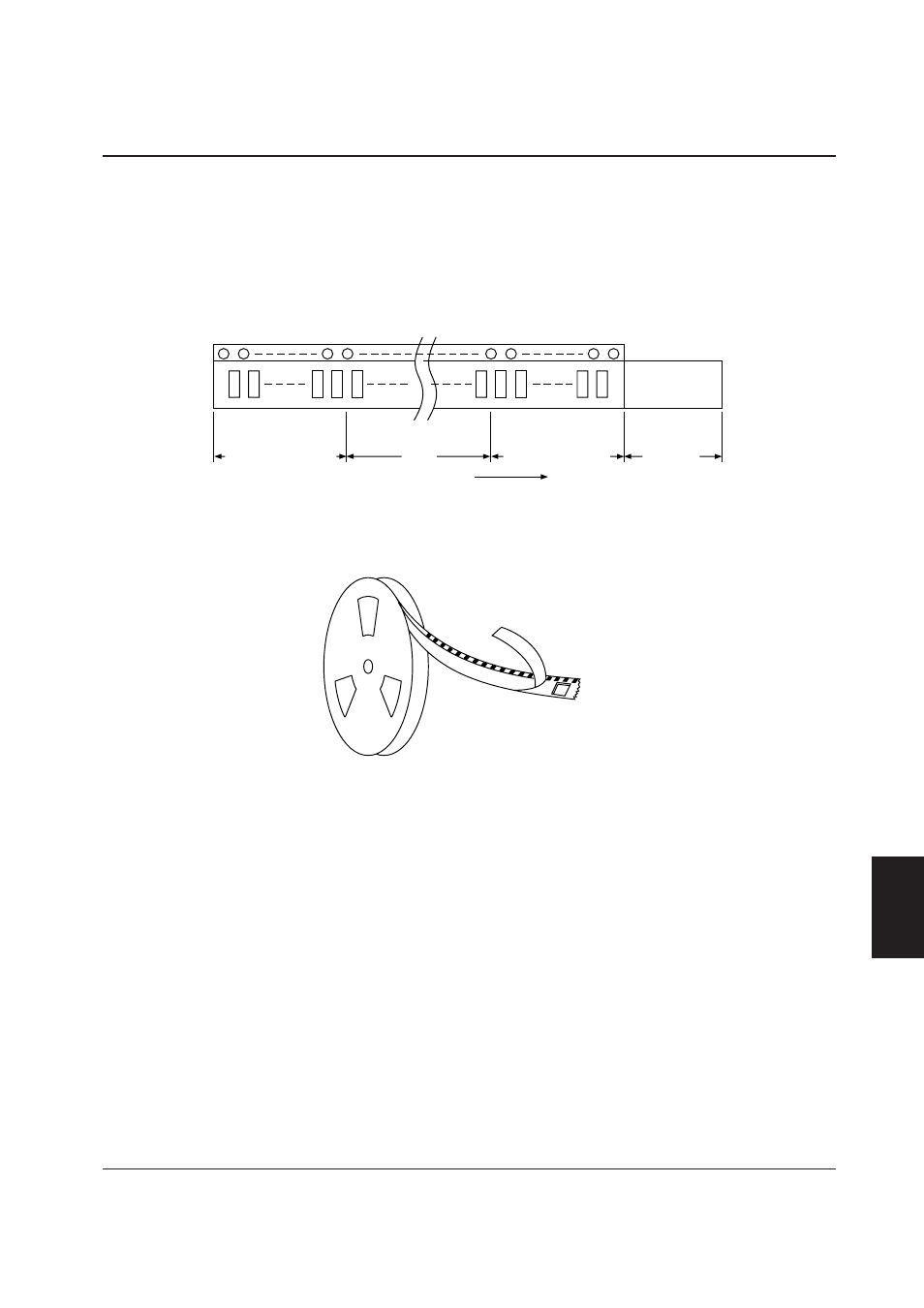

The tape configuration is shown in the following
figure. Blank sections are provided as a leader and
trailer, with 1,000 SOP2 packages fitted into the com-
ponent mounting section between them. At the begin-
ning of the leader section there is an extra section of
tape which contains the cover tape only.
Travel direction
Base
Embossed
carrier
Lead (open) > 40mm
Trailer (open) > 40mm
Cover tape
only
Finish
Start
