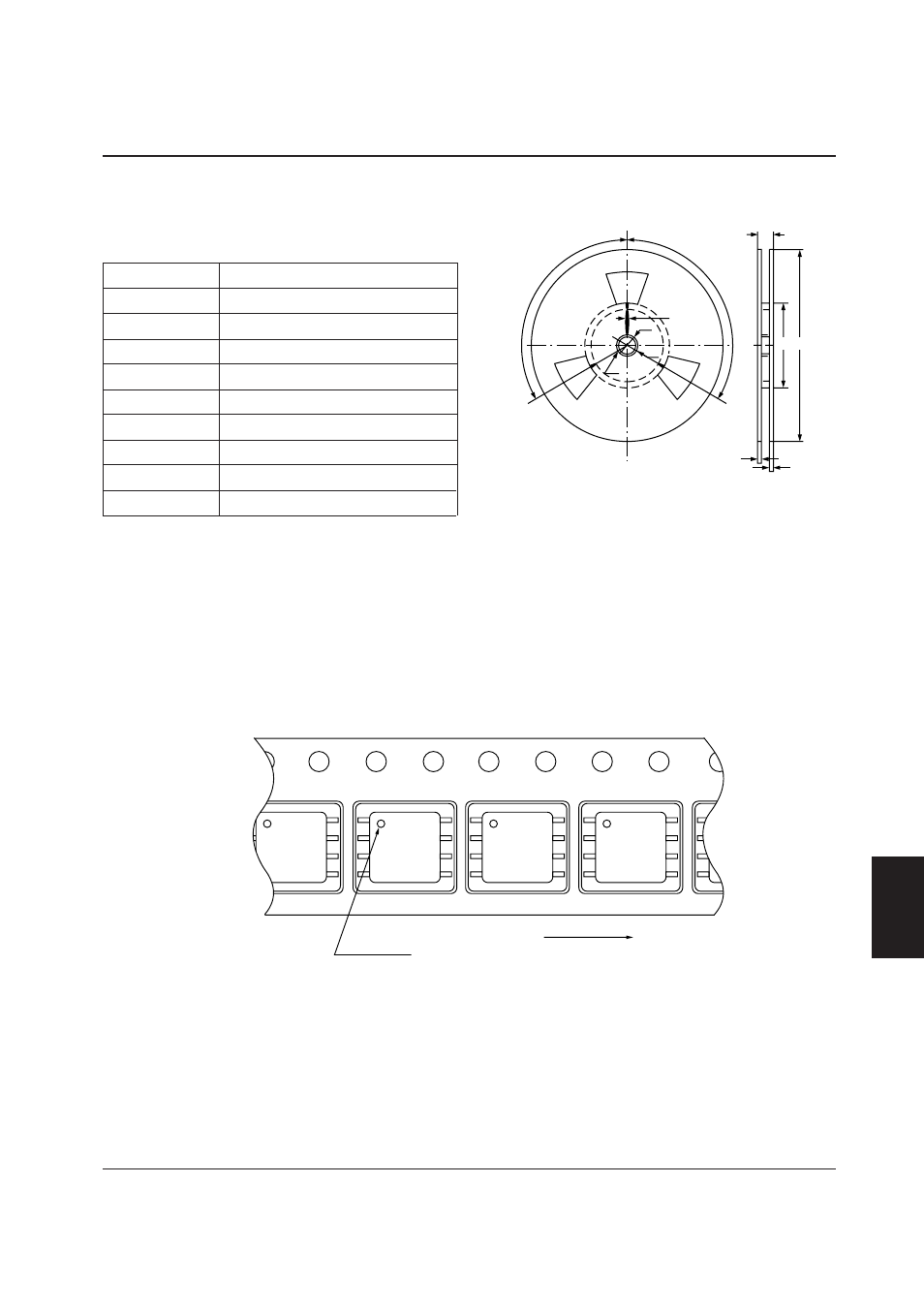

REEL SPECIFICATIONS
The reel specifications are shown in the following table
and figure. The reel is made of paperboard.
Dimension code
Dimensions (mm)
A
330
±
2.0
B
80
±
1.0
C
13.0
±
0.5
D
21.0
±
0.5
E
2.0
±
0.5
W
15.4
±
1.0 (See note.)
W1
2.0
±
0.5
W2
23.4 (See note.)
r
1.0
Note
W and W2 are measured at the reel core.
DEVICE POSITIONING
Type B products are positioned so that the index mark
is on the sprocket hole side of the tape, as shown in the
following figure.
120˚
120˚
E
C
D
r
W
W1
W2
B A
Index mark
Travel direction
