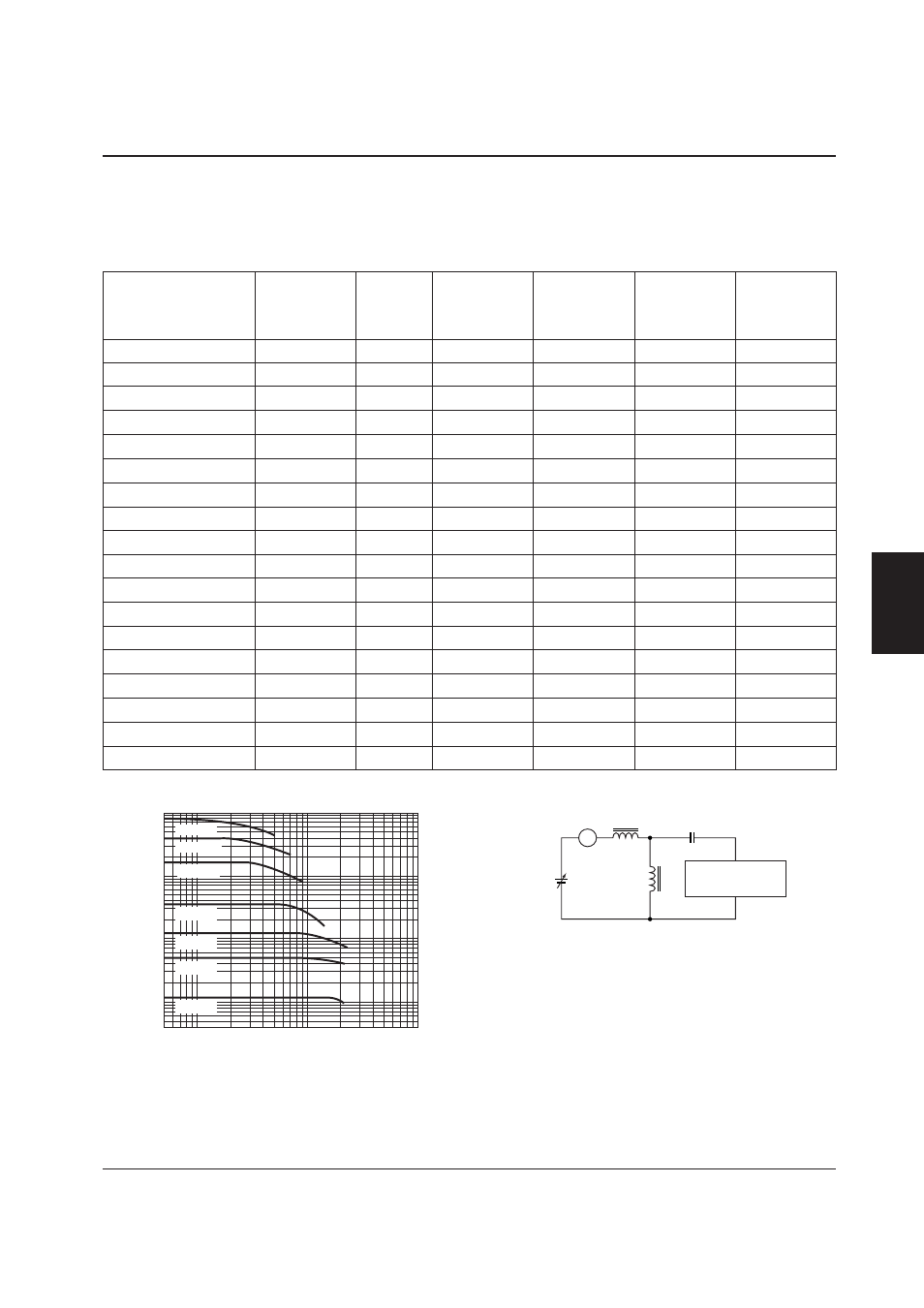

Sample External Components
Leadless Inductors
TDK NKF453232 series magnetically shielded leadless inductors
Inductance LQ frequency
Device
DC resistance Rated current
Device
(
µ
H)
Qmin
(MHz)
frequency
(
Ω
-Max.) (mA-Max.)
(MHz-Min.)
NLF453232-390K 39.0
±
10% 50 2.52 13 1.89 44
NLF453232-470K 47.0
±
10% 50 2.52 12 2.10 41
NLF453232-560K 56.0
±
10% 50 2.52 11 2.34 39
NLF453232-680K 68.0
±
10% 50 2.52 10 2.60 36
NLF453232-820K 82.0
±
10% 50 2.52 10 2.86 34
NLF453232-101K 100.0
±
10% 50 0.796 9 3.25 32
NLF453232-121K 120.0
±
10% 50 0.796 8 3.64 30
NLF453232-151K 150.0
±
10% 50 0.796 7 4.16 28
NLF453232-181K 180.0
±
10% 40 0.796 6 5.72 26
NLF453232-221K 220.0
±
10% 40 0.796 5.5 6.30 24
NLF453232-271K 270.0
±
10% 40 0.796 5 6.90 23
NLF453232-331K 330.0
±
10% 40 0.796 4.5 7.54 23
NLF453232-391K 390.0
±
10% 40 0.796 4 8.20 21
NLF453232-471K 470.0
±
10% 40 0.796 3.8 9.20 19
NLF453232-561K 560.0
±
10% 40 0.796 3.6 10.50 18
NLF453232-681K 680.0
±
10% 40 0.796 3.4 12.00 17
NLF453232-821K 820.0
±
10% 40 0.796 3 13.50 16
NLF453232-102K 1000.0
±
10% 40 0.252 2.5 16.00 15
Characteristic response Measurement circuit
1000
10
Inductance (
µ
H)
100
DC current (mA)
1000 500 50
500
100
50
10
5
1
33
µ
H
10
µ
H
4.7
µ
H
1.0
µ
H
150
µ
H
390
µ
H
820
µ
H
DC
supply
5H
20,000 µF
Lx
A
YHP4255A
universal bridge
