The Atlas Fuel System Changing the Price for the Mechanical Retail Pump
Page 30 MDE-4363F Atlas™ Fuel Systems Owner’s Manual · September 2011
3 There are three range arms located in the variator section. One sets the tenths of a cent
position, one sets the one cent position, and the last one sets the ten cents position. To change a
setting, grasp a range arm and raise it to clear the range arm locator, and relocate the range arm
to the required setting. Ensure that the range arm is totally bottomed on its setting. Repeat this
for all range arm settings, if required.

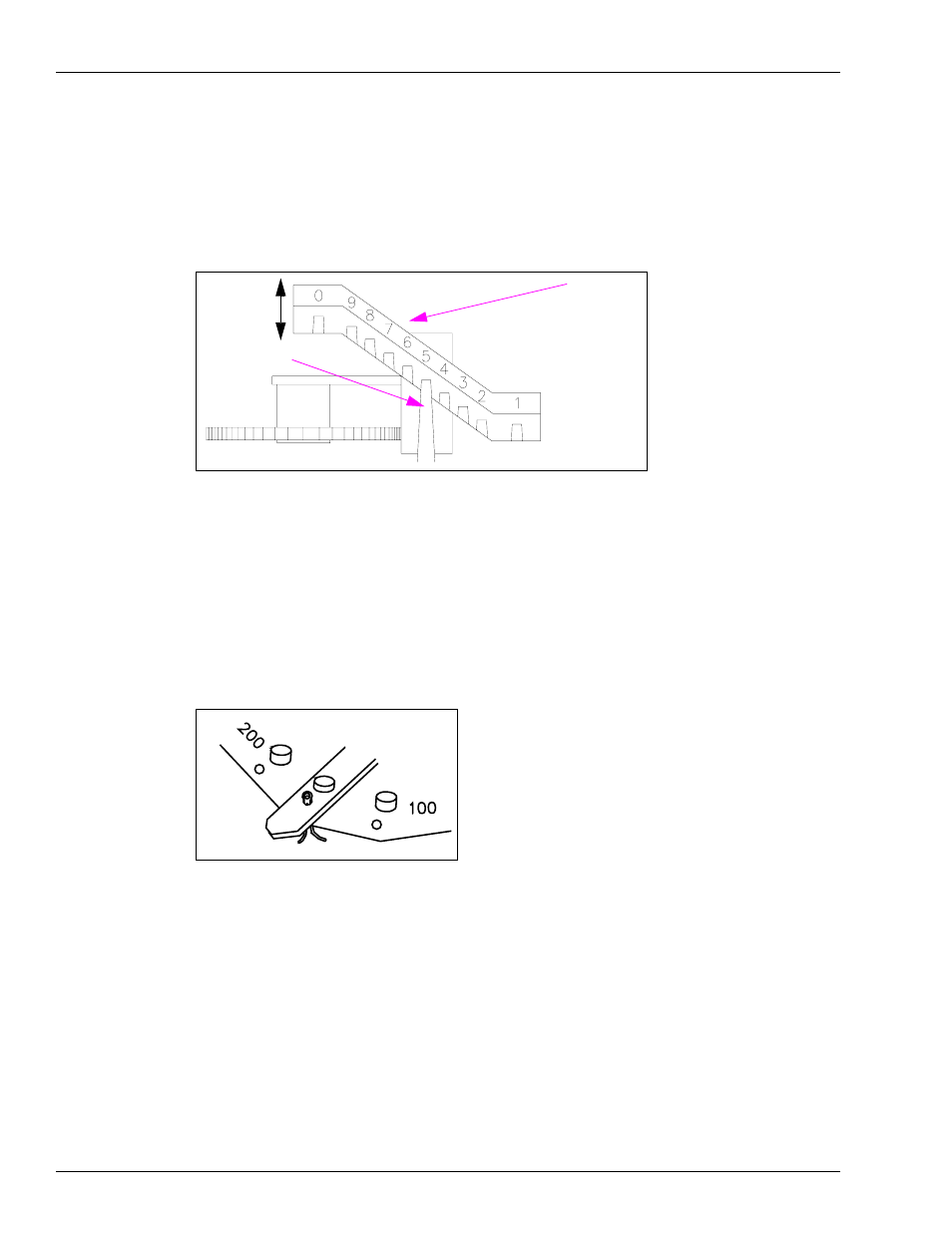

Figure 3-17: Location of Range Arms
4 To change the money unit setting, locate the control lever which is located above the variator
section on the same level as the price display. There are three available positions: 0.00, 1.00,
and 2.00. Remove the cotter pin, grasp the lever, and raise it slightly to clear the position
locators. Position the lever to the required setting and release. Reinsert the cotter pin through
the lever and plate.
Note: If the lever does not move to the required position, rotate the right hand money wheel
until the lever is free to move.
Figure 3-18: Control Lever
5 If you have difficulty reaching the money shift lever when changing prices, remove the two
cap screws located over the tabs of the bezel assembly. Lift the bezel assembly upward and
remove it from the unit. When reattaching the bezel to the dispensing unit, ensure that the top
inner edge of the bezel assembly slides into the “U” shaped channel located on the upper edge
of the dispensing unit.
Range Arm
Range Arm Locator
