MDE-4363F Atlas™ Fuel Systems Owner’s Manual · September 2011 Page 7
Pump/Dispenser Components The Atlas Fuel System
3 – The Atlas Fuel System
Pump/Dispenser Components
This section provides figures that show the internal and external components of pumps and
provides information about these components. Refer this section as you perform the
procedures in this manual.
Atlas Pump/Dispenser
The external components of a Gasboy ® Atlas pump/dispenser (Mechanical Retail Unit) are
shown in Figure 3-1 . Mechanical units have mechanical digital type displays as opposed to
electronic digital type displays. In units that are Commercial instead of Retail, the external
components are almost the same with the exception that there are no cost displays, Price per
Unit (PPU) and the main display showing only the total fuel pumped.

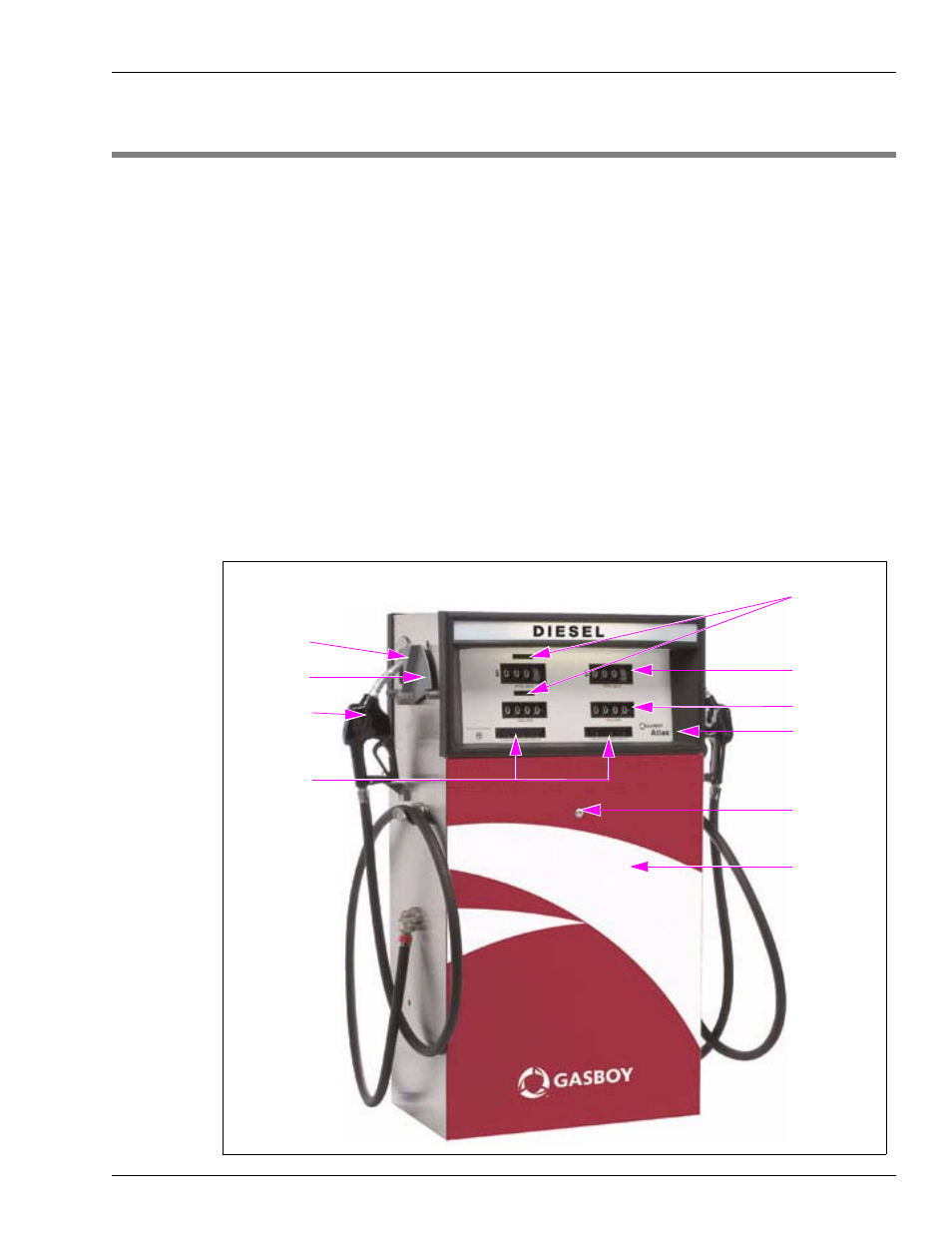

Figure 3-1: Atlas Mechanical Retail Unit
Boot Area
Cost Display
Access Door
Door Lock
Nozzle and
Pump Handle
Control Lever
Gasboy Atlas
Logo
PPU Display
Mechanical Retail Unit
Gallon Display
Totalizers
