SFC1800A Synthesized Frequency Upconverter User Interfaces
TM111 – Rev. 1.0 4-1
User Interfaces
4
4.0 User Interfaces
There are four User Interfaces available for the SFC1800A Upconverter. These are:
Front Panel
Remote Port
Terminal Port
Ethernet Port
4.1 Front Panel User Interface
The Front Panel of the SFC1800A Upconverter allow for complete monitor and control (including
but not limited to operation, calibration, and testing) of all parameters and functions via Monitoring
Ports, a Keypad, LCD Display and Status LEDs.
The front panel layout is shown in Figure 4-1, showing the location and labeling of the front panel.
The front panel is divided into four functional areas: Monitoring Ports, LCD Display, Cursor
Control Arrows, Numeric Keypad, and LED Indicators. Each is described below. Table 4-1 lists
each of these areas. They are further described below.

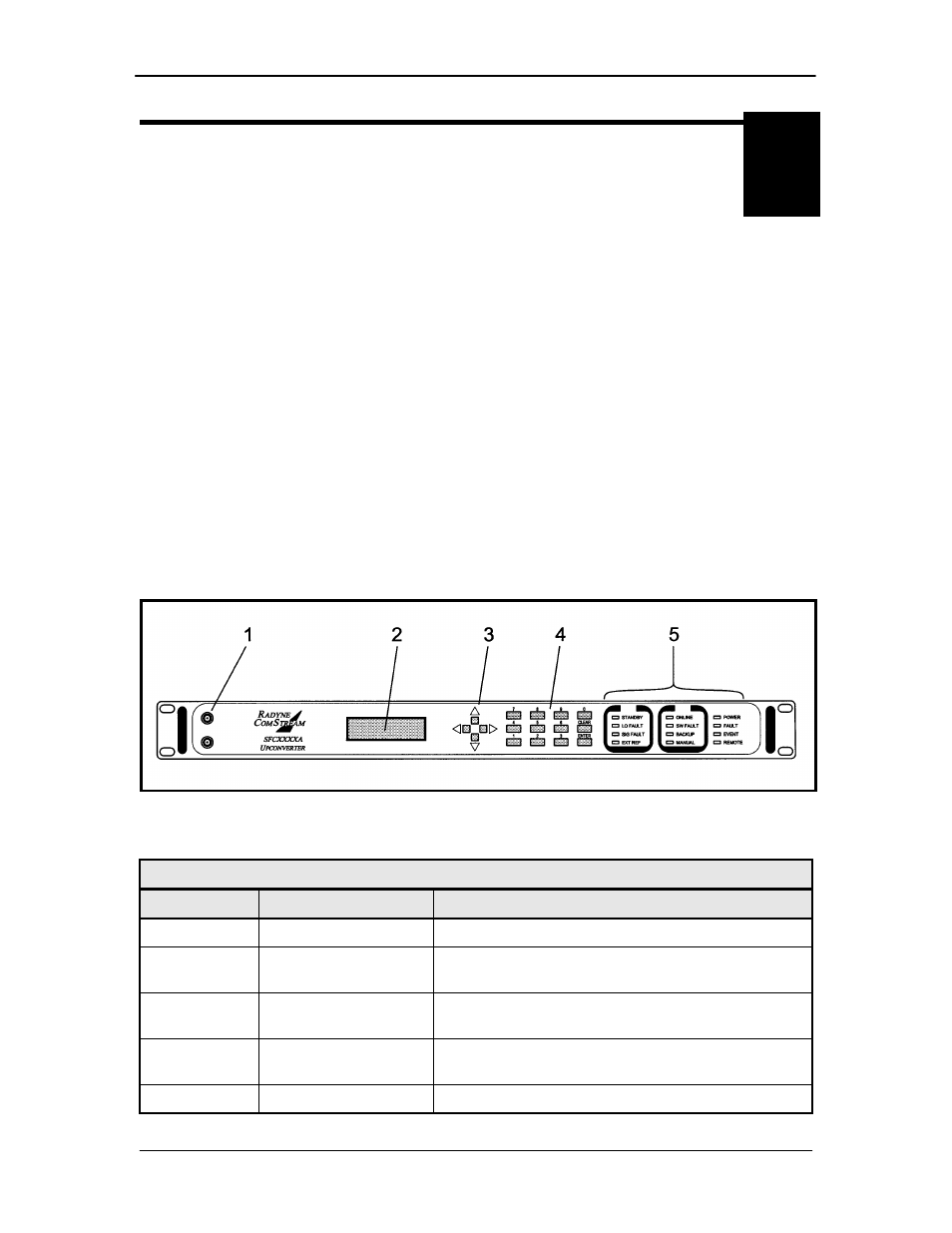

Figure 4-1. SFC1800A Upconverter Front Panel Controls and Indicators
Table 4-1. Front Panel User Interface
Item No. Description Function
1 Monitoring Ports Allow monitoring of the RF and IF Signals.
2 LCD Display Displays SFC1800A Upconverter operating
parameters and configuration data.
3 Cursor Control Arrows Controls the left, right, up, and down motion of the
cursor in the LCD Display window.
4 Numeric Keypad Allows entry of numeric data and Clear and Enter
Function Keys.
5 LED Indicators Displays SFC1800A Upconverter operating status.
