2.3.3.3.4 Zone 3 Connector

ATCA-9405 provides three connectors P30, P31, and P32 for connection to the RTM.

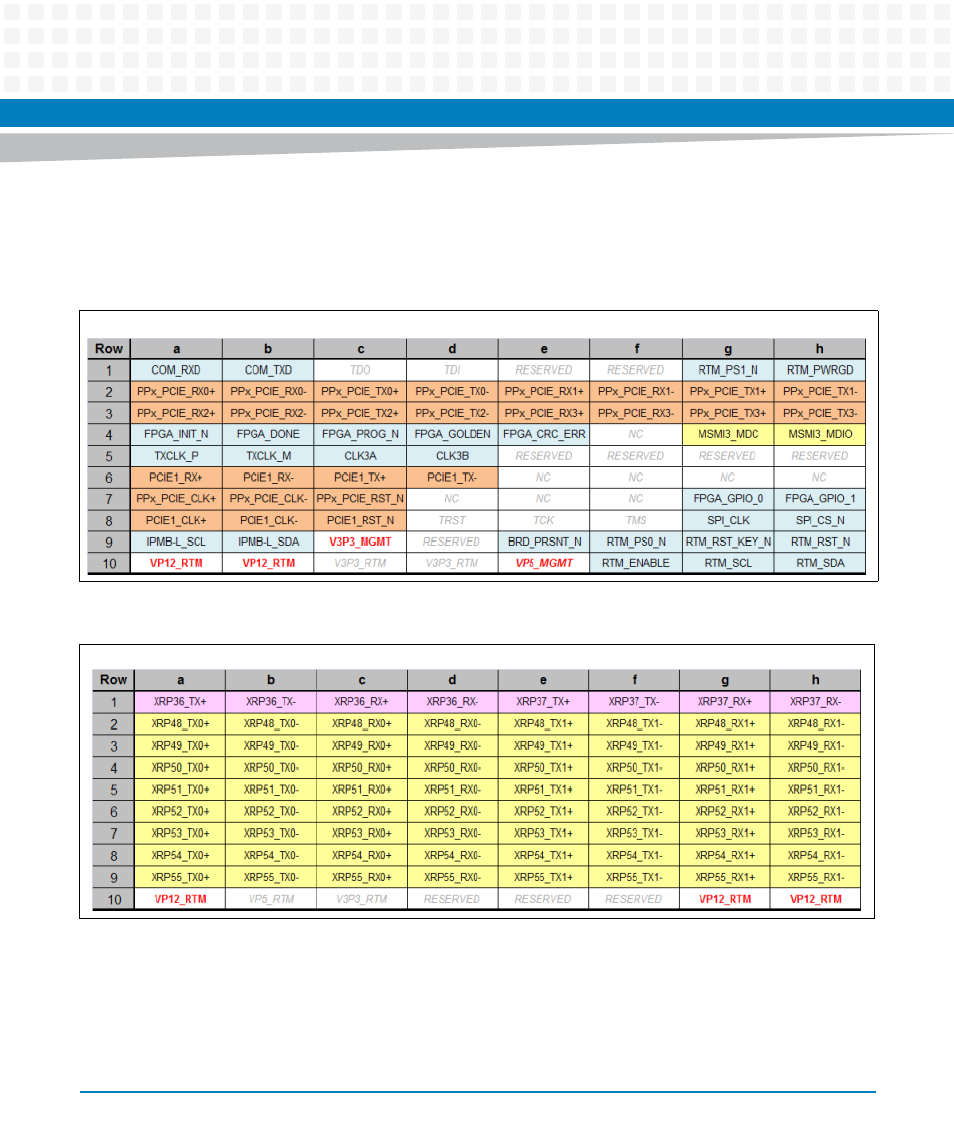

Table 2-14 Zone 3 Connector P30 Pin Assignments

Table 2-15 Zone 3 Connector P31 Pin Assignments
