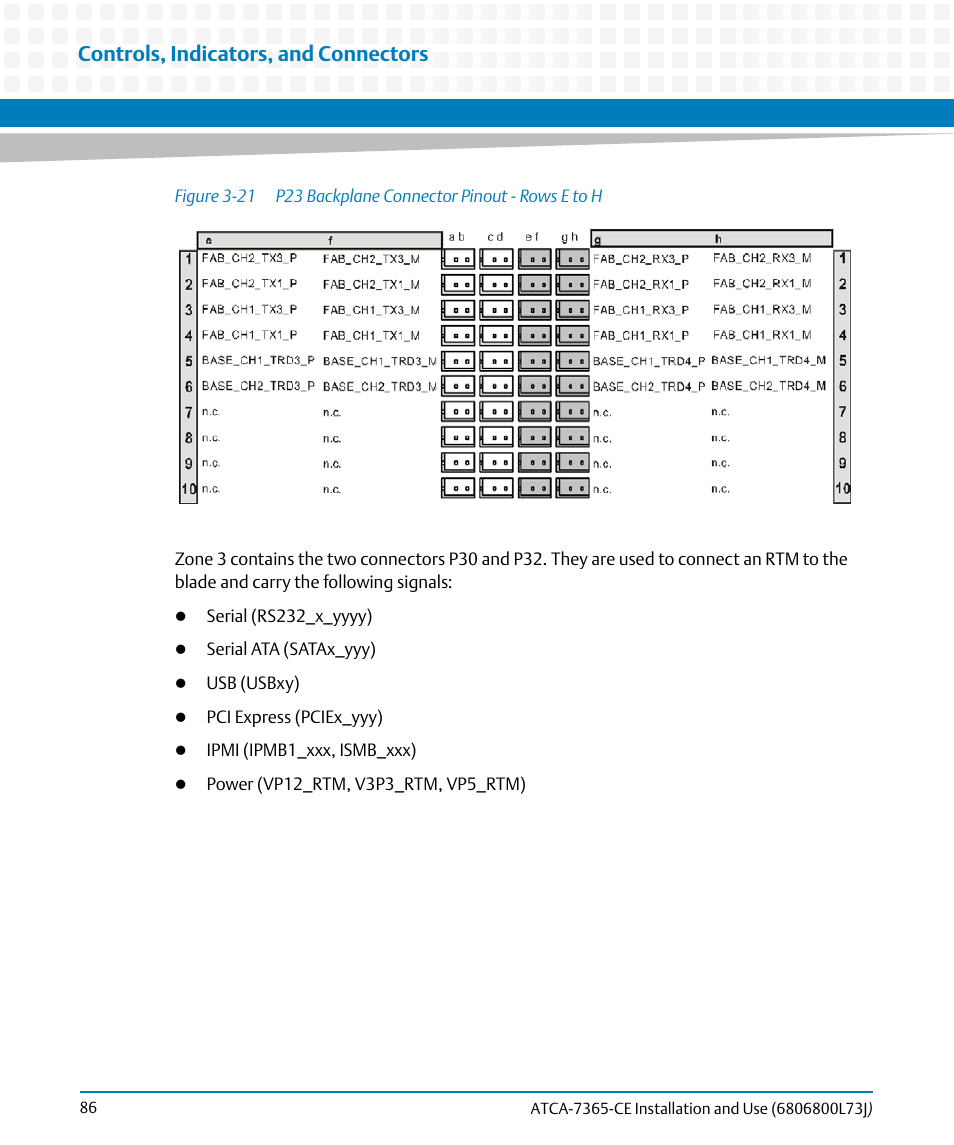

Figure 3-21, P23 backplane connector pinout - rows e to h, Controls, indicators, and connectors – Artesyn ATCA-7365-CE Installation and Use (May 2014) User Manual

Page 86

Text mode
Original mode

Figure 3-21, P23 backplane connector pinout - rows e to h, Controls, indicators, and connectors | Artesyn ATCA-7365-CE Installation and Use (May 2014) User Manual | Page 86 / 294
