Control Word
Reset Calendar Bit (bit [56])
In-Band Flow Control Bits (bits [55:40])
Second
0
16'b0010001000100010 (16'h2222)
Third
0
16'b0011001100110011 (16'h3333)
Fourth
0
16'b0100010001000100 (16'h4444)
For details of the control word format, refer to the Interlaken Protocol Specification, Revision 1.2.
The 100G Interlaken IP Core supports
itx_calendar
widths of 1, 2, 4, 8, and 16 16-bit calendar pages.
You configure the width in the 100G Interlaken IP Core parameter editor.
By convention, in a standard case, each calendar bit corresponds to a single data channel. However, the
100G Interlaken IP Core assumes no default usage. You must map the calendar bits to channels or link
status according to your specific application needs. For example, if your design has 64 physical channels,
but only 16 priority groups, you can use a single calendar page and map each calendar bit to four physical
channels. As another example, for a different application, you can use additional calendar bits to pass
quality-of-service related information to the Interlaken link partner.
If your application flow-controls a channel, you are responsible for dropping the relevant packet. Altera
supports the transfer of the
itx_calendar
values you provide without examining the data that is affected
by in-band flow control of the Interlaken link.
Related Information
•
100G Interlaken IP Core Back-Pressured Packet Transfer Example
Example of in-band calendar bits usage on the TX user data transfer interface.
•
100G Interlaken IP Core Transmit Path Blocks

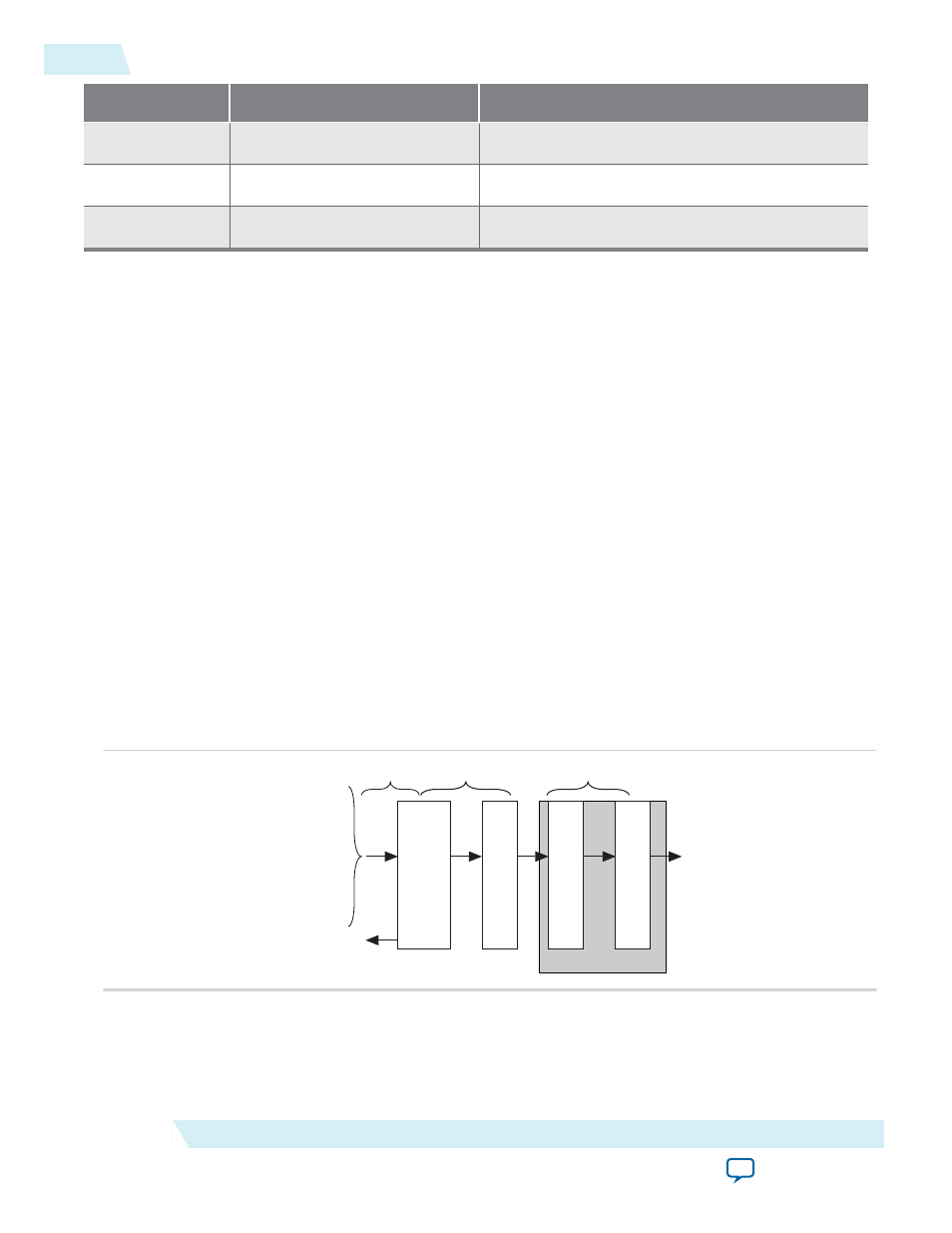

Figure 4-9: 100G Interlaken IP Core Transmit Path
itx_chan[7:0]
itx_num_valid[7:0]
itx_sob[1:0]
itx_eob
itx_sop[1:0]
itx_eopbits[3:0]
itx_din_words[511:0]
itx_calendar[16 x n - 1:0]
Transceiver Blocks
TX
PCS
TX
PMA
TX
MAC
TX
Transmit
Buffer
tx_usr_clk
tx_mac_clk
clk_tx_common
tx_pin[m - 1:0]
itx_ready
The 100G Interlaken IP core transmit data path has the following four main functional blocks:
100G Interlaken IP Core TX Transmit Buffer
on page 4-19
4-18
100G Interlaken IP Core Transmit Path Blocks
UG-01128
2015.05.04
Altera Corporation
Functional Description
