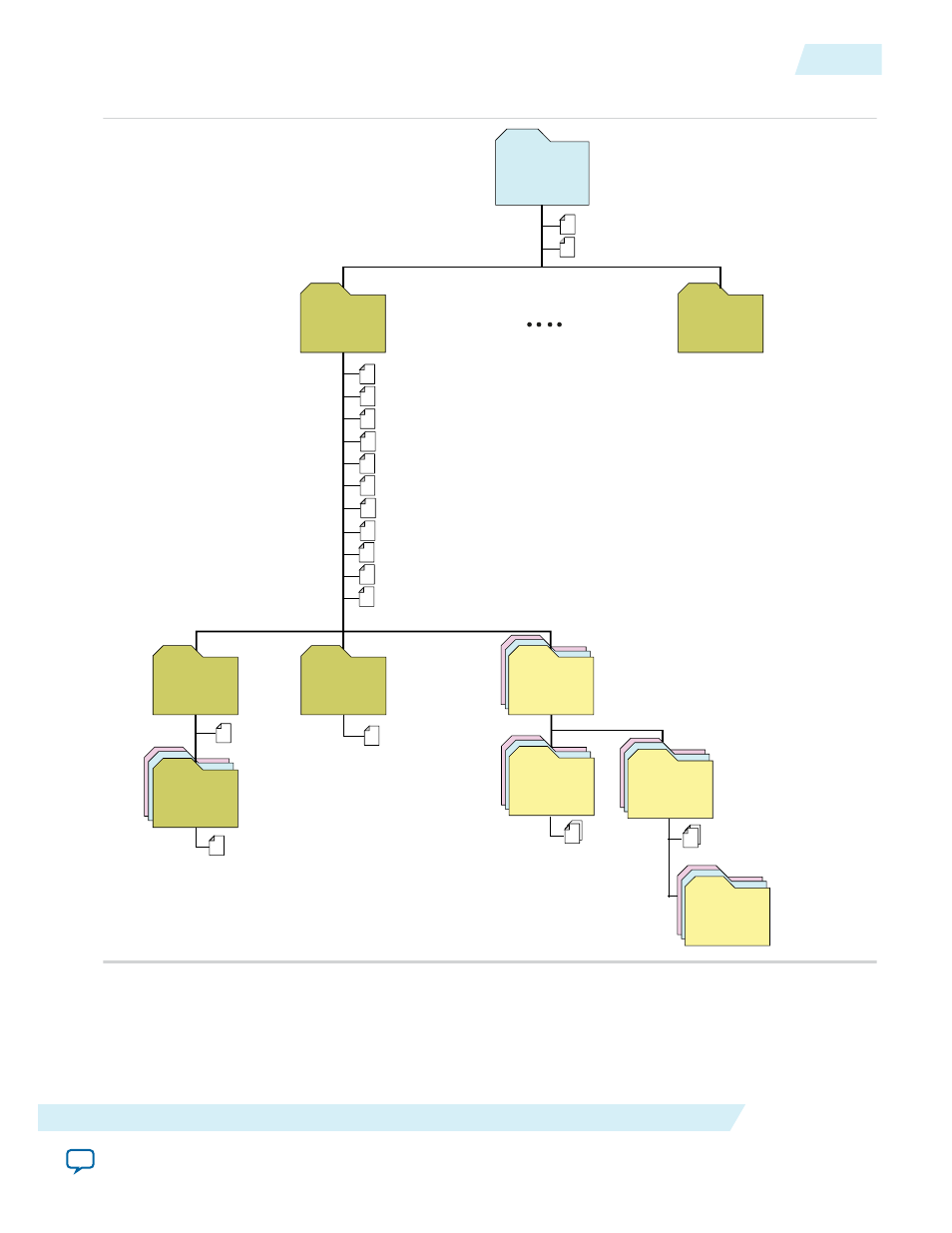

Figure 2-3: IP Core Generated Files
<your_ip >.cmp - VHDL component declaration file
<your_ip >.ppf - XML I/O pin information file
<your_ip >.qip - Lists IP synthesis files
<your_ip >.sip - Lists files for simulation
<your_ip >.v or .vhd
Top-level IP synthesis file
<your_ip >.v or .vhd
Top-level simulation file
<simulator_setup_scripts
>
<your_ip >.qsys - System or IP integration file
<your_ip >_bb.v - Verilog HDL black box EDA synthesis file
<your_ip >_inst.v or .vhd - Sample instantiation template
<your_ip >_generation.rpt - IP generation report
<your_ip >.debuginfo - Contains post-generation information
<your_ip >.html - Connection and memory map data
<your_ip >.bsf - Block symbol schematic
<your_ip >.spd - Combines individual simulation scripts
<your_ip >.sopcinfo - Software tool-chain integration file
IP variation files
sim
Simulation files
synth
IP synthesis files
Simulator scripts
ilk_core_
Subcore libraries
sim
Subcore
Simulation files
synth
Subcore
synthesis files
<HDL files >
<HDL files >
IP variation files
testbench
Testbench files
If you select the Verilog HDL for synthesis and simulation models, the demonstration testbench and
example design files are located in
/ilk_core_
/sim/testbench
.
.
