High Level Block Diagram

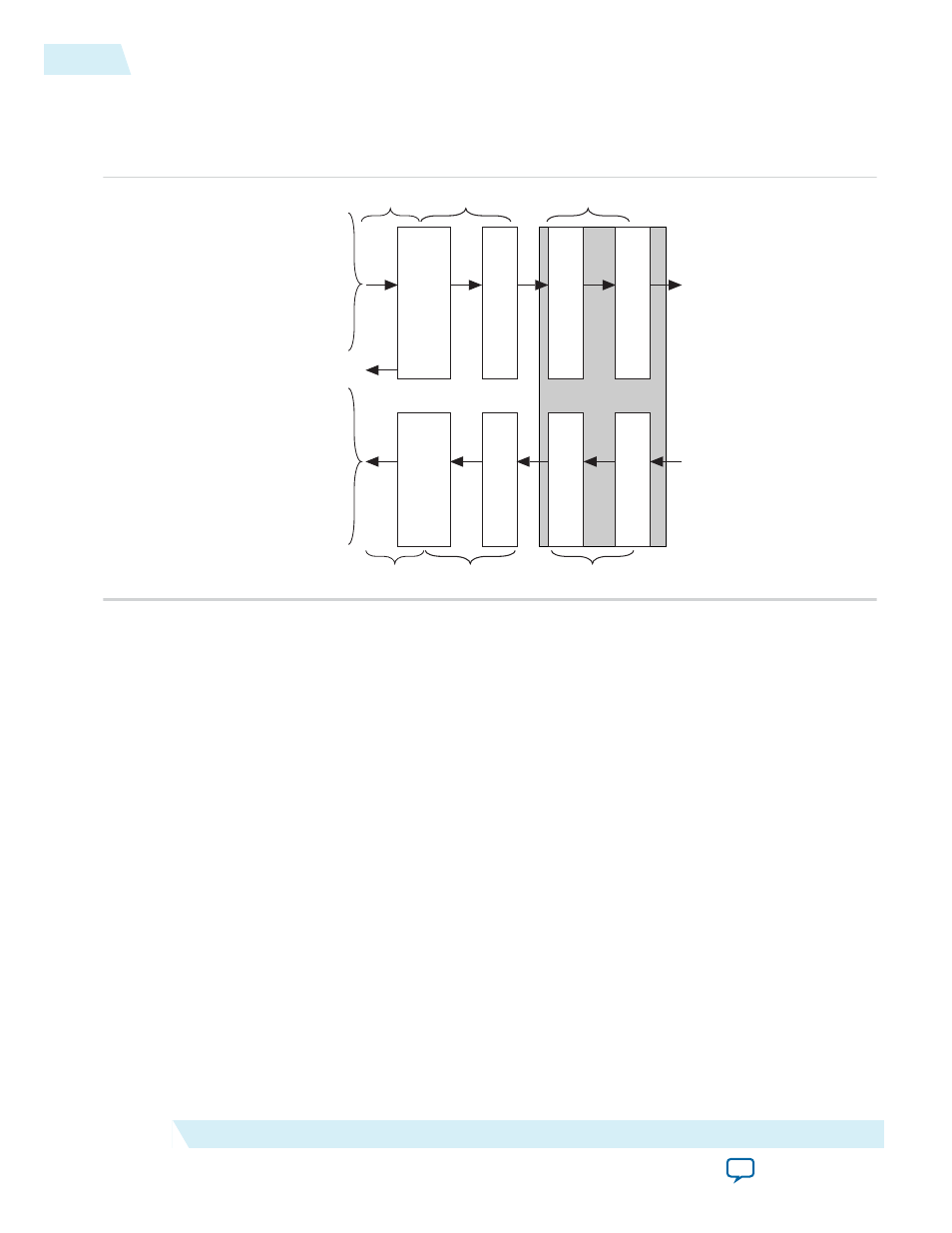

Figure 4-1: 100G Interlaken Block Diagram
irx_chan[7:0]
irx_num_valid[7:0]
irx_sob[1:0]
irx_eob
irx_sop[1:0]
irx_eopbits[3:0]
irx_dout_words[511:0]
irx_calendar[16 x n - 1:0]
irx_err
itx_chan[7:0]
itx_num_valid[7:0]
itx_sob[1:0]
itx_eob
itx_sop[1:0]
itx_eopbits[3:0]
itx_din_words[511:0]
itx_calendar[16 x n - 1:0]
Transceiver Blocks
TX
PCS
TX
PMA
TX
MAC
TX
Transmit
Buffer
tx_usr_clk tx_mac_clk clk_tx_common
clk_rx_common rx_mac_clk rx_usr_clk
RX
PCS
RX
PMA
RX
MAC
RX
Regroup
tx_pin[m - 1:0]
rx_pin[m - 1:0]
itx_ready
The 100G Interlaken MegaCore function consists of two paths: an Interlaken TX path and an Interlaken
RX path. Each path includes MAC, PCS, and PMA blocks. The PCS blocks are implemented in hard IP.
Related Information
• 100G Interlaken IP Core Transmit Path Blocks on page 4-18
For more information about the Interlaken TX path.
• 100G Interlaken IP Core Receive Path Blocks on page 4-27
For more information about the Interlaken RX path.
Clocking and Reset Structure for IP Core
The following topics describe the clocking and reset structure of the 100G Interlaken IP core:
100G Interlaken IP Core Clock Signals on page 4-5
IP Core Reset on page 4-5
IP Core Reset Sequence with the Reconfiguration Controller on page 4-7
