Clock compensation, Lane polarity and order reversal, Lane polarity – Altera SerialLite II IP Core User Manual

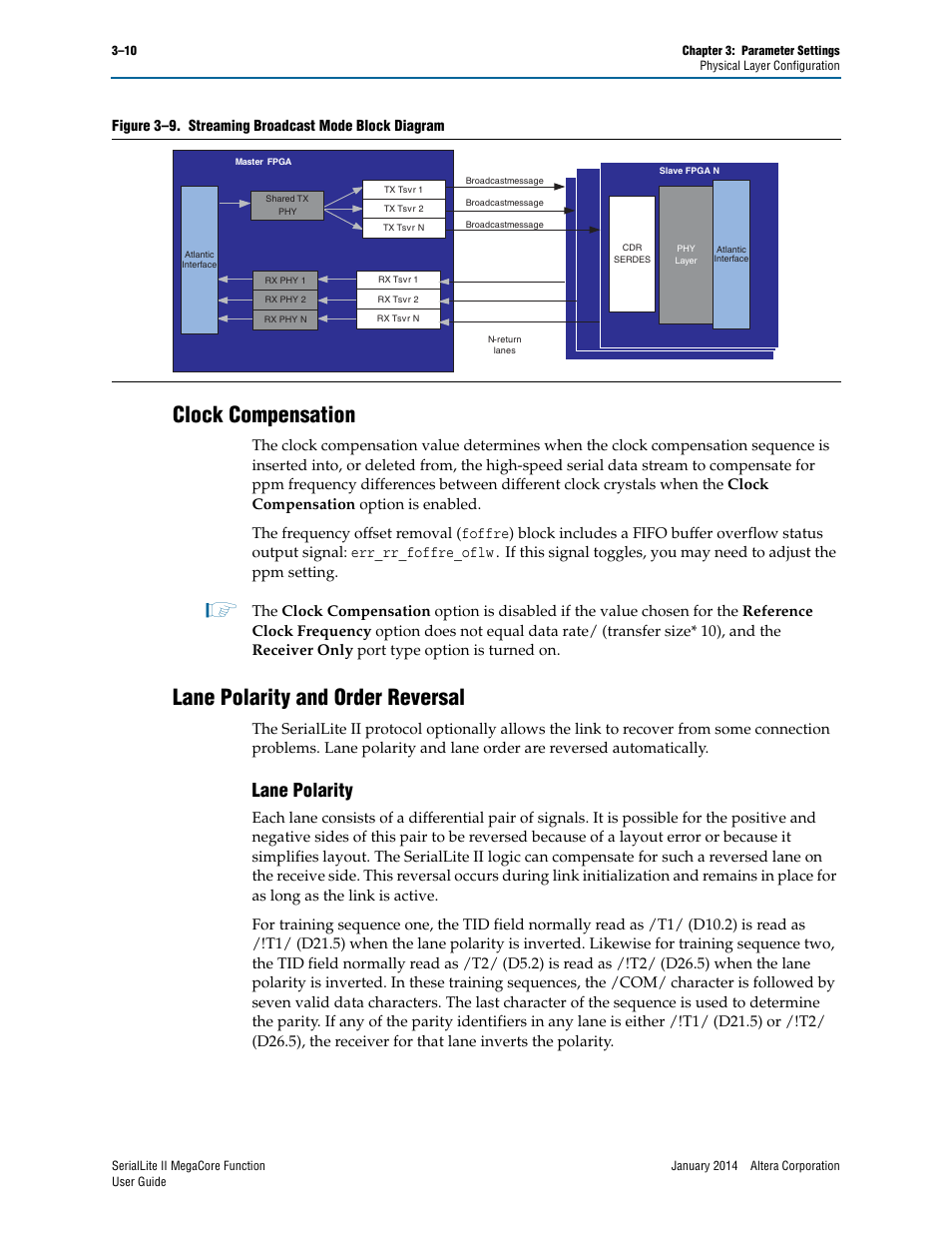

Page 33: Lane polarity –10, Figure 3–9
